Cargo Area - Wagon

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

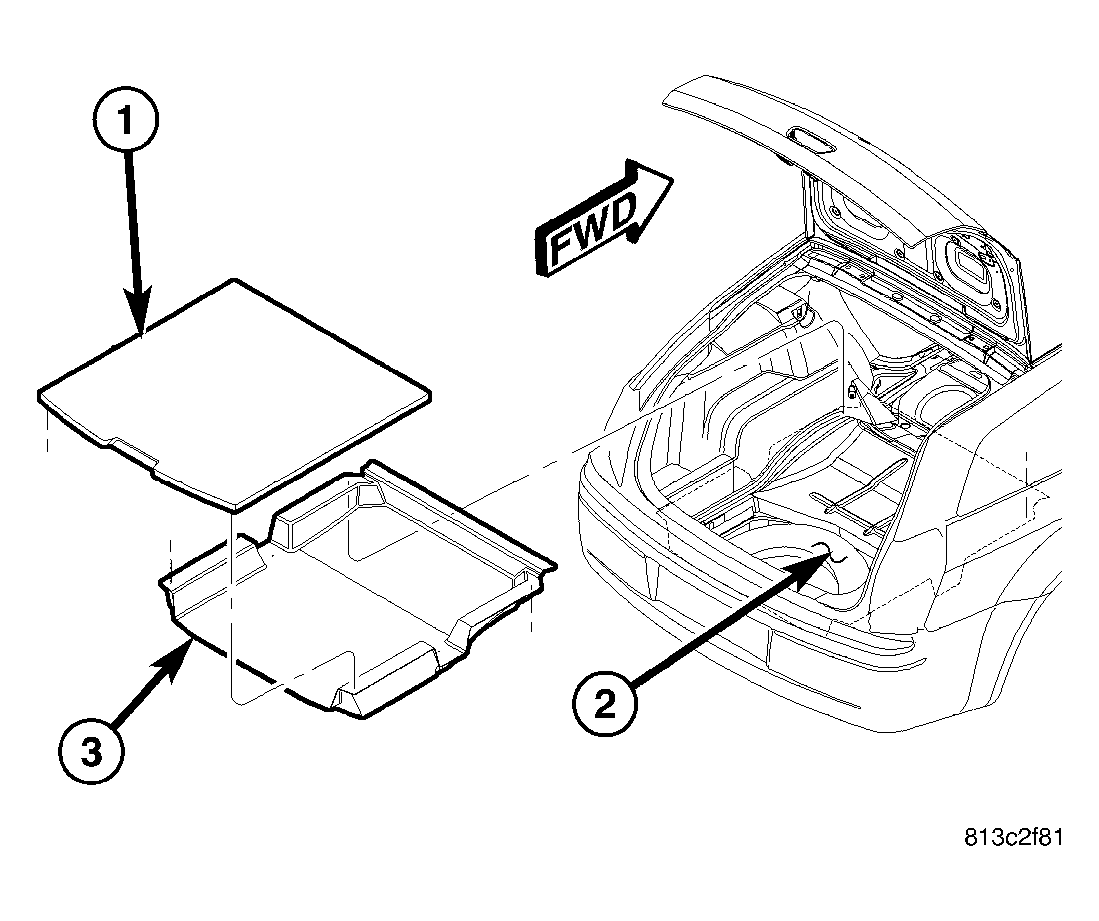

Fig 1: Spare Tire Cover/Cargo Compartment Carpet
GC0013508Courtesy of DAIMLERCHRYSLER CORP.
  1. If equipped, remove the cargo net from the rear cargo area.
  2. Fold and remove the cargo floor carpet (1) from the rear cargo area.
  3. If equipped, remove the cargo liner and/or the cargo organizer from the cargo compartment.
  4. Fold and remove the spare tire cover/cargo compartment carpet (3) from over the spare tire well (2).
