Section 23 (Body - Interior & Exterior): Interior: Bumper: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

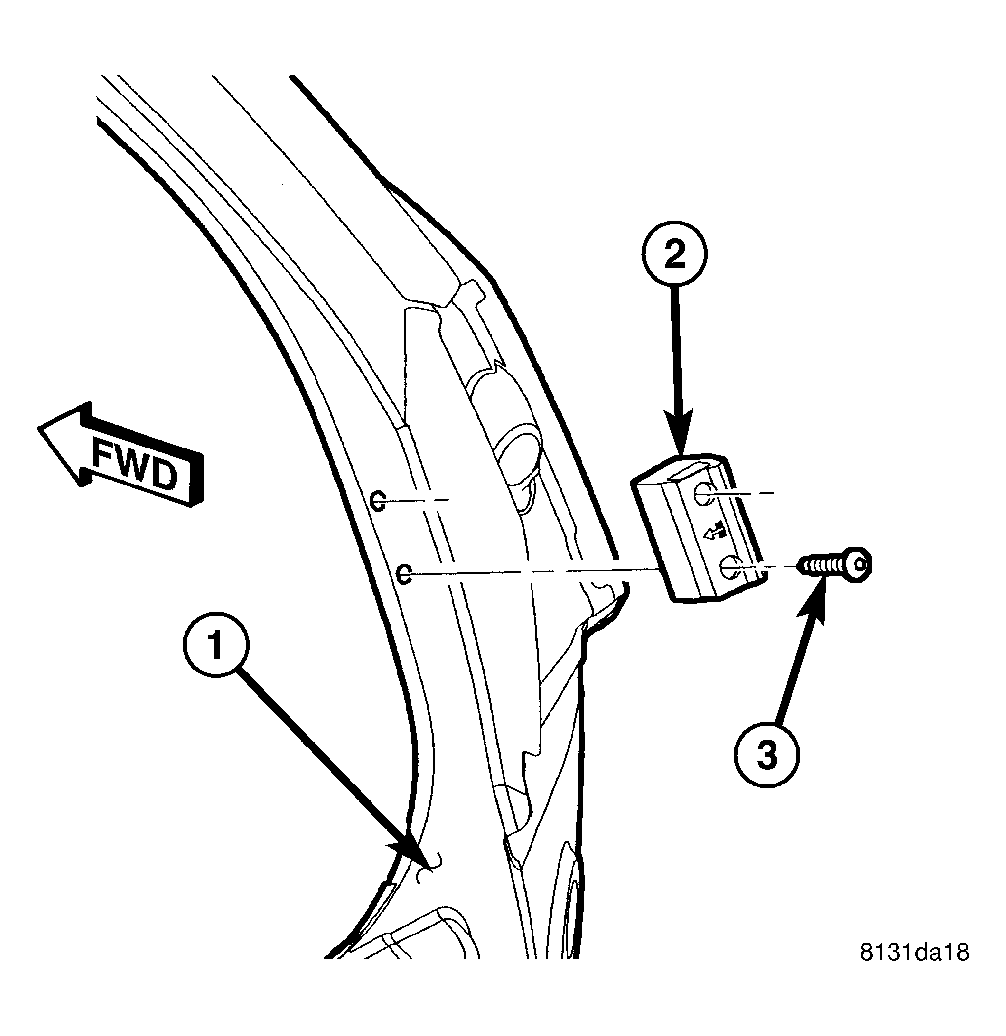

Fig 1: stabilizer bumper
GC0013528Courtesy of DAIMLERCHRYSLER CORP.
  1. Open the liftgate.
  2. Remove the two screws (3) that secure the stabilizer bumper (2) to the liftgate opening drain trough (1).
  3. Remove the bumper from the trough.
