B-Pillar Trim: Removal: Upper

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

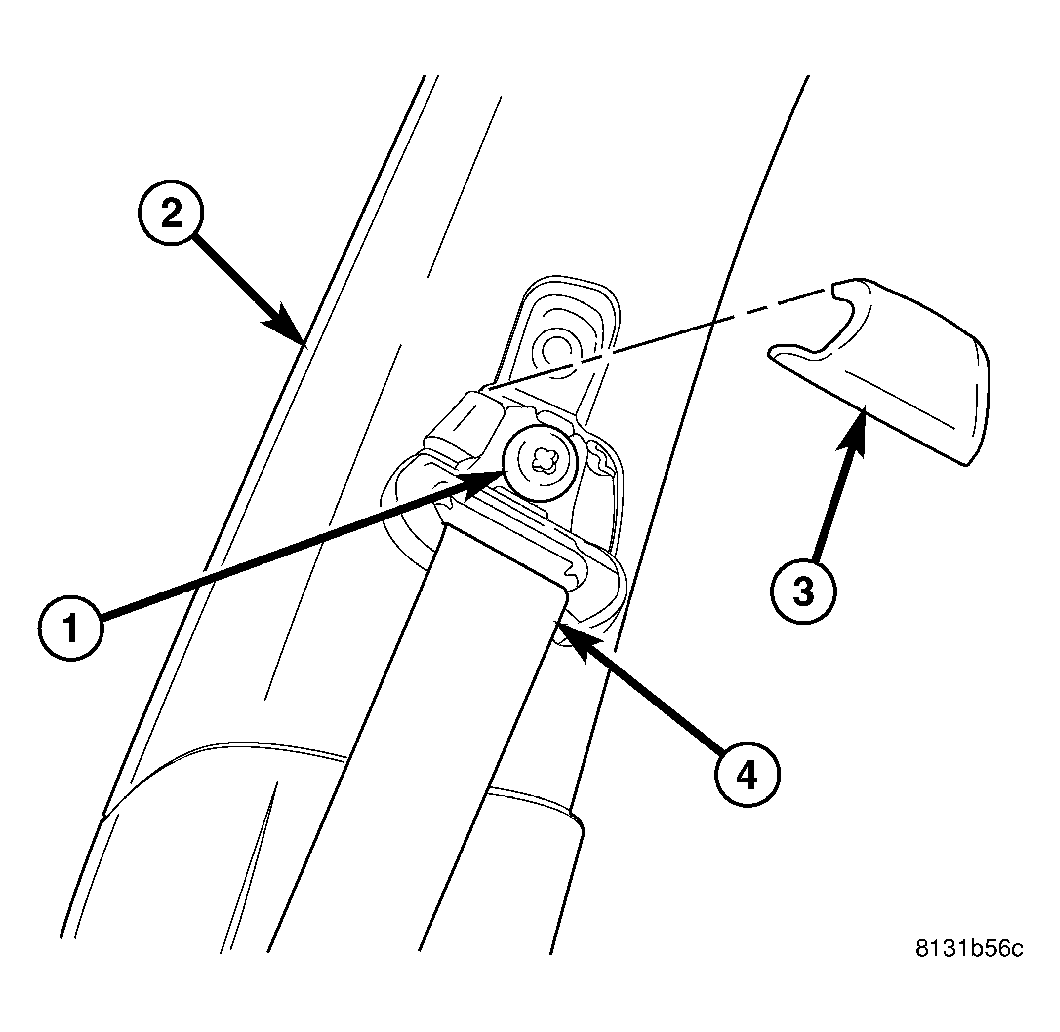

Fig 1: Trim Cover

Courtesy of DAIMLERCHRYSLER CORP.

Remove the lower trim from the inside of the B-pillar (2). (Refer to BODY/INTERIOR/B-PILLAR TRIM - REMOVAL) .
Unsnap and remove the trim cover (3) from the seat belt turning loop on the inside of the upper B-pillar.
Remove the screw (1) that secures the turning loop to the seat belt height adjuster on the upper B-pillar.
Lower the seat belt (4) and turning loop from the B-pillar.

Fig 2: B-Pillar Trim
Courtesy of DAIMLERCHRYSLER CORP.
Remove the screw (1) that secures the lower end of the upper trim (4) to the inside of the B-pillar (3).
Using a trim stick or another suitable wide flat-bladed tool, carefully pry the lower end of the upper B-pillar trim away from the inside of the B-pillar far enough to disengage the two spring clip retainers that secure the trim to the slots in the pillar.
Lift the lower end of the upper trim upward to disengage the locator tab (2) from the locator hole and remove the trim from the inside of the B-pillar.
