Driver Side

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

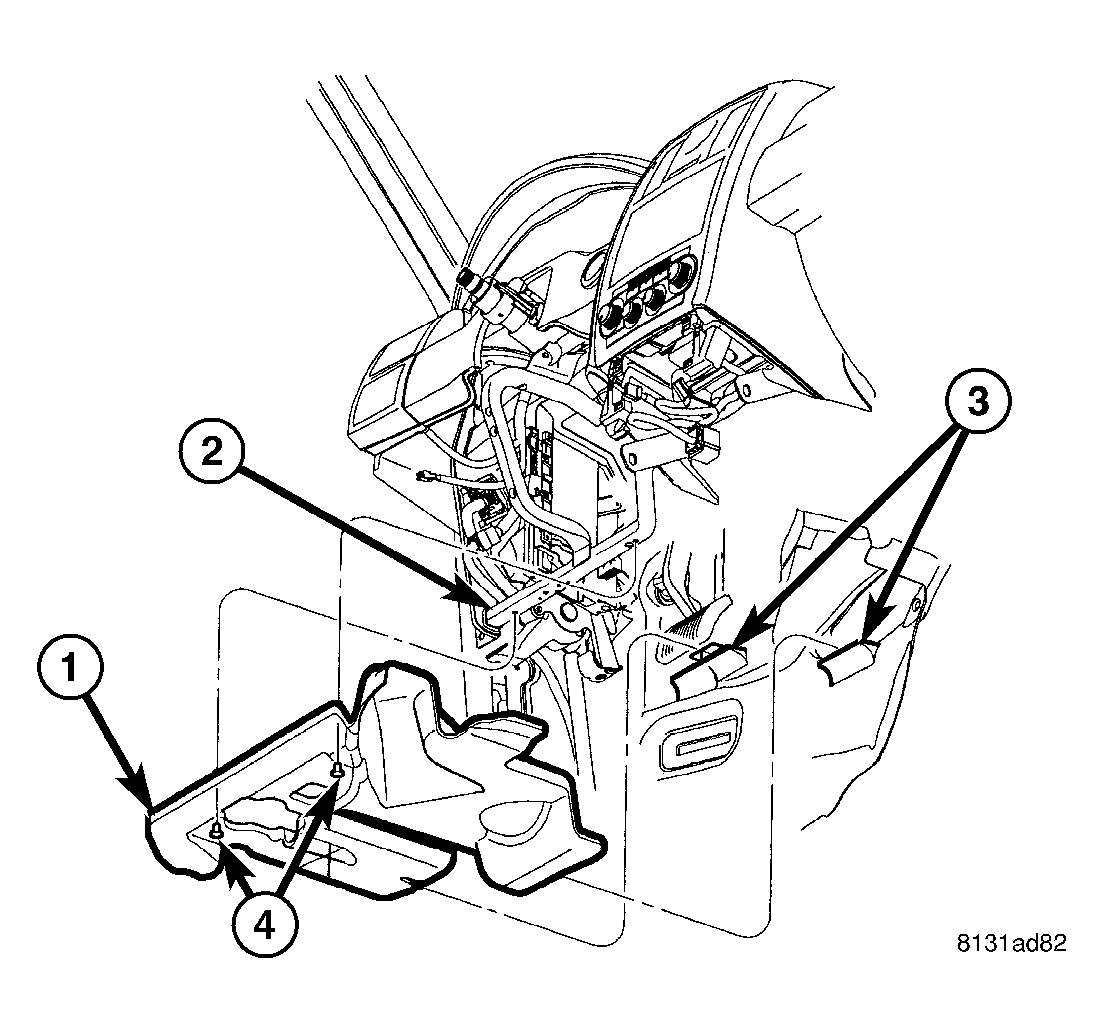

Fig 1: Left I/P Closeout Panel
GC0013492Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the two push-pins (4) that secure the instrument panel silencer (1) to the instrument panel bracket (2).
  2. Pull the instrument panel silencer rearward to disengage it from the brackets (3) located near the dash panel.
  3. Remove the instrument panel silencer from the vehicle.
