Section 23 (Body - Interior & Exterior): Hood: Rod-Prop: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

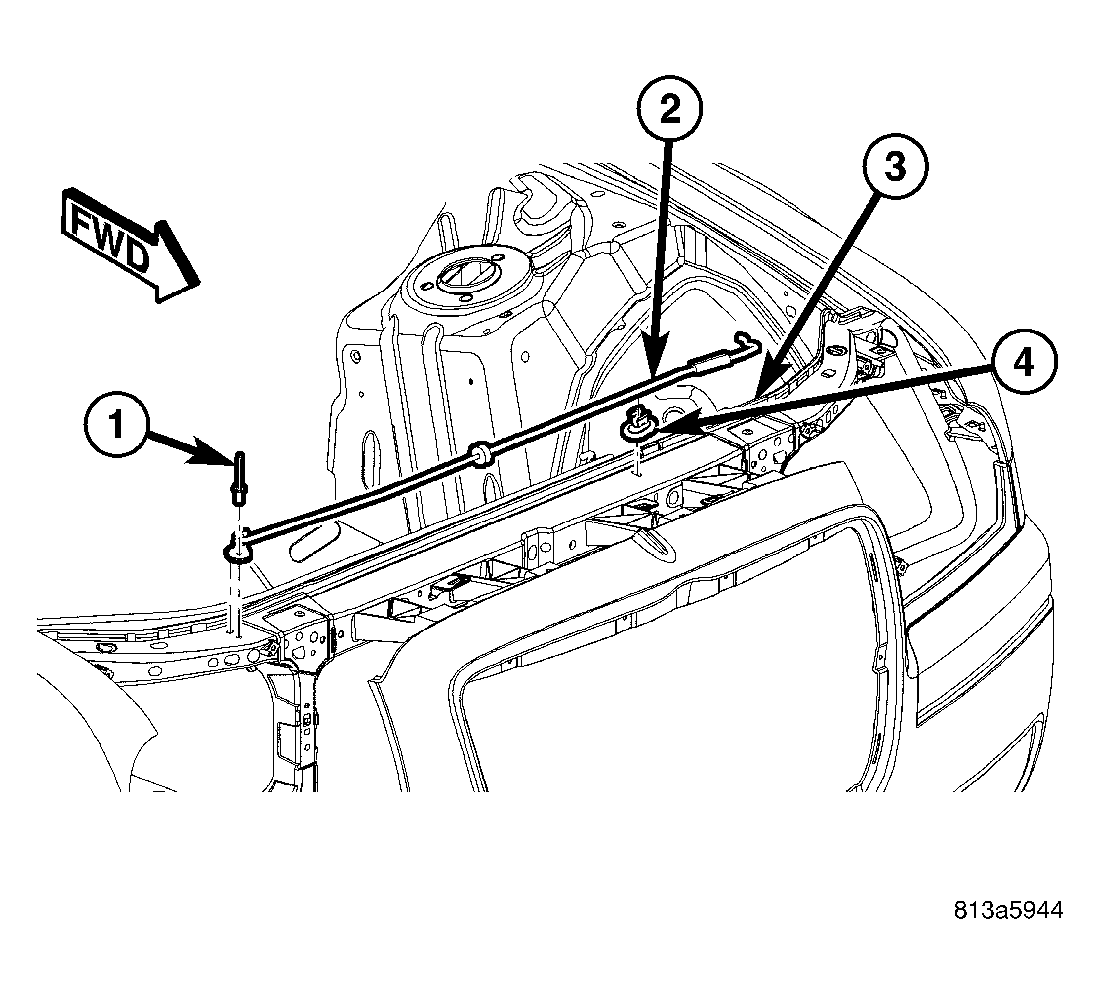

Fig 1: Prop Rod
GC0013455Courtesy of DAIMLERCHRYSLER CORP.
  1. Open and support the hood.
  2. Remove the blind rivet (1) that secures the hood prop rod (2) pivot bracket to the right side of the headlamp mounting crossmember (3).
  3. Disengage the prop rod from the rod clip (4) on the left side of the headlamp mounting crossmember.
  4. Remove the hood prop rod from the vehicle.
