Section 23 (Body - Interior & Exterior): Hood: Hinge: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

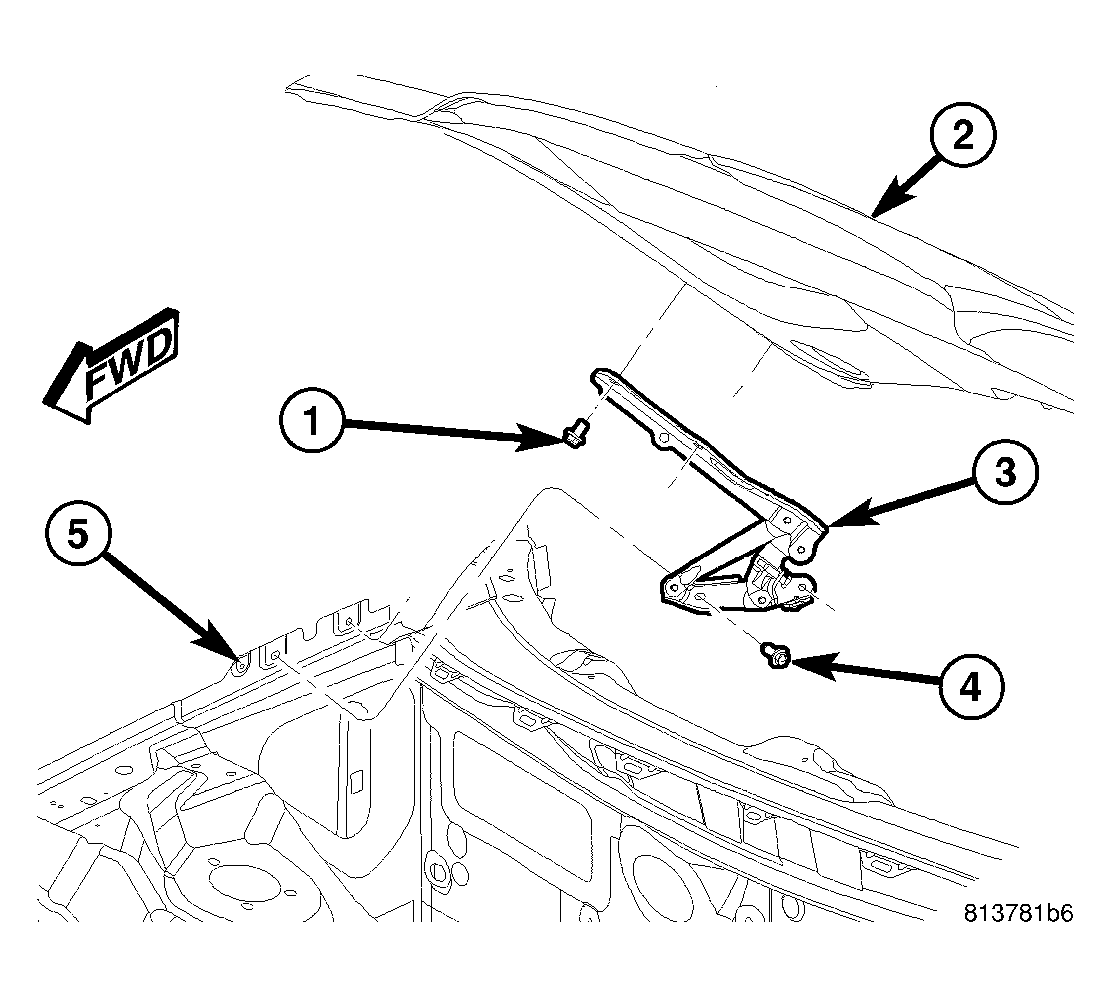

Fig 1: Hinge
GC0013448Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the lower bracket of the hood hinge (3) to the inside of the front fender ledge (5) on the vehicle.
  2. Install and tighten the two screws (4) that secure the hinge to the fender. Tighten the screws to 28 N.m (21 ft. lbs.).
  3. Position the hood panel (2) to the upper hinge bracket on the vehicle.
  4. Install and tighten the two screws (2) that secure the hinge to the hood. Tighten the screws to 28 N.m (21 ft. lbs.).
  5. If the vehicle is so equipped, reinstall the upper end of the gas support cylinder to the upper hinge bracket. (Refer to BODY/HOOD/SUPPORT CYLINDER - INSTALLATION) .
  6. Remove the fixture being used to support the hood for service and close the hood.
  7. Adjust the hood hinge position as necessary to achieve proper spacing and operation.
