Air Inlet- Fresh Air Duct: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: On SRT 8 models only.

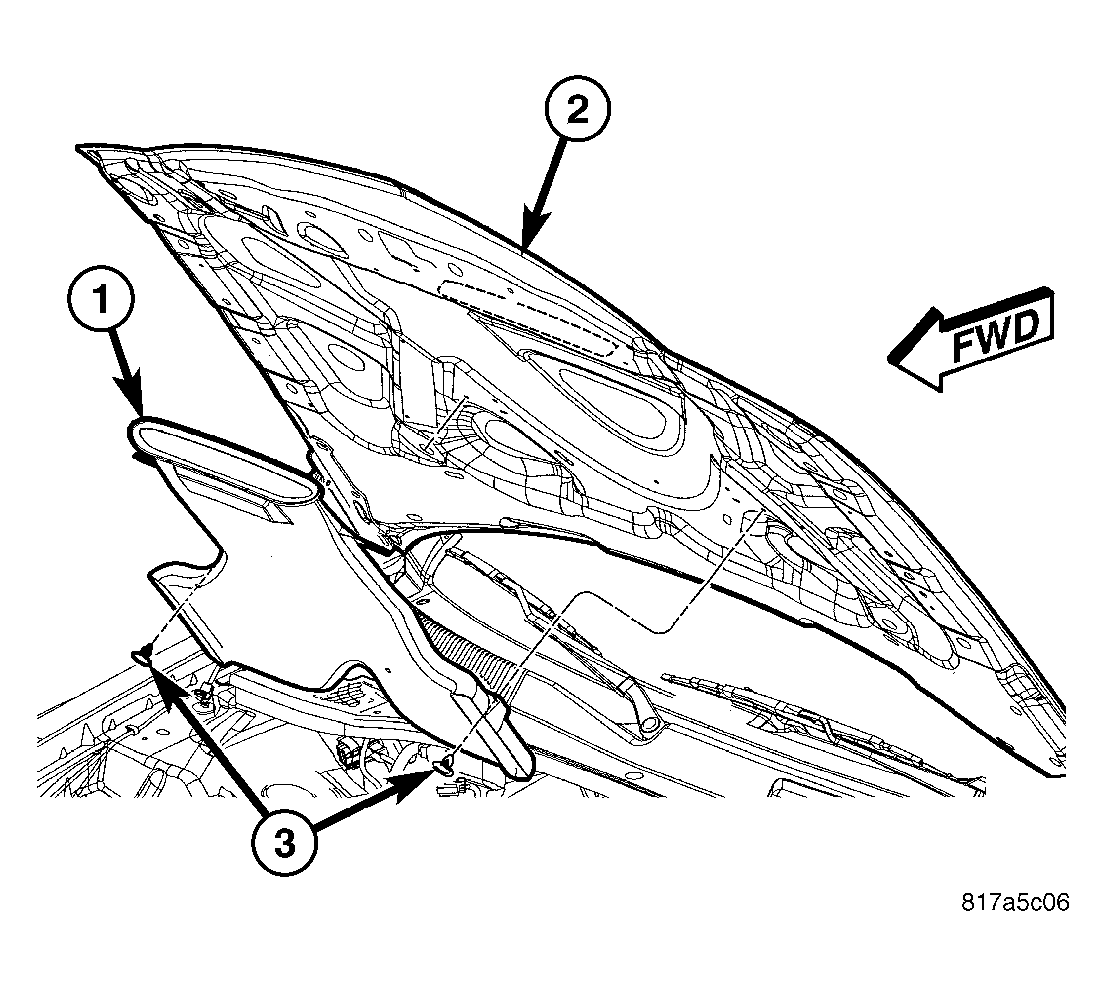

Fig 1: AIR INLET

Courtesy of DAIMLERCHRYSLER CORP.

Place air inlet (1) to hood (2).
Insert push pins (3) fastening air inlet to hood.
Install hood liner and push pins.
