Lock Cylinder: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

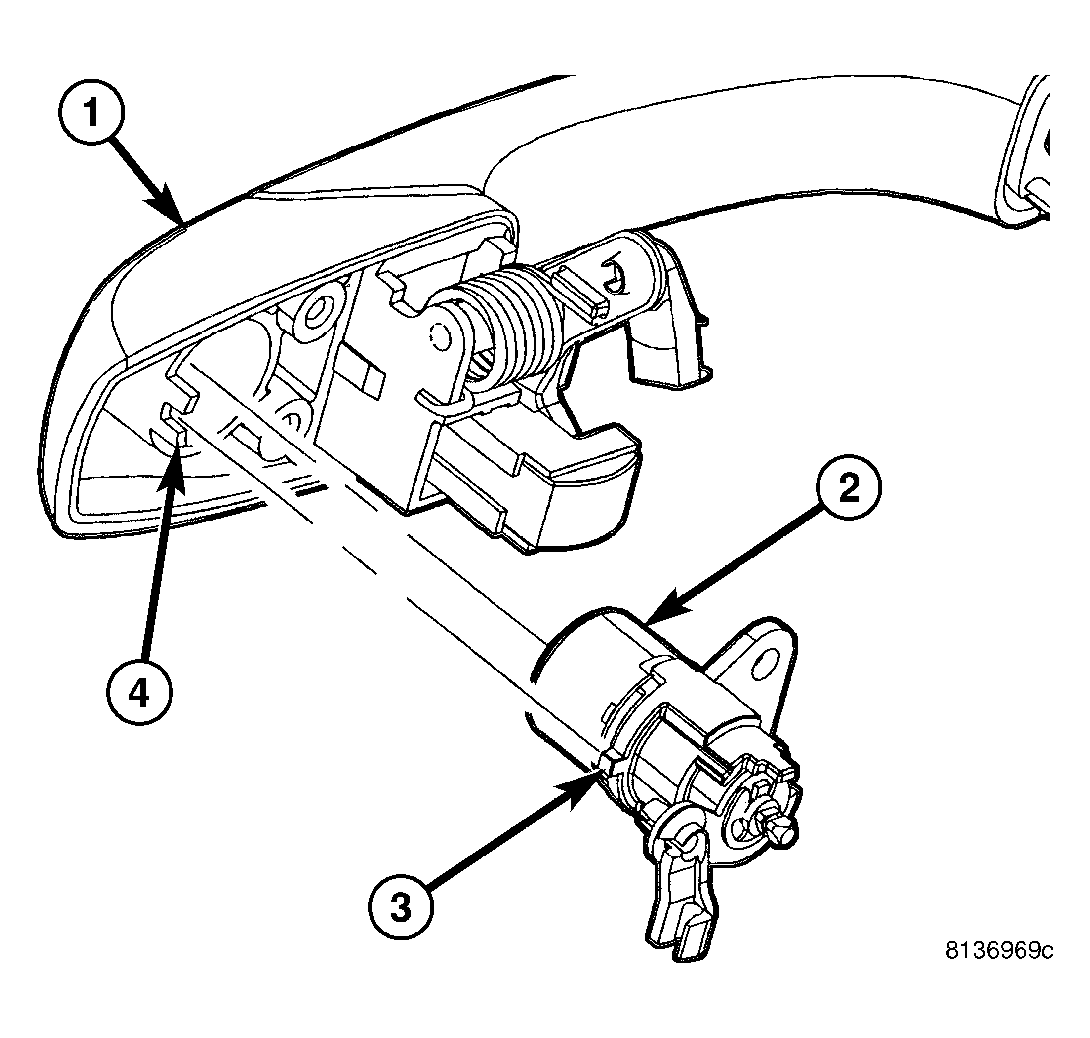

Fig 1: Door Lock Cylinder
GC0013378Courtesy of DAIMLERCHRYSLER CORP.
NOTE: A door lock cylinder is used only on the driver side front door exterior handle.
  1. Remove the handle (1) from the outside of the driver side front door. (Refer to BODY/DOOR - FRONT/EXTERIOR HANDLE - REMOVAL) .
  2. Using hand pressure, push on the face of the lock cylinder (2) until it pops out of the cavity in the back of the door handle.
