Front Door: Glass: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Glass Clamp Screws

Courtesy of DAIMLERCHRYSLER CORP.

Remove the trim panel from the inside of the front door. (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL) .
Remove the speaker from the inside of the front door. (Refer to ELECTRICAL/AUDIO/SPEAKER - REMOVAL) .
Remove the inner belt weatherstrip from the front door.
Remove the watershield from the inside of the front door. (Refer to BODY/DOOR - FRONT/WATERSHIELD - REMOVAL) .
Using the regulator, adjust the front door glass (1) position up or down as required for access to the two window regulator glass clamps (3).
Loosen the screw (3) in each of the glass clamps far enough to release the glass.

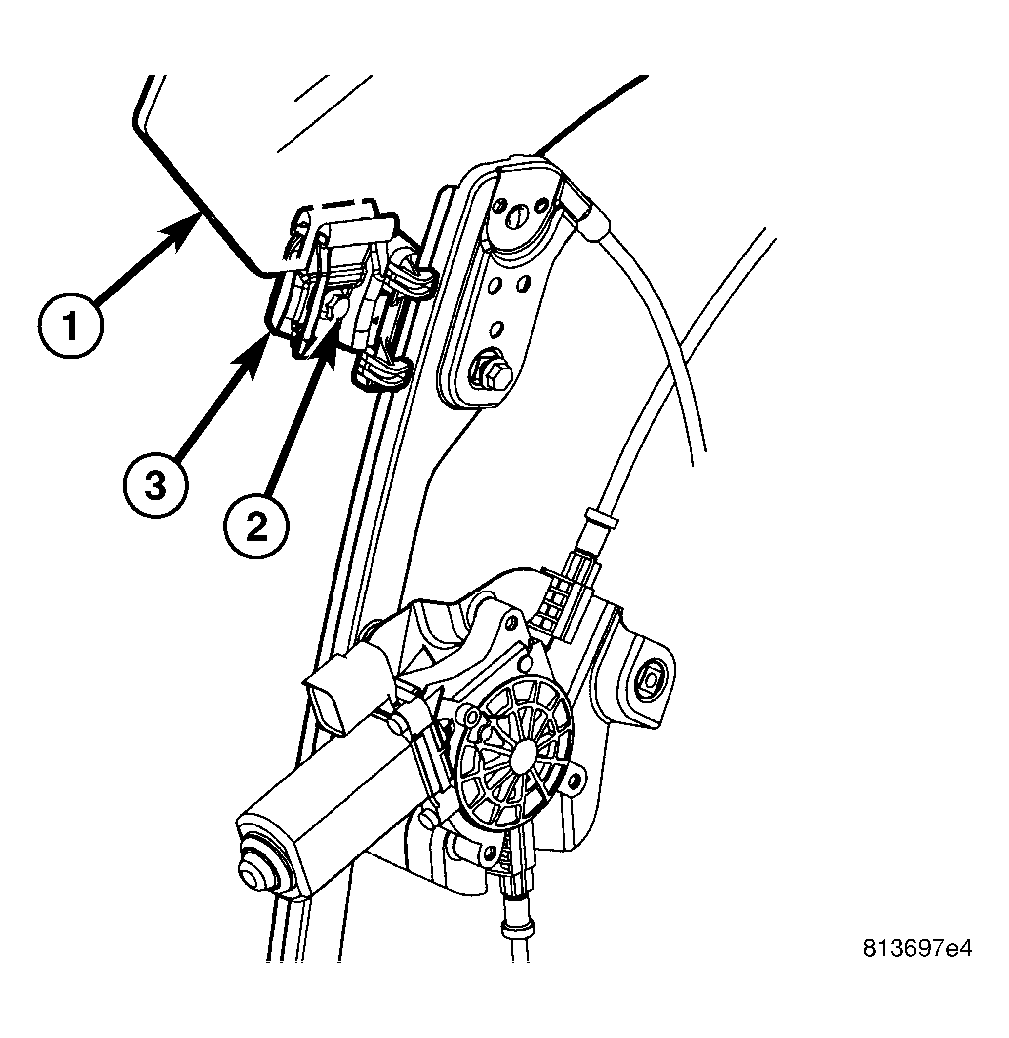

Fig 2: Window Regulator Glass Clamps
Courtesy of DAIMLERCHRYSLER CORP.
From the outside of the front door, lift the glass (1) upward far enough to disengage it from the two glass clamps (2).
Lift the rear side of the glass upward and out from the top of the door shell first to unload the glass from the door.
