Section 23 (Body - Interior & Exterior): Exterior: Spoiler: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

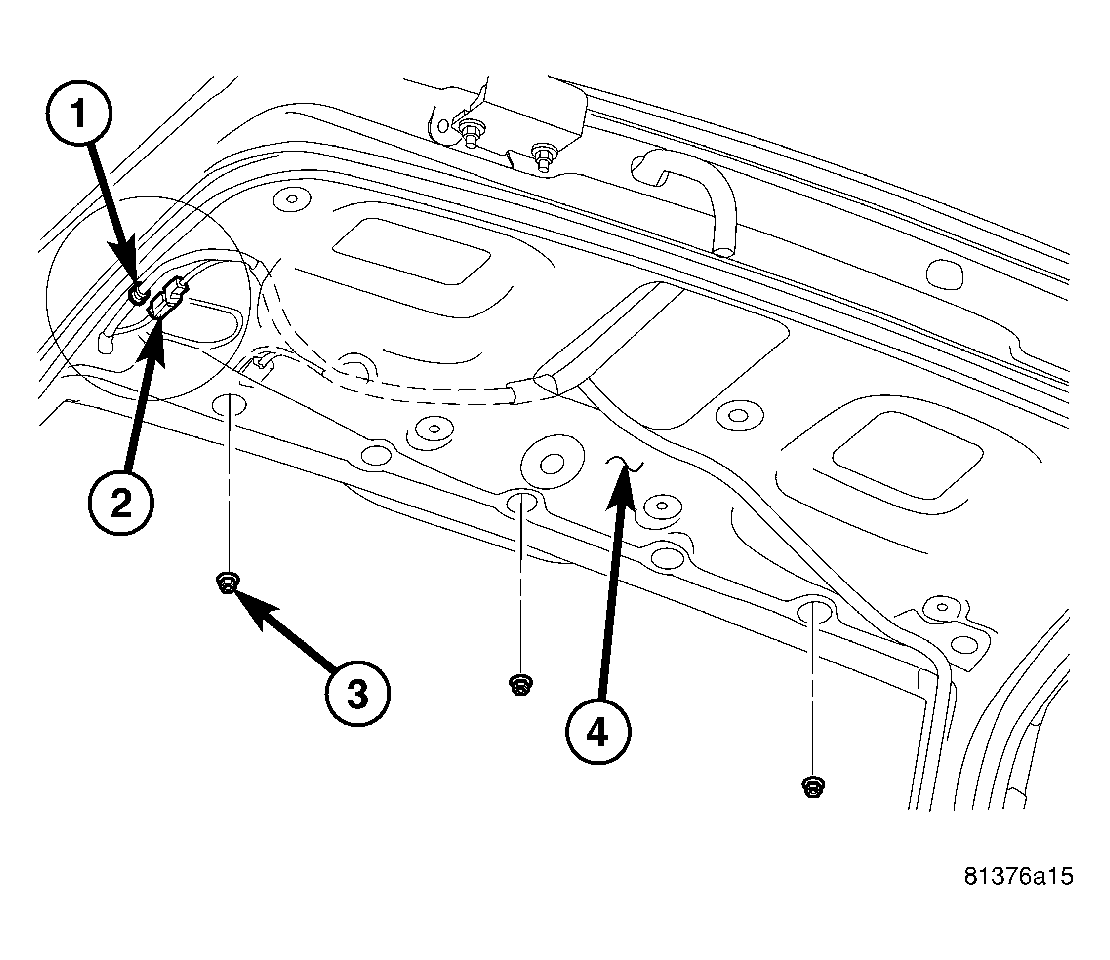

Fig 1: Spoiler Attachment
GC0013440Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the lift gate upper trim panel (Refer to BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/TRIM PANEL - REMOVAL) .
  3. Disconnect the rear washer fluid supply hose (1).
  4. Disconnect the CHMSL wire harness connector (2).
  5. Remove the nuts (3) that secure the rear spoiler to the liftgate (4).
    Fig 2: Spoiler R-N-I
    GC0013441Courtesy of DAIMLERCHRYSLER CORP.
  6. Partially remove the rear spoiler (1) from the liftgate to access the wire harness and washer fluid supply hose (2).
  7. Remove the rubber grommet from the right top of the lift gate and route the wire harness and washer supply hose through the opening in the liftgate.
  8. Remove rear spoiler from the vehicle.
