Mirror-Side View: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Upper Door Trim
GC0013442Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the trim panel from the inside of the front door (Refer to BODY/DOOR - FRONT/PANEL-TRIM - REMOVAL) .
  3. Remove the two push pins (2) that secure the window trim molding (1) to the front door.
  4. Remove the window trim molding to gain access to the mirror fasteners.

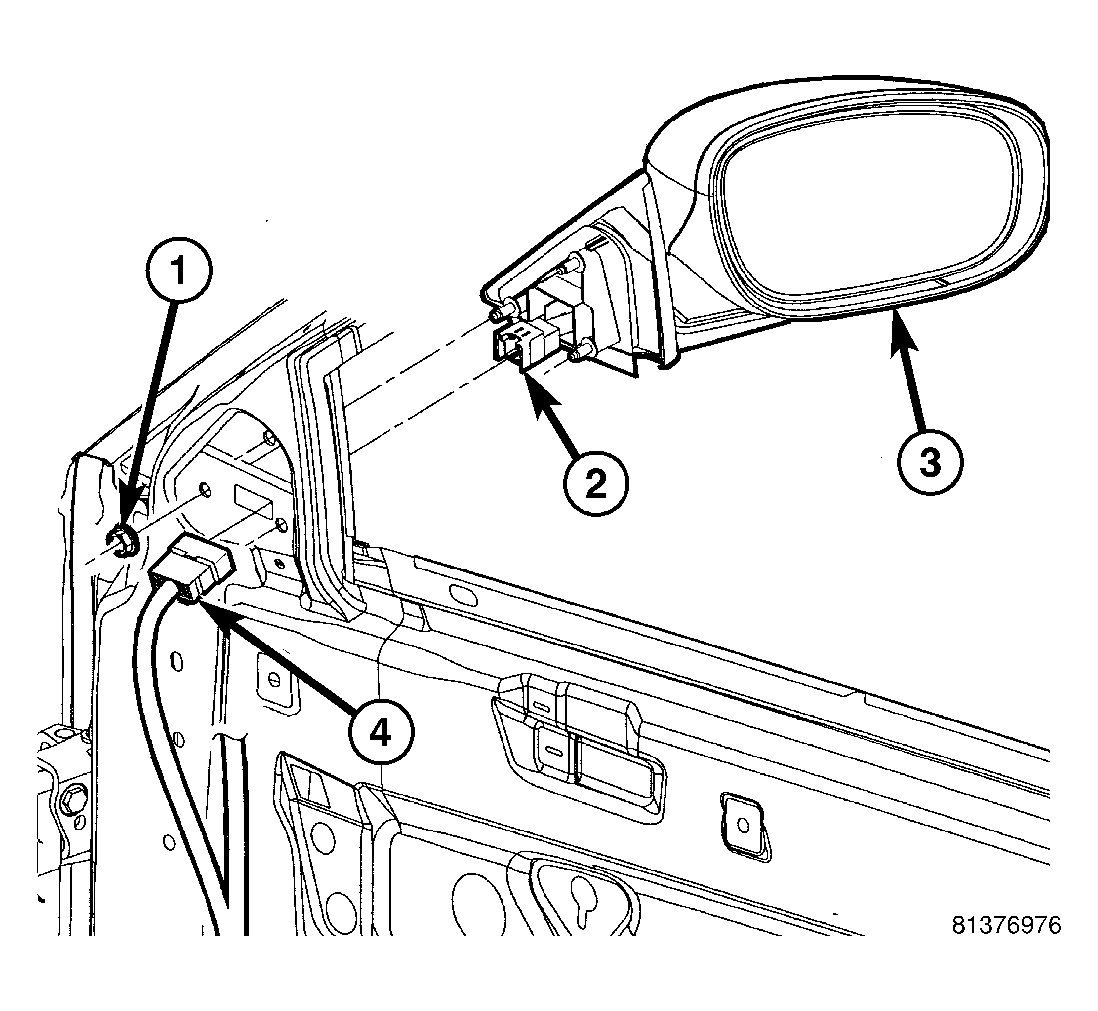

    Fig 2: Outside Mirror
    GC0013443Courtesy of DAIMLERCHRYSLER CORP.
  5. Disconnect the door wire harness connector (4) from the mirror electrical connector (2).
  6. Remove the three nuts (1) that secure the outside rearview mirror (3) to the front door.
  7. Remove the outside rearview mirror from the front door.
