Section 23 (Body - Interior & Exterior): Exterior: Grille: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

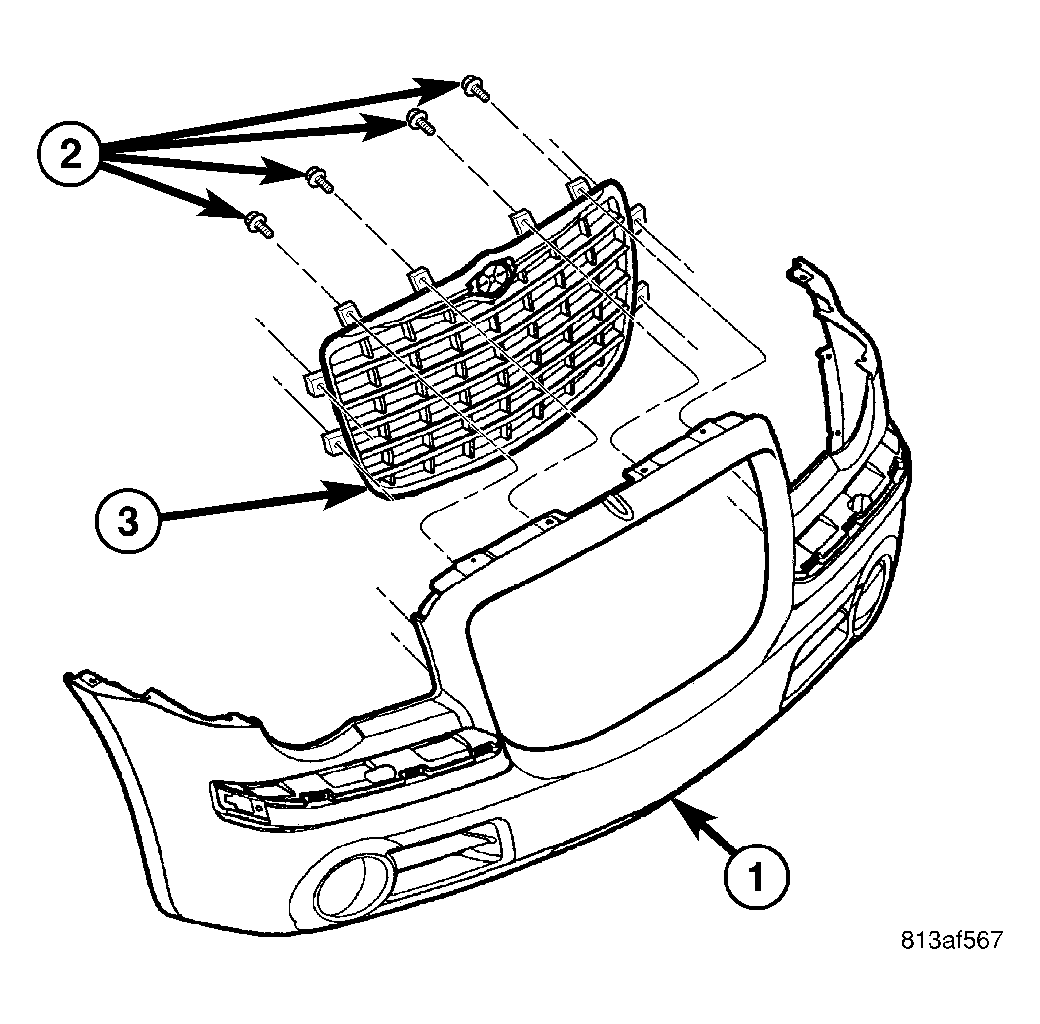

Fig 1: Grille R and I
GC0013424Courtesy of DAIMLERCHRYSLER CORP.
NOTE: Take the proper precautions to protect the face of the front fascia from cosmetic damage.
  1. Remove the front fascia (1) and place it on a workbench (Refer to FRAME & BUMPERS/BUMPERS/FRONT FASCIA - REMOVAL) .
  2. Remove the screws (2) that secure the grille (3) to the inside of the front fascia.
  3. Remove the grille from the front fascia.
