Cowl Extension Trim: Removal
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

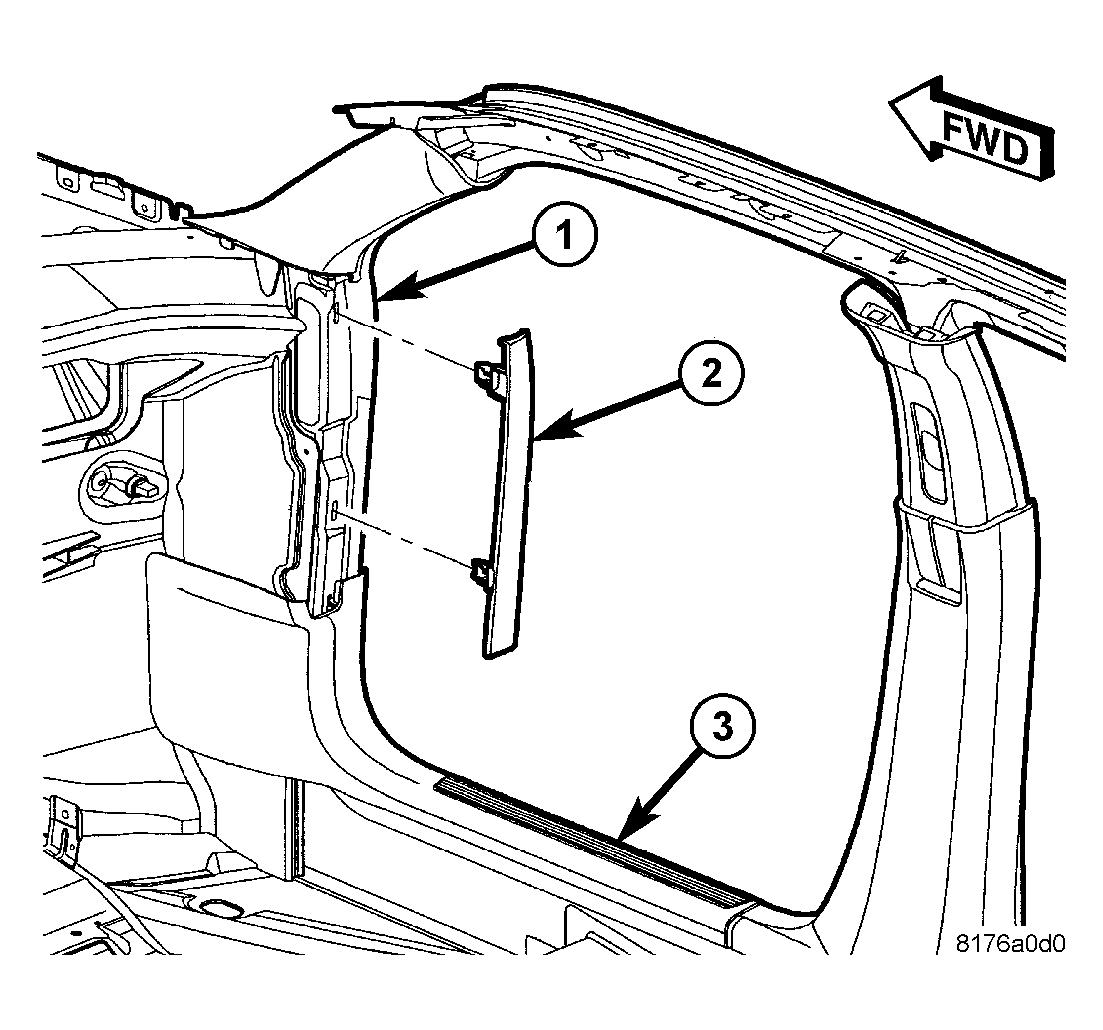

- Insert special tool C-4755 (from the outside in the direction of arrow 2) under the middle of the trim extension (2).
- Slide trim stick up to the upper spring clip retainer, and pry to disengage clip.
- Slide the trim stick down to the lower spring clip retainer, and pry to disengage clip.
