Support Cylinder: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

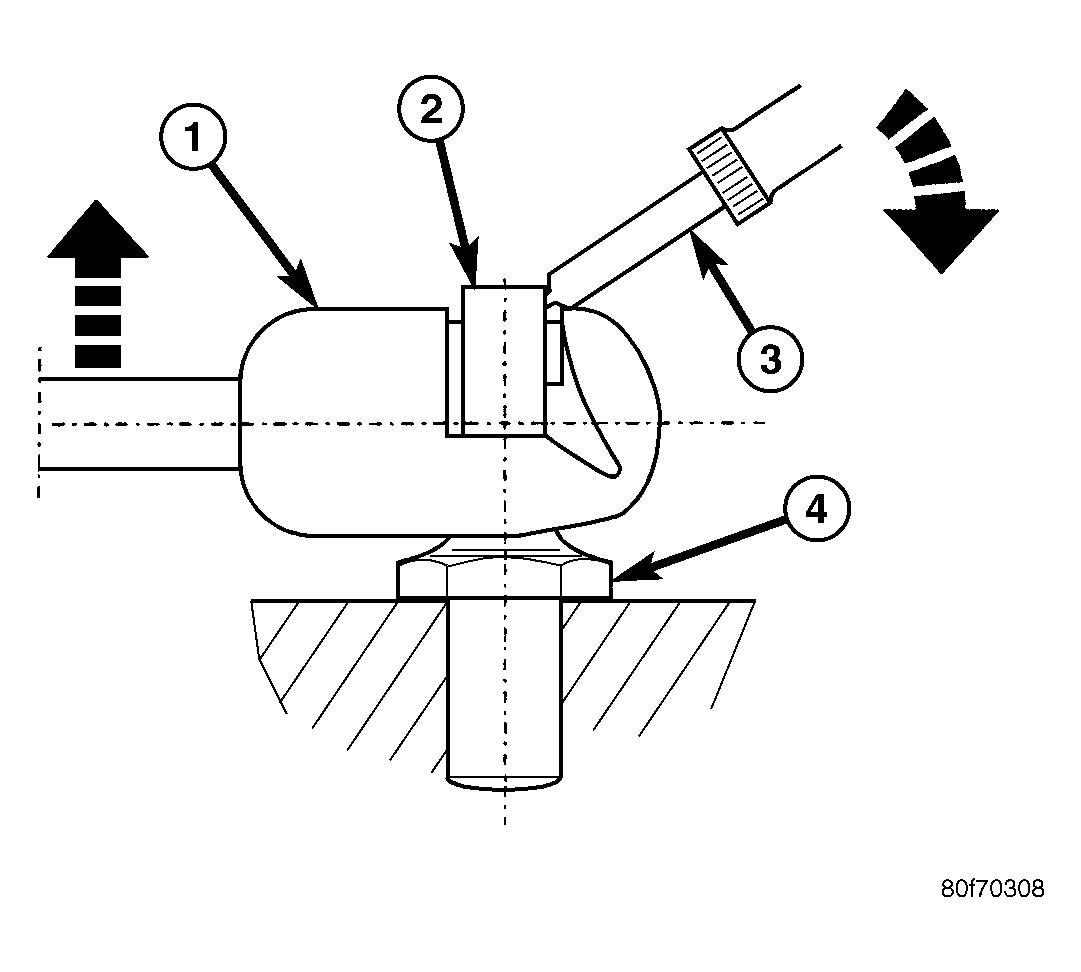

Fig 1: Prying Retaining Clip

Courtesy of DAIMLERCHRYSLER CORP.

Open and support the deck lid with a suitable prop or block.
WARNING: To avoid personal injury or death, during service lift the ball socket end retaining clip only far enough to release the socket from the ball stud. Excessive prying or removal of the clip may result in improper clip spring tension. Improper clip tension may result in the support cylinder separating from the ball stud causing sudden, unexpected loss of deck lid support.
Insert a small flat-bladed tool (3) into the notch on the outer face of one ball socket end (1) of the support cylinder and carefully pry the retaining clip (2) outward while pulling the ball socket away from the ball stud (4) on the deck lid hinge.
Release the retaining clip to its installed position.
Repeat step 2. and step 3 for the opposite end of the support cylinder.

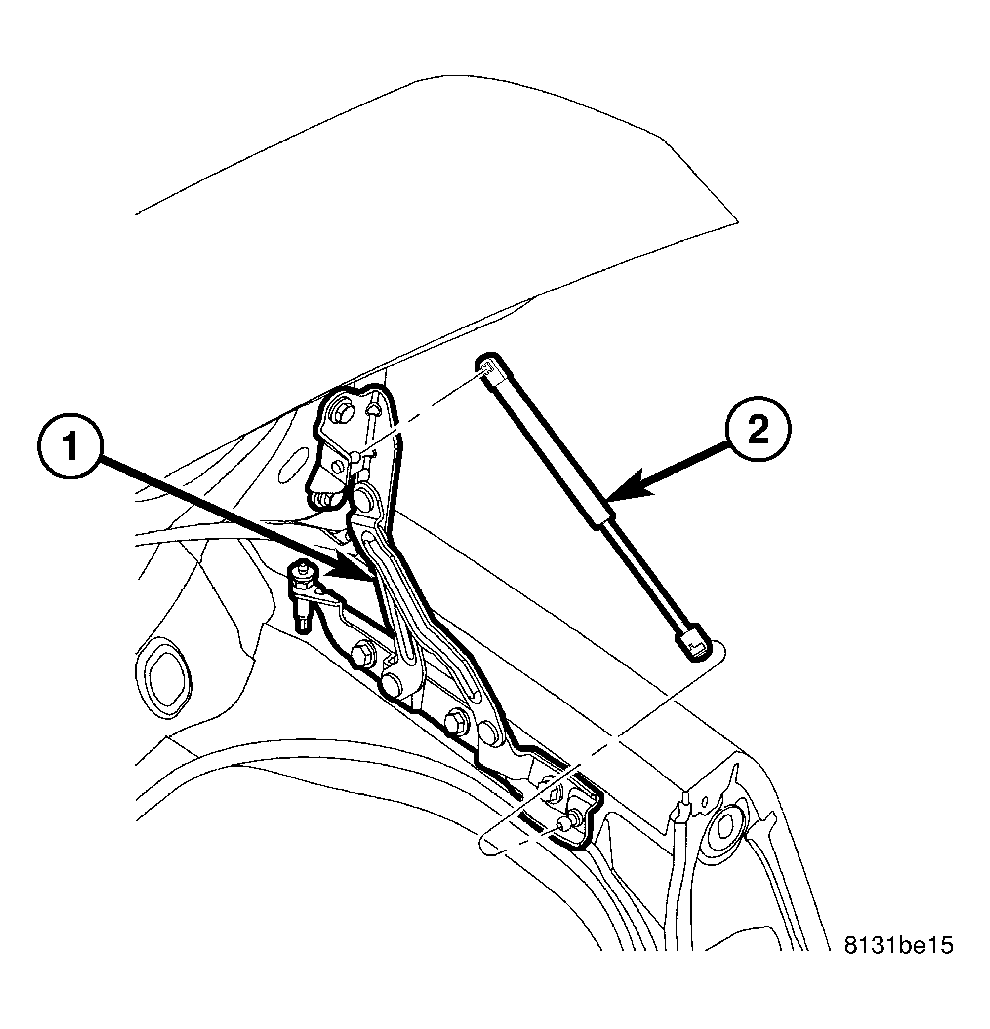

Fig 2: Support Cylinder
Courtesy of DAIMLERCHRYSLER CORP.
Remove the support cylinder (2) from the deck lid hinge (1).
