Latch Striker: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

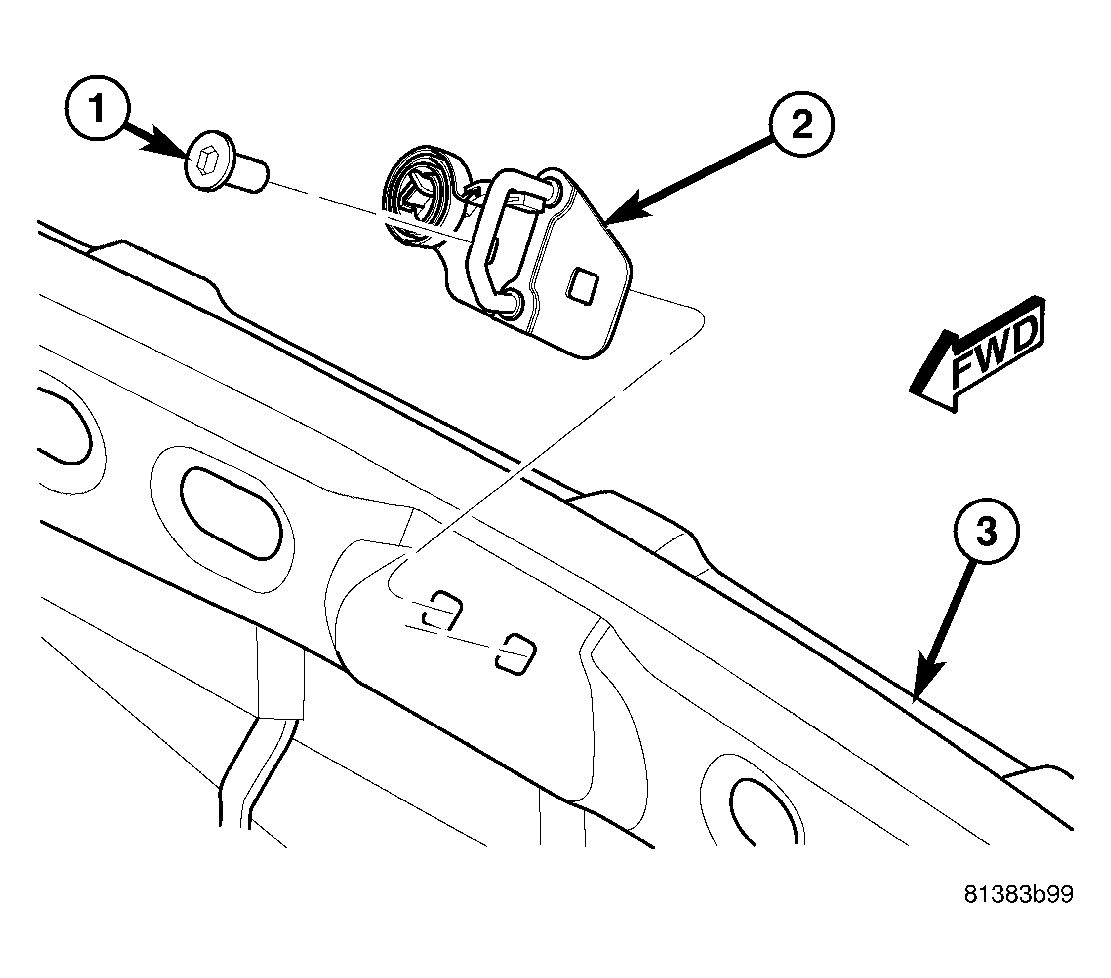

Fig 1: Latch Striker
GC0013358Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the deck lid latch striker (2) to the inside of the deck opening lower panel (3).
  2. Install and tighten the two screws (1) that secure the latch striker to the deck opening lower panel. Tighten the screws to 28 N.m (21 ft. lbs.).
  3. Adjust the latch striker position as necessary to achieve proper deck lid latch operation.
  4. Reinstall the trunk rear trim panel to the deck opening lower panel. (Refer to BODY/INTERIOR/TRUNK REAR TRIM PANEL - INSTALLATION) .
  5. Close the deck lid.
