DECKLID - Spoiler: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: SRT 8 vehicles only

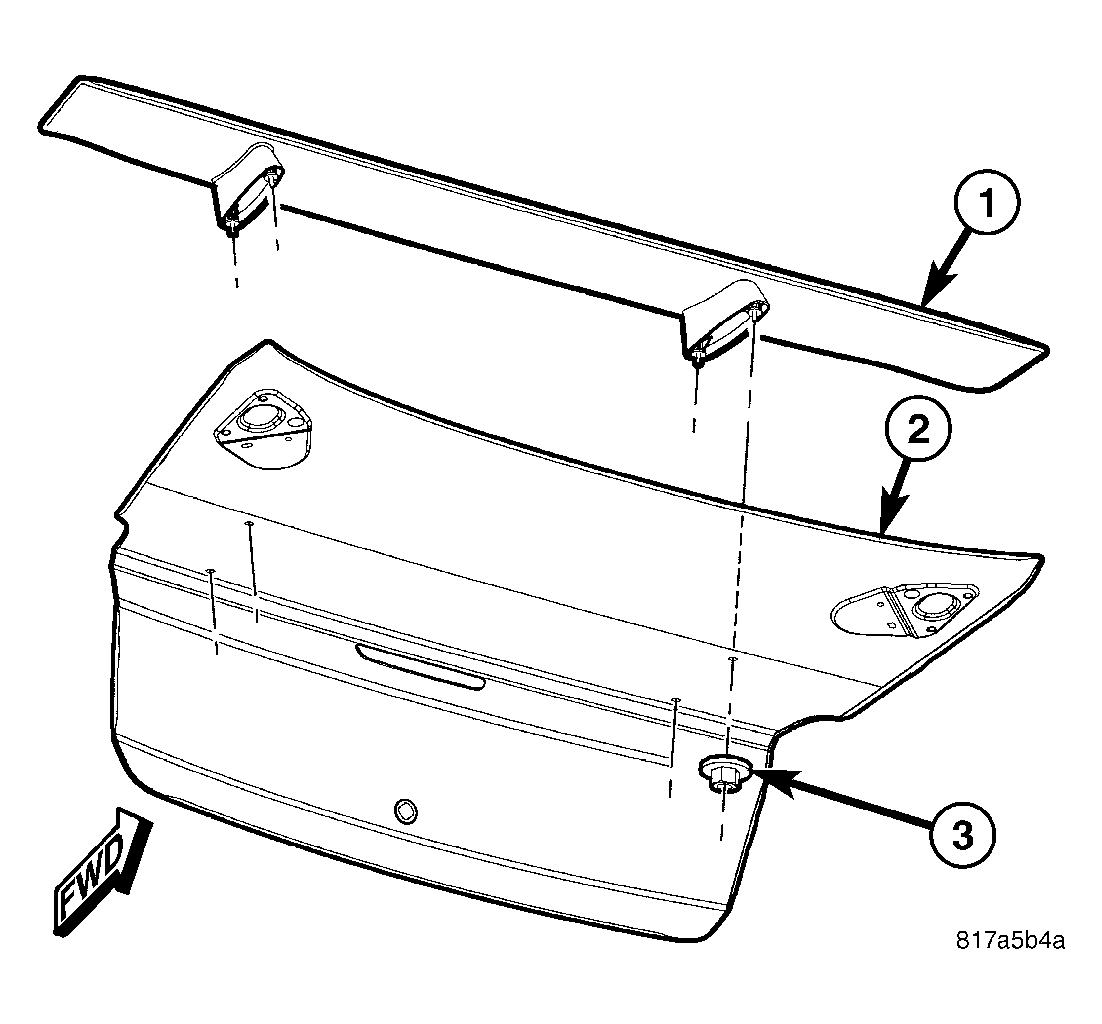

Fig 1: SPOILER

Courtesy of DAIMLERCHRYSLER CORP.

Insert spoiler studs through decklid (2) holes.
Install nuts (3) to spoiler studs.
Torque nuts to 6 N.m (4.4 ft. lbs.)
