Section 23 (Body - Interior & Exterior): DECKLID/Hatch/Liftgate/Tailgate: Bumper: Removal: Lower

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

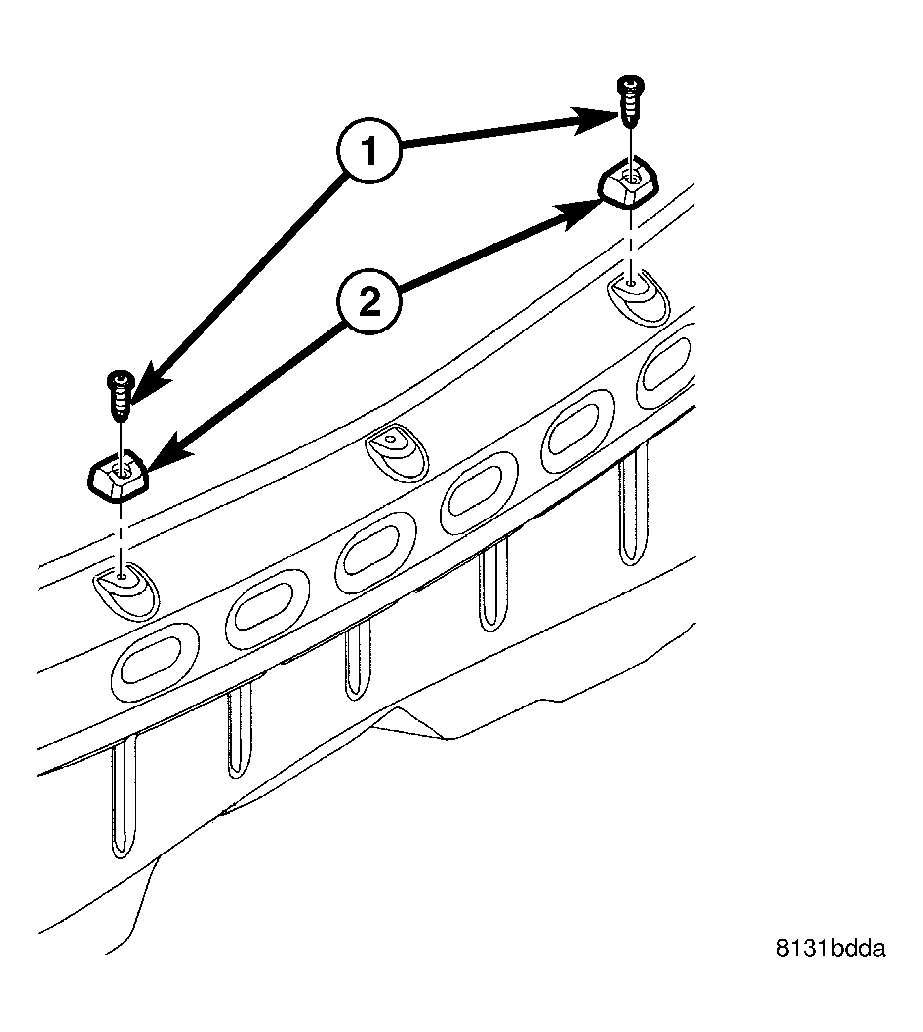

Fig 1: Lower Decklid Bumpers
GC0013350Courtesy of DAIMLERCHRYSLER CORP.
  1. Open the deck lid.
  2. Remove the push-pin fastener (1) that secures the lower bumper (2) to the rear fascia flange that extends over the deck opening lower panel.
  3. Remove the bumper.
