THERMO Bypass Valve-Installation

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

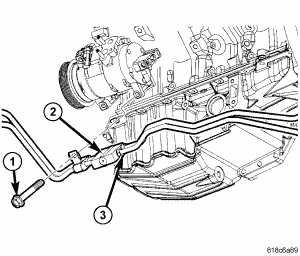

Fig 1: Thermal Bypass Valve
GC0052460Courtesy of CHRYSLER LLC
1 - MOUNTING BOLT
2 - THERMAL BYPASS VALVE BLOCK
3 - COOLER LINE FITTING
  1. Position thermal bypass valve. Install mounting bolt. Tighten mounting bolt to: 2.7L/5.7L/6.1L engine 50 N.m (37 ft. lbs.), 3.0L/3.5L engine 26 N.m (19 ft.lbs.).
  2. Install rear transmission cooler lines to thermal bypass valve. Tighten fittings to 20 N.m (18 ft. lbs.).
  3. Install front transmission cooler lines to thermal bypass valve. Tighten fittings to 20 N.m (18 ft. lbs.).
