Quick Connect Fitting Disassembly/Assembly: Connect
WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

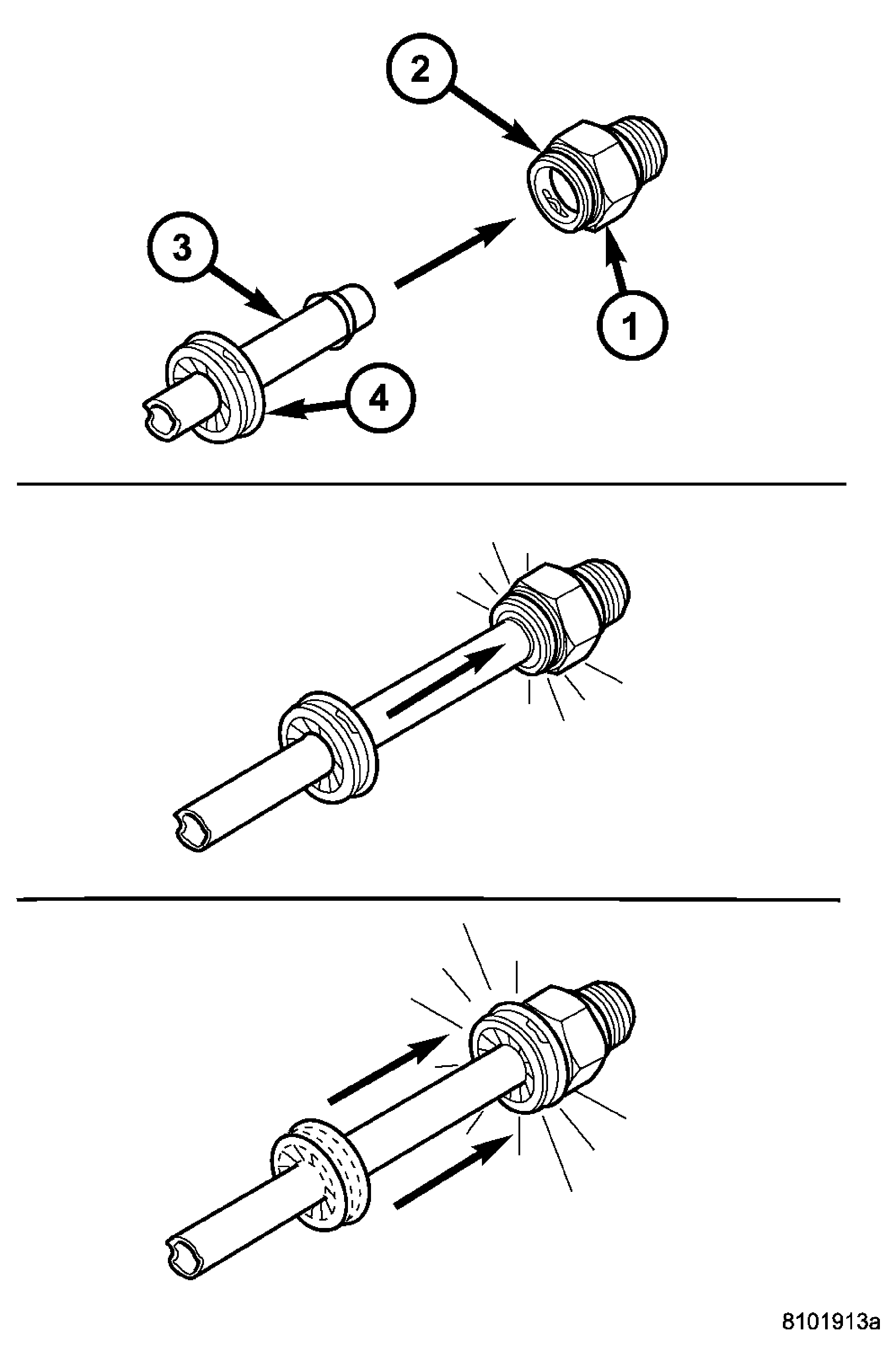

| 1 - QUICK CONNECT FITTING |
| 2 - CLIP |
| 3 - OIL COOLER LINE |
| 4 - DUST CAP |
- Align transmission cooler line with quick connect fitting while pushing straight into the fitting.
- Push in on transmission cooler line until a "click" is heard or felt.
- Slide dust cap down the transmission cooler line and snap it over the quick connect fitting until it is fully seated and rotates freely. Dust cap will only snap over quick connect fitting when the transmission cooler line is properly installed.
NOTE:
If dust cap will not snap into place, repeat assembly step 2.
