Thermostat-Engine Coolant: Removal: Removal-3.5L

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

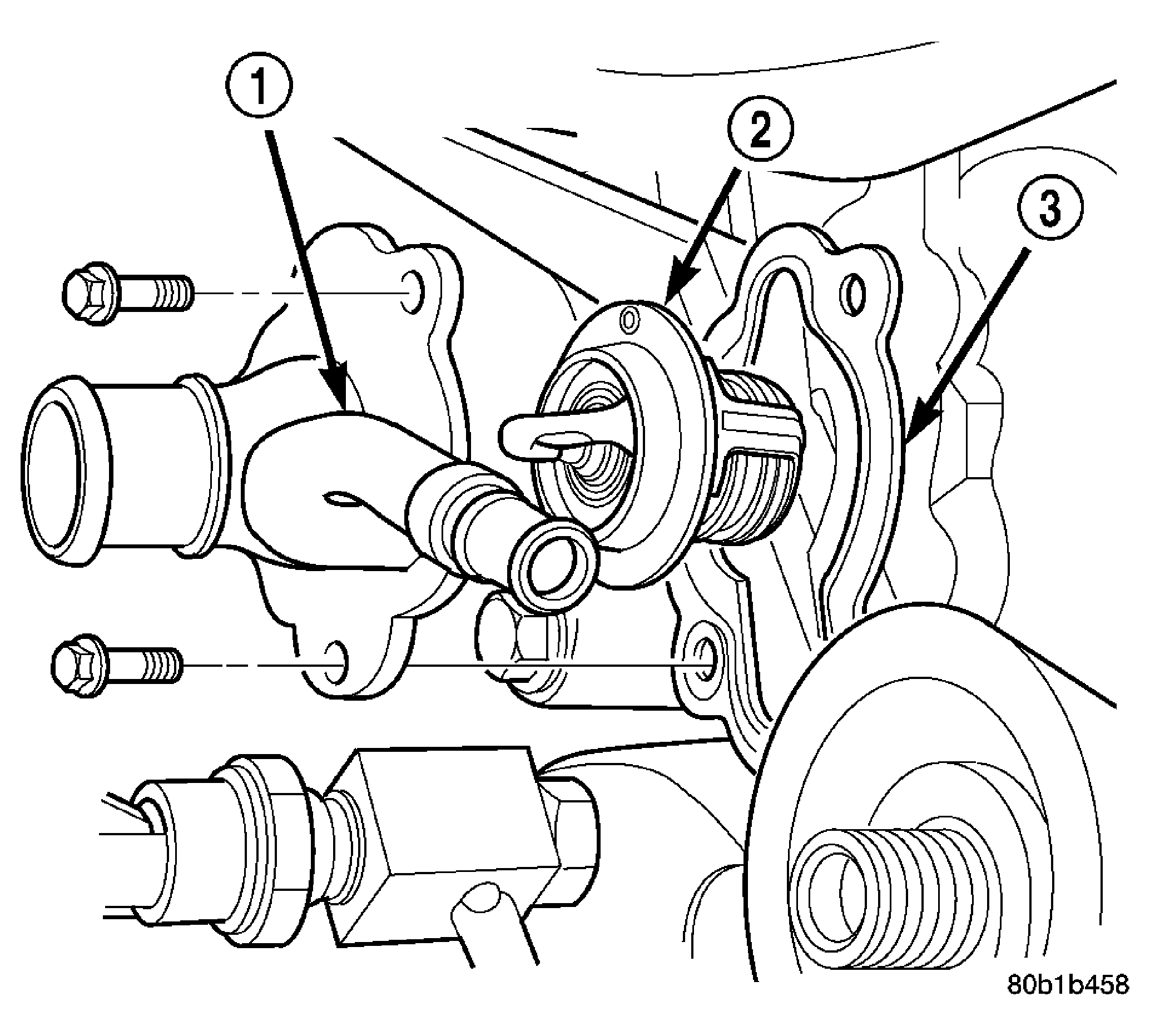

Fig 1: Thermostat - 3.5L

Courtesy of CHRYSLER LLC

1 - THERMOSTAT HOUSING/COOLANT INLET

2 - THERMOSTAT

3 - GASKET

Disconnect negative cable.
WARNING: Do not remove pressure cap with the system hot and under pressure because serious burns from coolant can occur.
Drain cooling system. See STANDARD PROCEDURE .
Raise vehicle on hoist.
Disconnect electrical connectors from engine oil and power steering pressure switches.
Disconnect radiator and heater hoses from thermostat housing.
Remove thermostat housing bolts.
Remove housing, thermostat, and gasket.

NOTE: The OEM thermostat is staked in place at the factory. To ensure proper seating of replacement thermostat, carefully remove the bulged metal from the thermostat housing using a suitable hand held grinder. It is not necessary to restake the replacement thermostat into the thermostat housing.
