Rear Brakes
WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- If installed, remove rubber dust caps from both bleeder screws on each caliper.

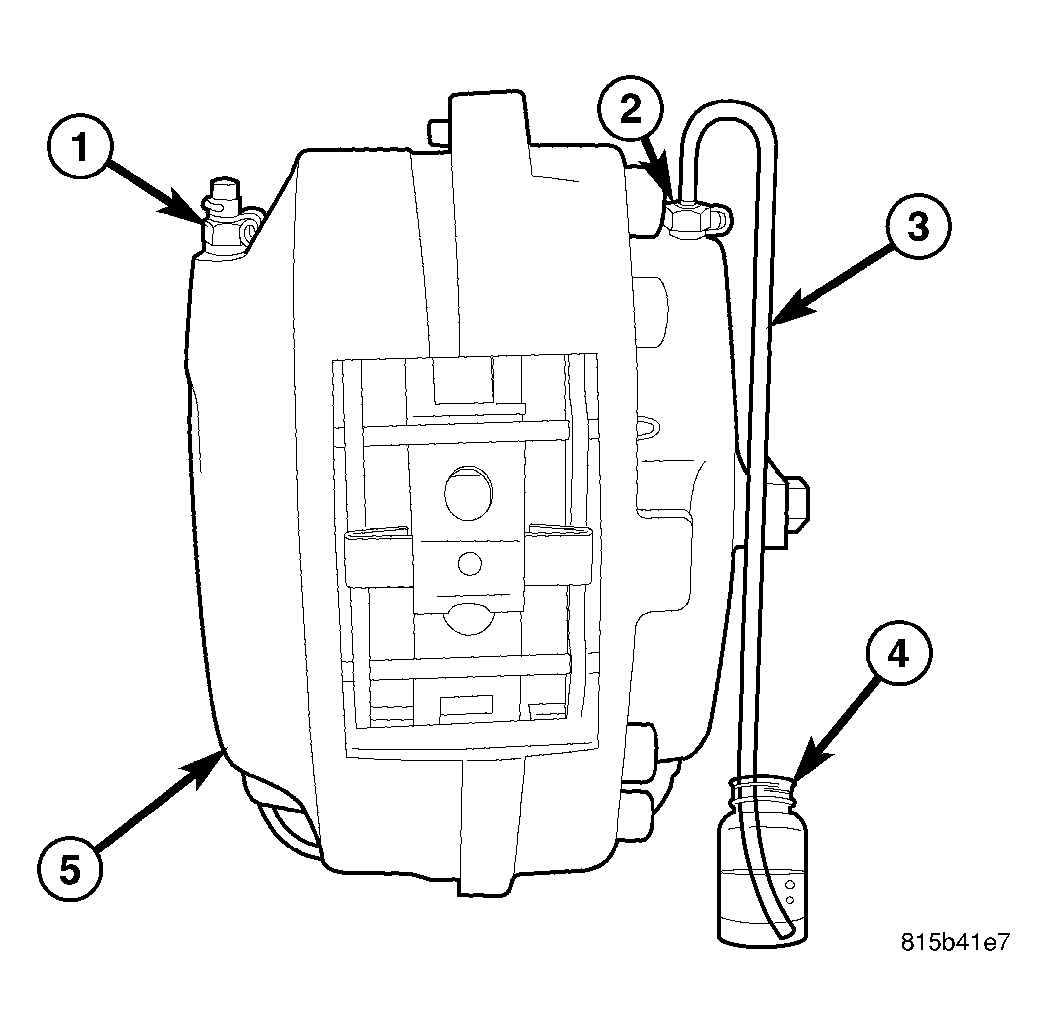

- Starting at the first wheel circuit that needs to be bled (See list in above note), attach a clear hose (3) to the inboard bleeder screw (2) at that wheels brake caliper and feed the other end of hose into a clear jar (4) containing enough fresh brake fluid to submerge the end of the hose.
- Have an assistant pump the brake pedal three or four times, then hold it down before the bleeder screw is opened.CAUTION: Open the bleeder screw at least one full turn when instructed. Some air may be trapped in the brake lines or valves far upstream, as far as ten feet or more from the bleeder screw. If the bleeder screw is not opened sufficiently, fluid flow is restricted causing a slow, weak fluid discharge. This will NOT get all the air out. Therefore, it is essential to open the bleeder screw at least one full turn to allow a fast, large volume discharge of brake fluid.
- While the pedal is being held down, open the inboard bleeder screw (2) at least one full turn. When the bleeder screw opens the brake pedal will drop all the way to the floor. Continue to hold the pedal all the way down.
- Once the brake pedal has dropped, close the bleeder screw. The pedal can then be released.
- Repeat the above three steps until all trapped air is removed from that wheel circuit (usually four or five times). This should pass a sufficient amount of fluid to expel all the trapped air from the brakes hydraulic system. Be sure to monitor brake fluid level in master cylinder fluid reservoir making sure it stays at a proper level.
This will ensure air does not reenter brake hydraulic system through master cylinder.NOTE: Monitor the brake fluid level in the fluid reservoir periodically to make sure it does not go too low. This will ensure that air does not reenter the brake hydraulic system.
- Remove clear hose and install bleeder screw dust cap.

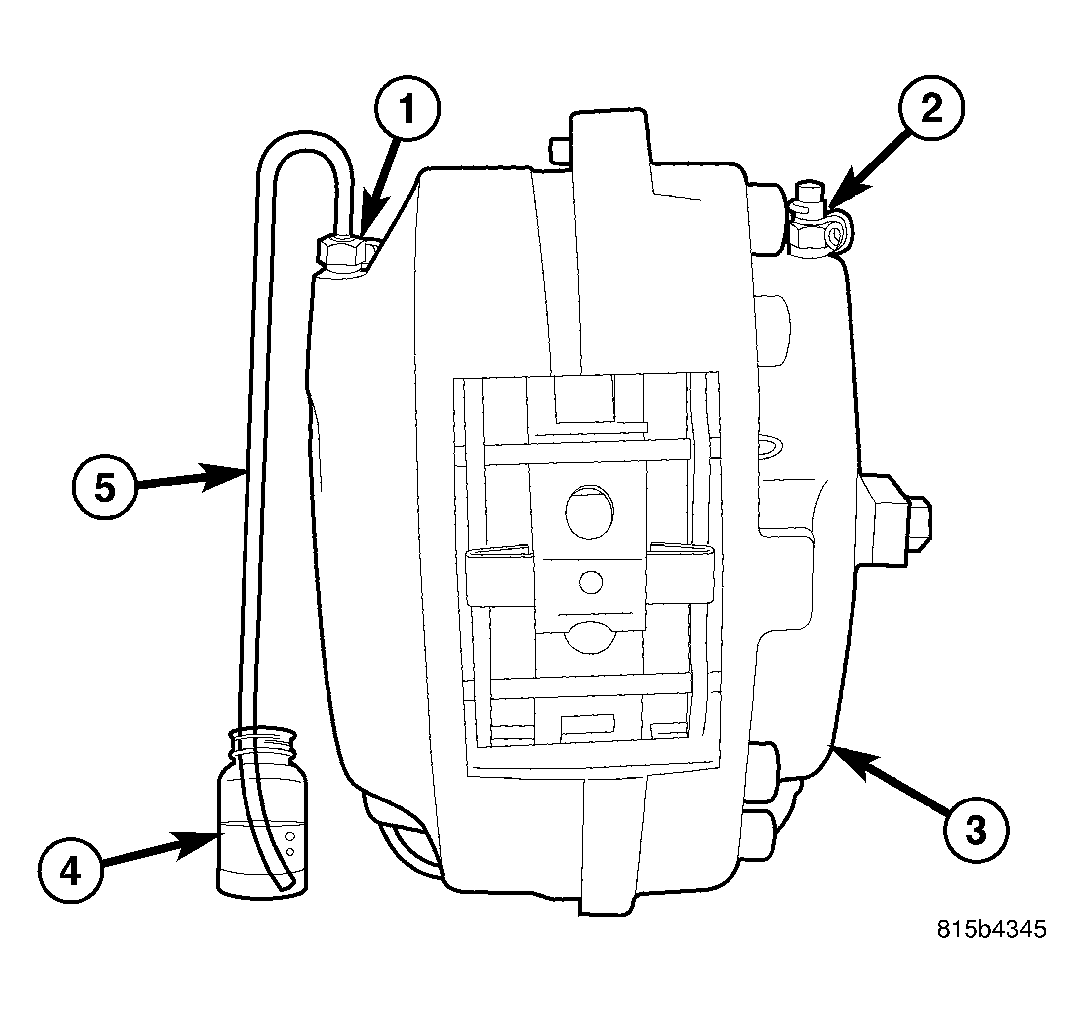

- Attach a clear hose (5) to the outboard bleeder screw (1) at that same wheels brake caliper and feed the other end of hose into a clear jar (4) containing enough fresh brake fluid to submerge the end of the hose.
- Have an assistant pump the brake pedal three or four times, then hold it down before the bleeder screw is opened.CAUTION: Open the bleeder screw at least one full turn when instructed. Some air may be trapped in the brake lines or valves far upstream, as far as ten feet or more from the bleeder screw. If the bleeder screw is not opened sufficiently, fluid flow is restricted causing a slow, weak fluid discharge. This will NOT get all the air out. Therefore, it is essential to open the bleeder screw at least one full turn to allow a fast, large volume discharge of brake fluid.
- While the pedal is being held down, open the outboard bleeder screw (2) at least one full turn. When the bleeder screw opens the brake pedal will drop all the way to the floor. Continue to hold the pedal all the way down.
- Once the brake pedal has dropped, close the bleeder screw. The pedal can then be released.
- Repeat the above three steps until all trapped air is removed from that wheel circuit (usually four or five times). This should pass a sufficient amount of fluid to expel all the trapped air from the brakes hydraulic system. Be sure to monitor brake fluid level in master cylinder fluid reservoir making sure it stays at a proper level.
This will ensure air does not reenter brake hydraulic system through master cylinder.NOTE: Monitor the brake fluid level in the fluid reservoir periodically to make sure it does not go too low. This will ensure that air does not reenter the brake hydraulic system.
- Remove clear hose and install bleeder screw dust cap.
- Bleed opposite rear brake wheel circuits as necessary in the same manner until all air is removed from the brake hydraulic system, then proceed to the front brakes.
