Manual Bleeding Method: Notes
WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
To bleed the base brake system manually, an assistants help is required.
NOTE:

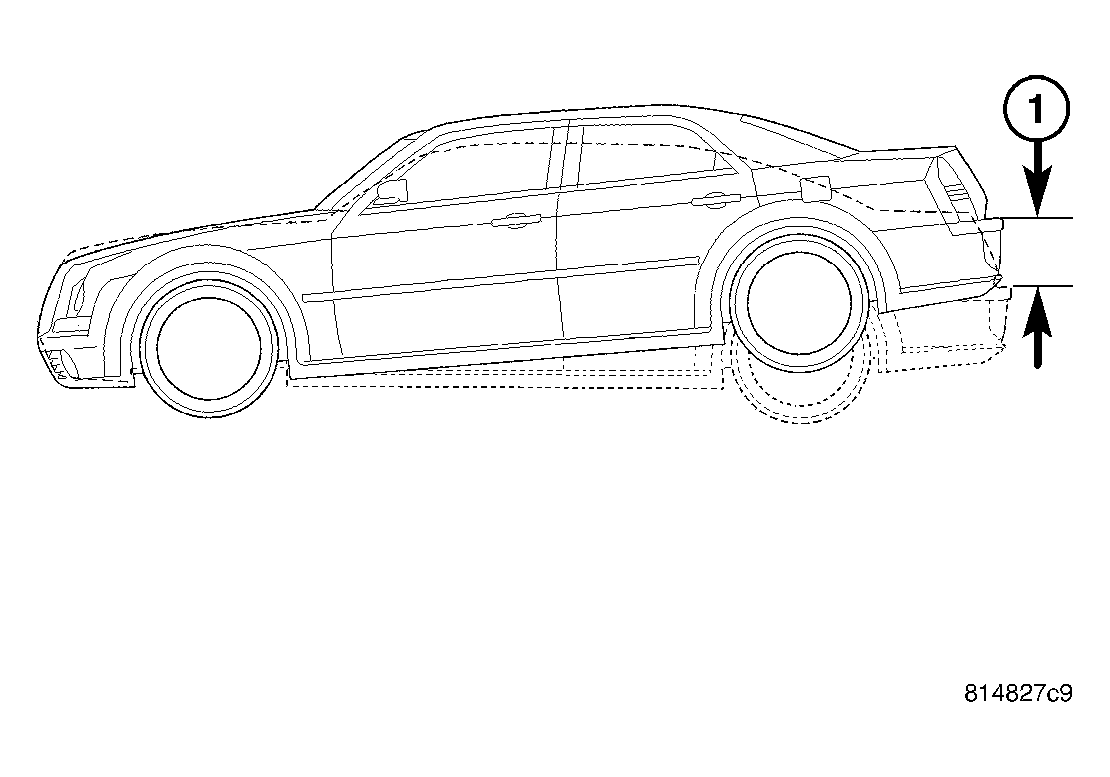

To ensure all air is bled from the ICU or junction block in a timely manner, it is recommended to raise the rear of the vehicle approximately 5° higher than the front or approximately 10-12 inches as measured at the rear bumper (1).
- Raise and support vehicle placing rear of vehicle approximately 5° higher than the front or if measured at the rear bumper (1), approximately 10-12 inches above level. It will be necessary to add extra support stands under vehicle to support this angle.
NOTE:
The following wheel circuit sequence for bleeding the brake hydraulic system should be used to ensure adequate removal of all trapped air from the brake hydraulic system.
- Right rear wheel
- Left rear wheel
- Right front wheel
- Left front wheel
