Battery Tray

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. See REMOVAL .

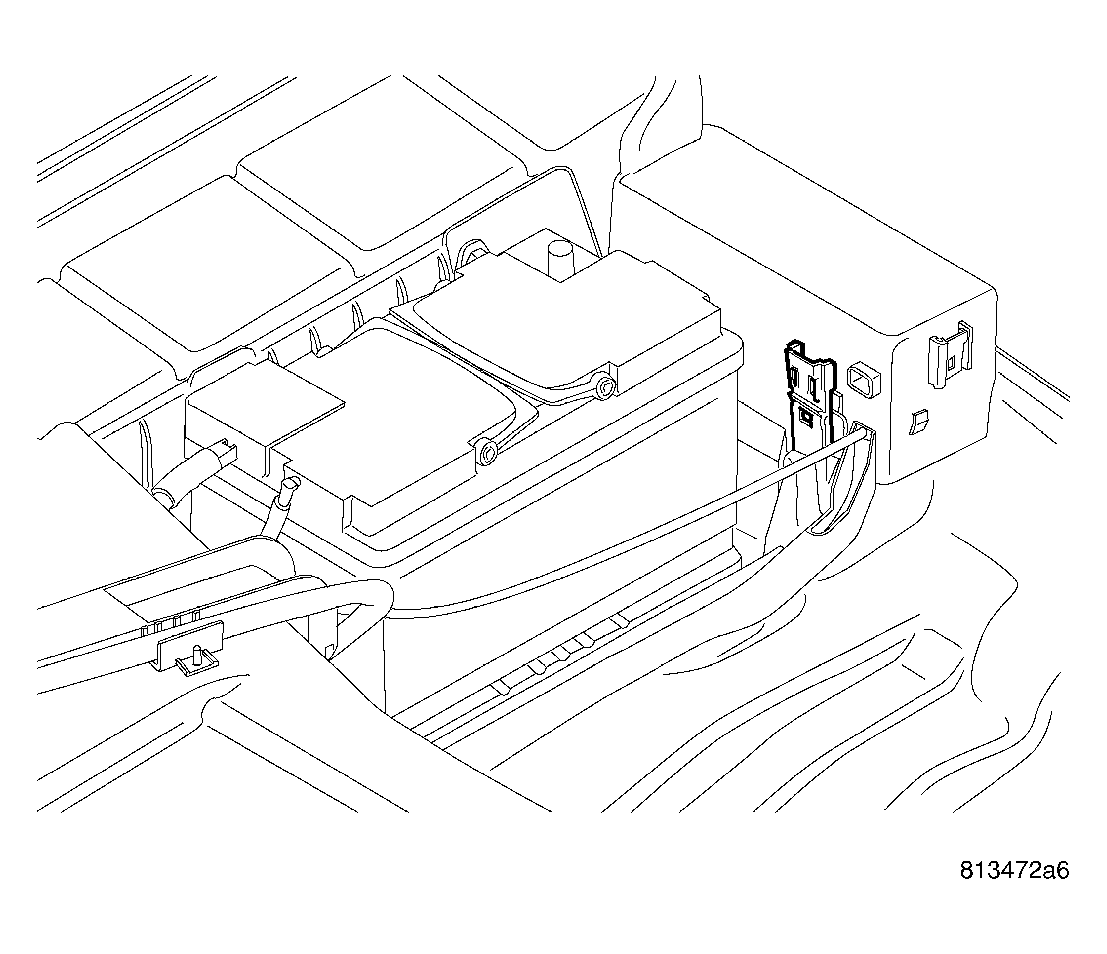

    Fig 1: Removing/Installing Power Distribution Center
    GC0015626Courtesy of CHRYSLER LLC
  2. Using a small flat bladed tool, gently release the two mounting tabs that secure the Power Distribution Center (PDC) to the battery tray. Position the PDC aside.

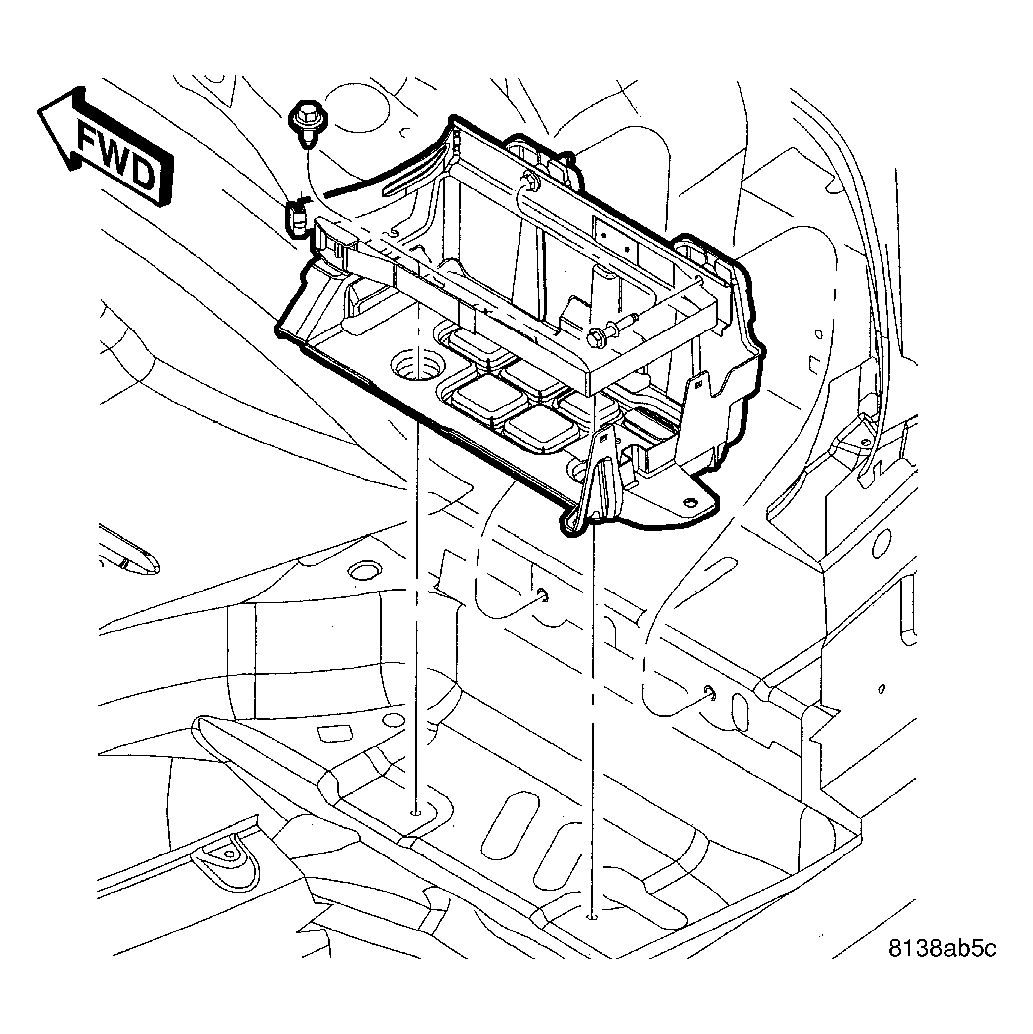

    Fig 2: Removing/Installing Battery Tray
    GC0015627Courtesy of CHRYSLER LLC
  3. Remove the battery tray mounting fasteners and remove the battery tray from the vehicle.
