Positive - Engine Compartment

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Position the battery positive cable in the engine compartment.

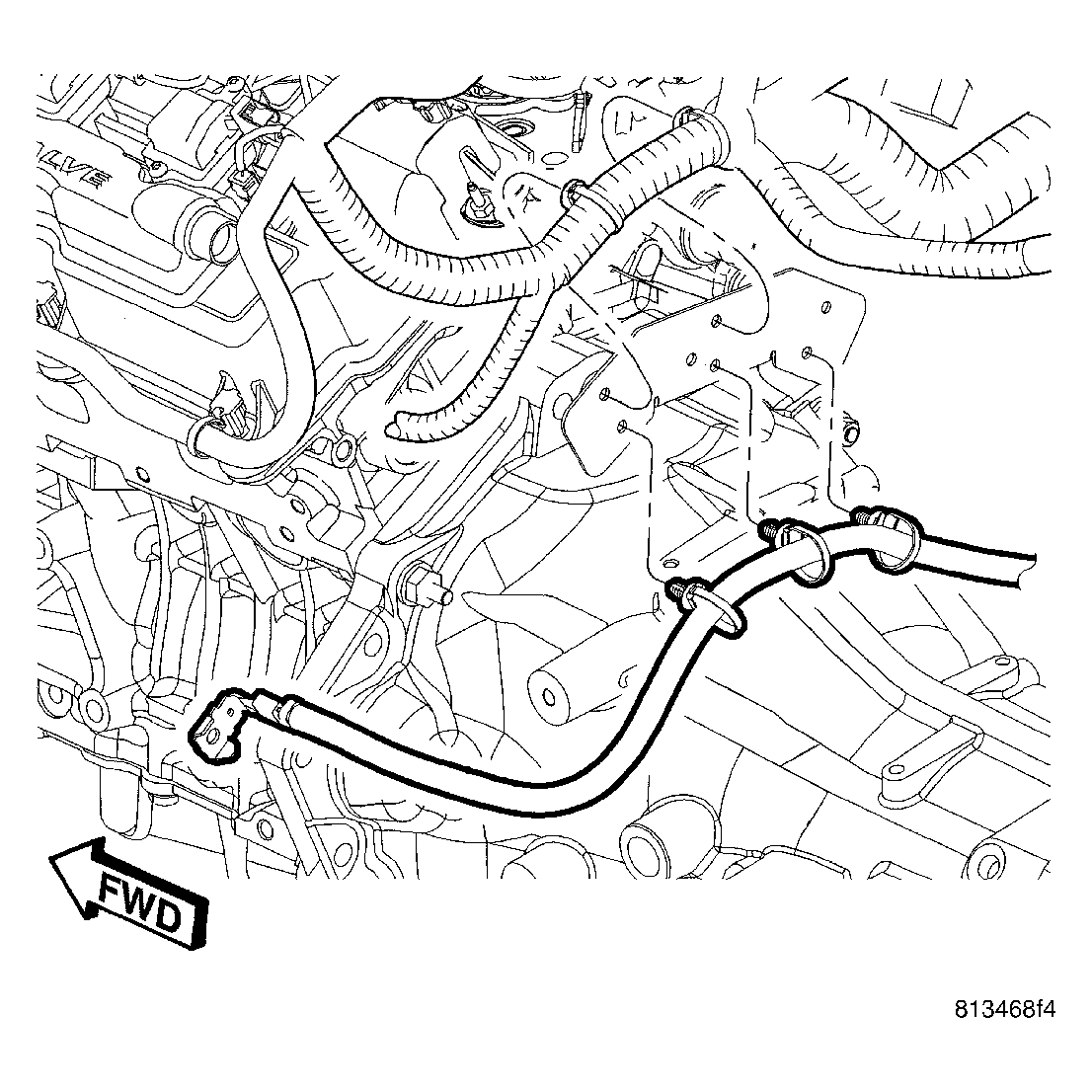

Fig 1: Routing Clips
Courtesy of CHRYSLER LLC
On the 2.7L and 3.5L secure the battery positive cable to the routing clips located at the back of the engine.

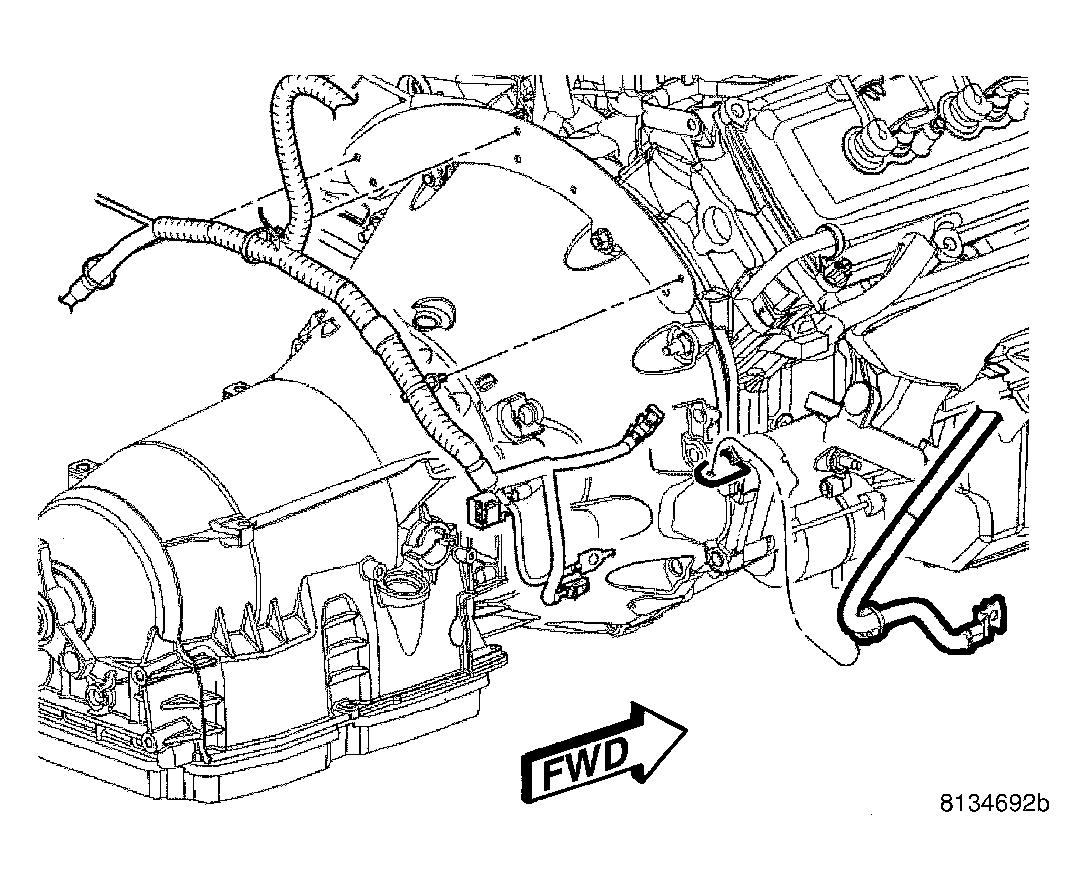

Fig 2: Battery Positive Cable
Courtesy of CHRYSLER LLC
On the 5.7L secure the battery positive cable to the routing clip located at the back of the starter.

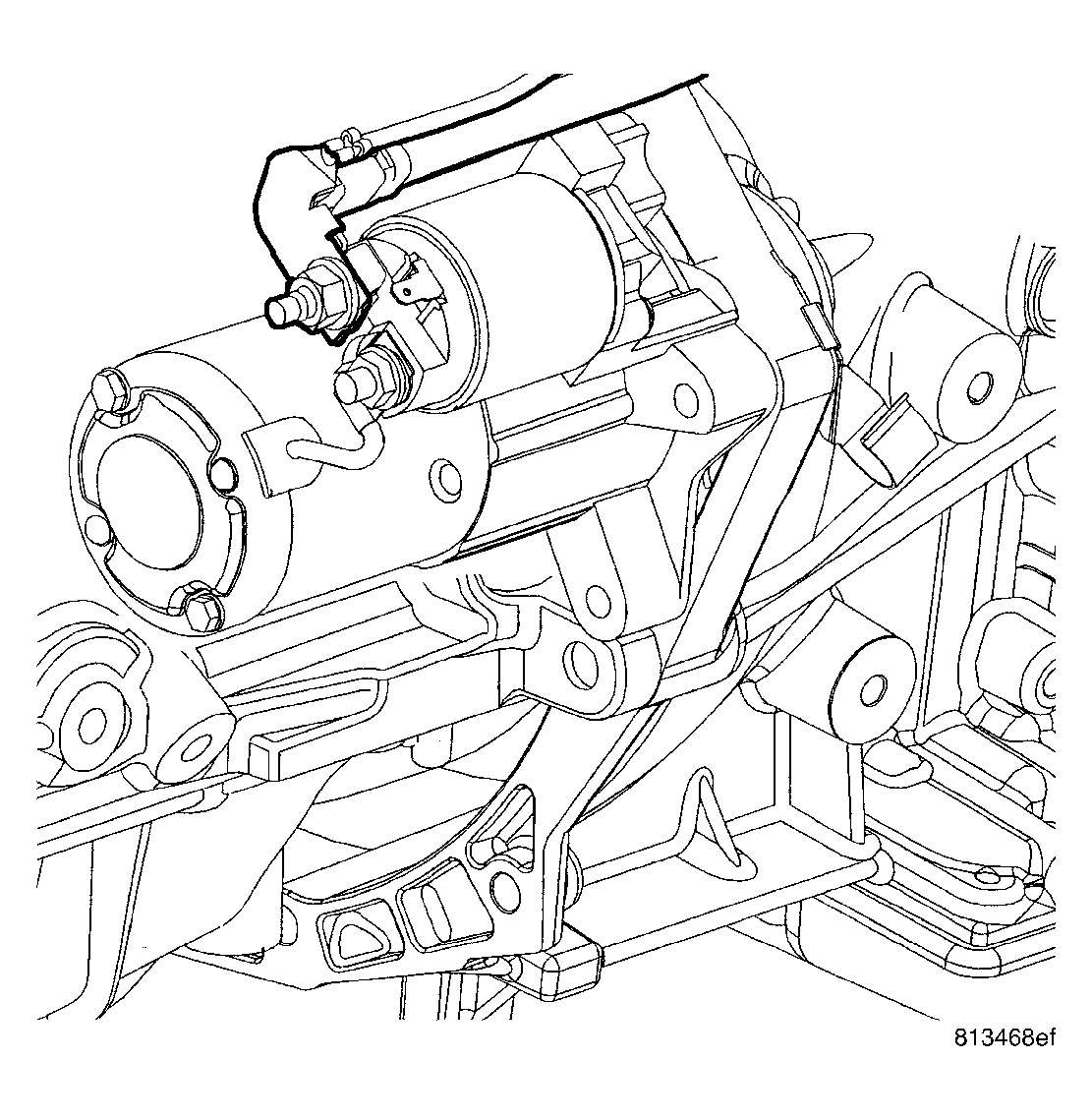

Fig 3: Battery Positive Cable
Courtesy of CHRYSLER LLC
Install the battery positive cable to starter fastener.

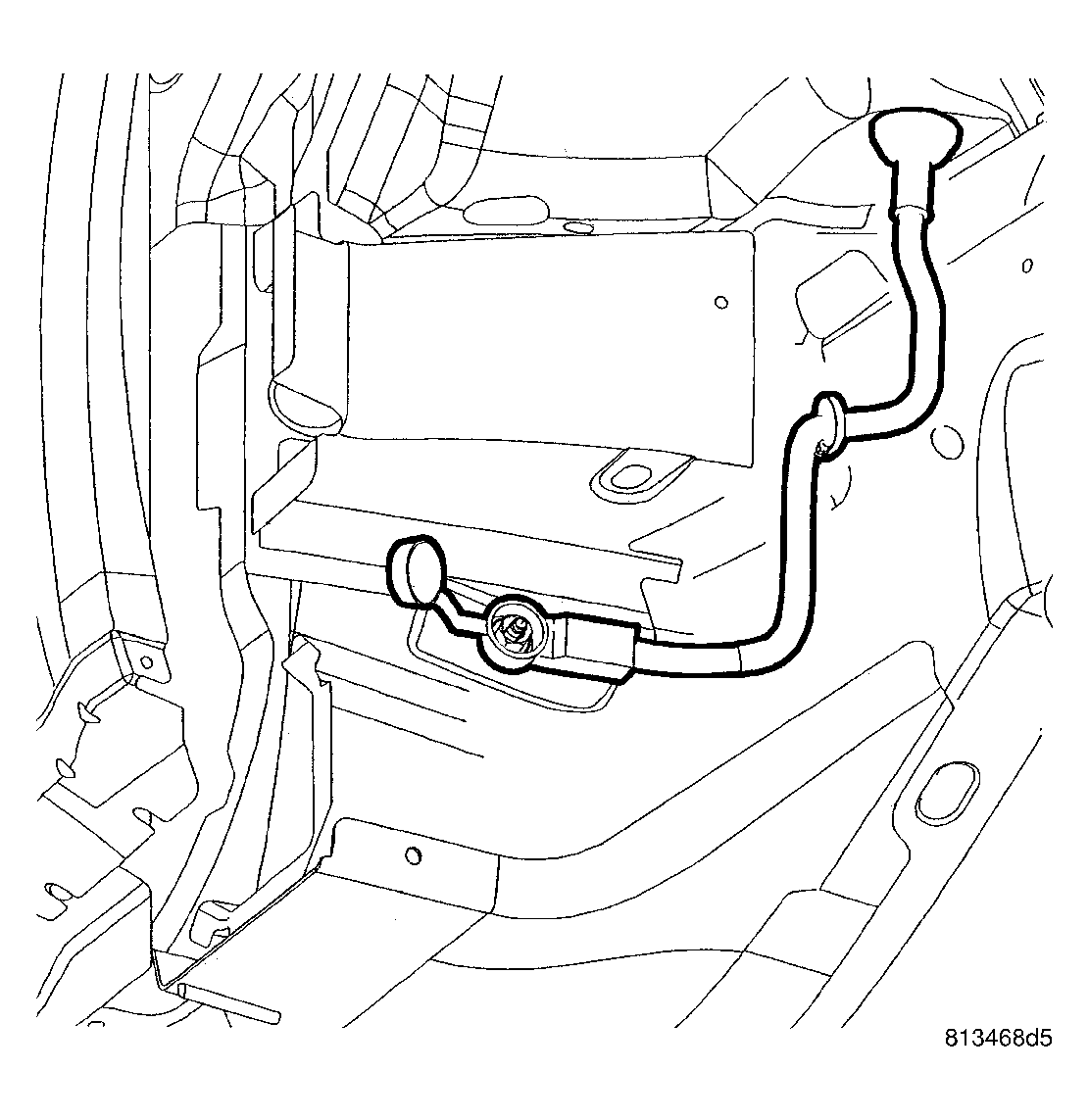

Fig 4: Bulkhead Fastener
Courtesy of CHRYSLER LLC
Install the battery positive cable to bulkhead fastener.
Install the right front wheelhouse splash shield. Refer to INSTALLATION .
Lower vehicle.

Fig 5: Battery System Components And PDC Cover
Courtesy of CHRYSLER LLC
Connect the battery negative cable (3).
Install the spare tire cover.
