Negative - Rear Compartment

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

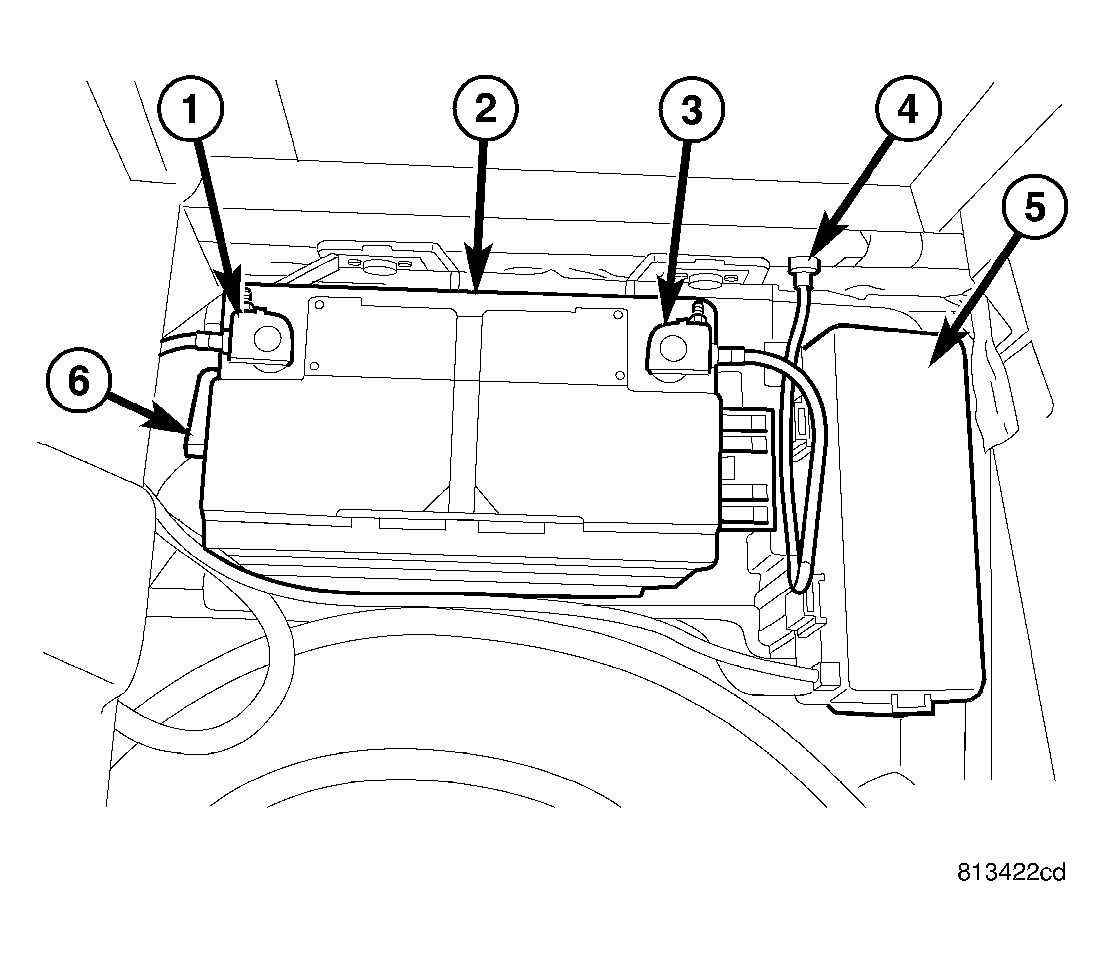

Fig 1: Battery System Components And PDC Cover
GC0015614Courtesy of CHRYSLER LLC
  1. Position the battery negative cable in the vehicle.
  2. Install the fastener (4) securing the battery negative cable to the body.
  3. Connect the battery negative cable (3).
  4. Install the spare tire cover.
