Negative - Engine Compartment

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

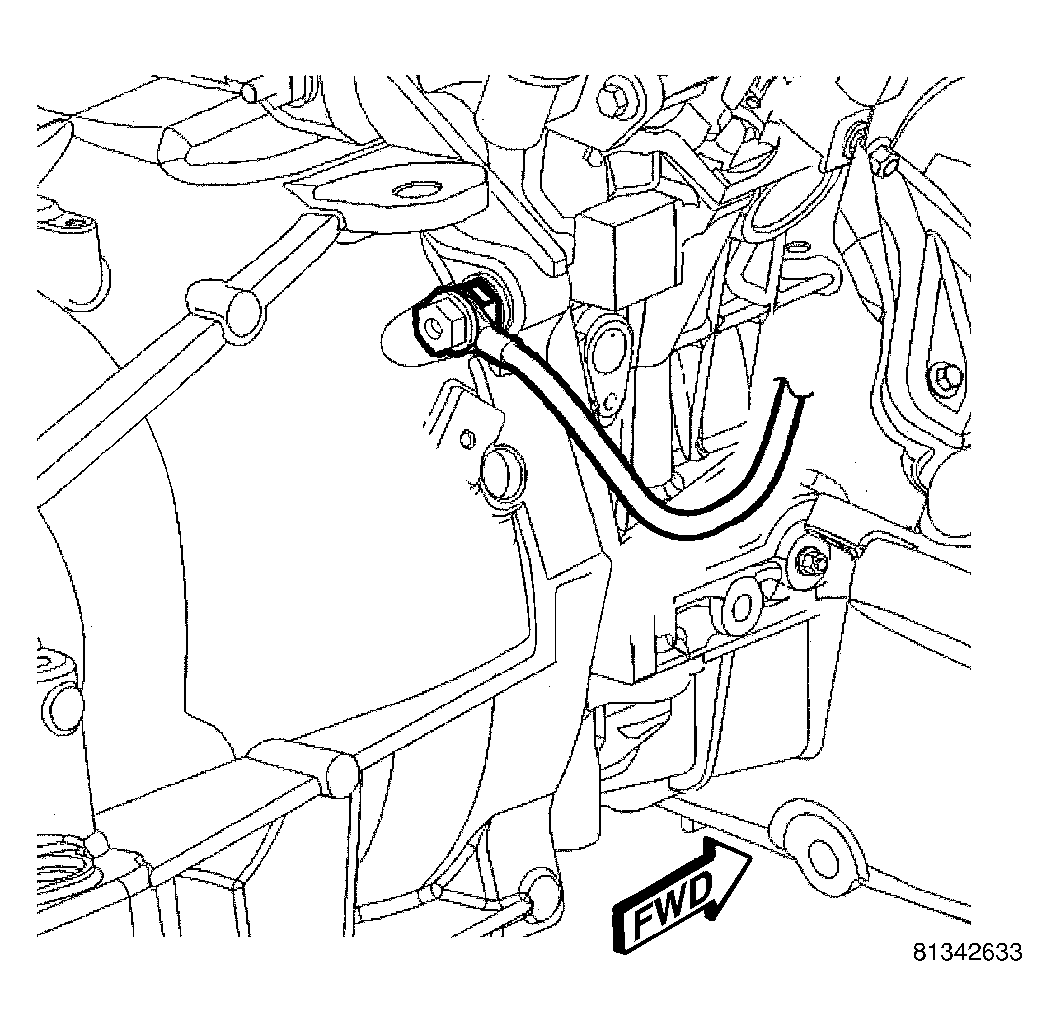

Fig 1: Fastener Securing Negative Battery Cable To Transmission Housing
GC0015615Courtesy of CHRYSLER LLC
  1. Position the battery negative cable in the engine compartment.
  2. Raise vehicle on hoist. Refer to STANDARD PROCEDURE .
  3. Install the fastener securing the battery negative cable to the transmission housing. Torque the bolt to 11 N.m (8 ft. lbs.).
  4. One at a time, install the battery cable retaining push pins, fasteners and routing clips until the cable is installed exactly where it was in the vehicle.
  5. Lower vehicle.

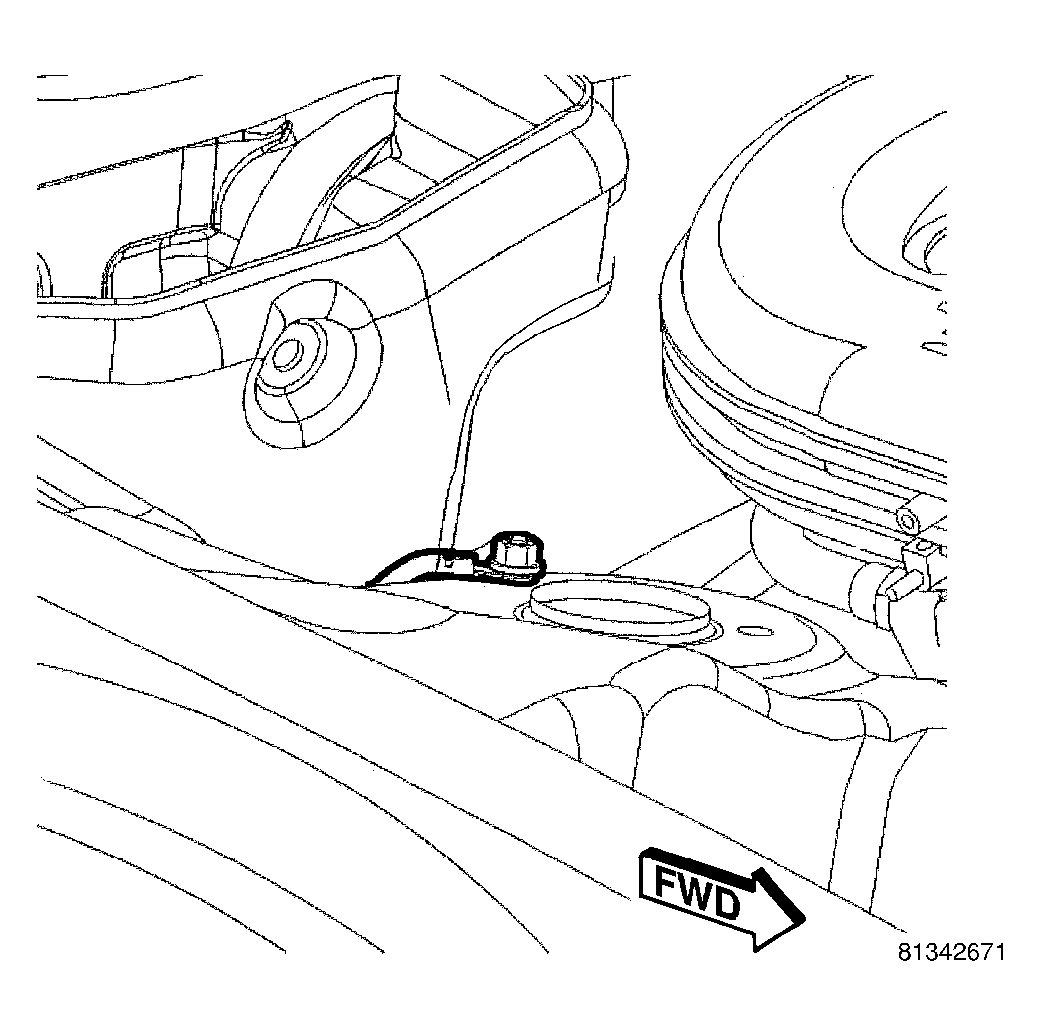

    Fig 2: Fastener Securing Negative Battery Cable To Right Front Strut Tower
    GC0015616Courtesy of CHRYSLER LLC
  6. Install the fastener securing the battery negative cable to the right front strut tower.
  7. Connect the battery negative cable.
  8. Install the spare tire cover.
