Pump - Power Steering, 5.7L/6.1L
WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

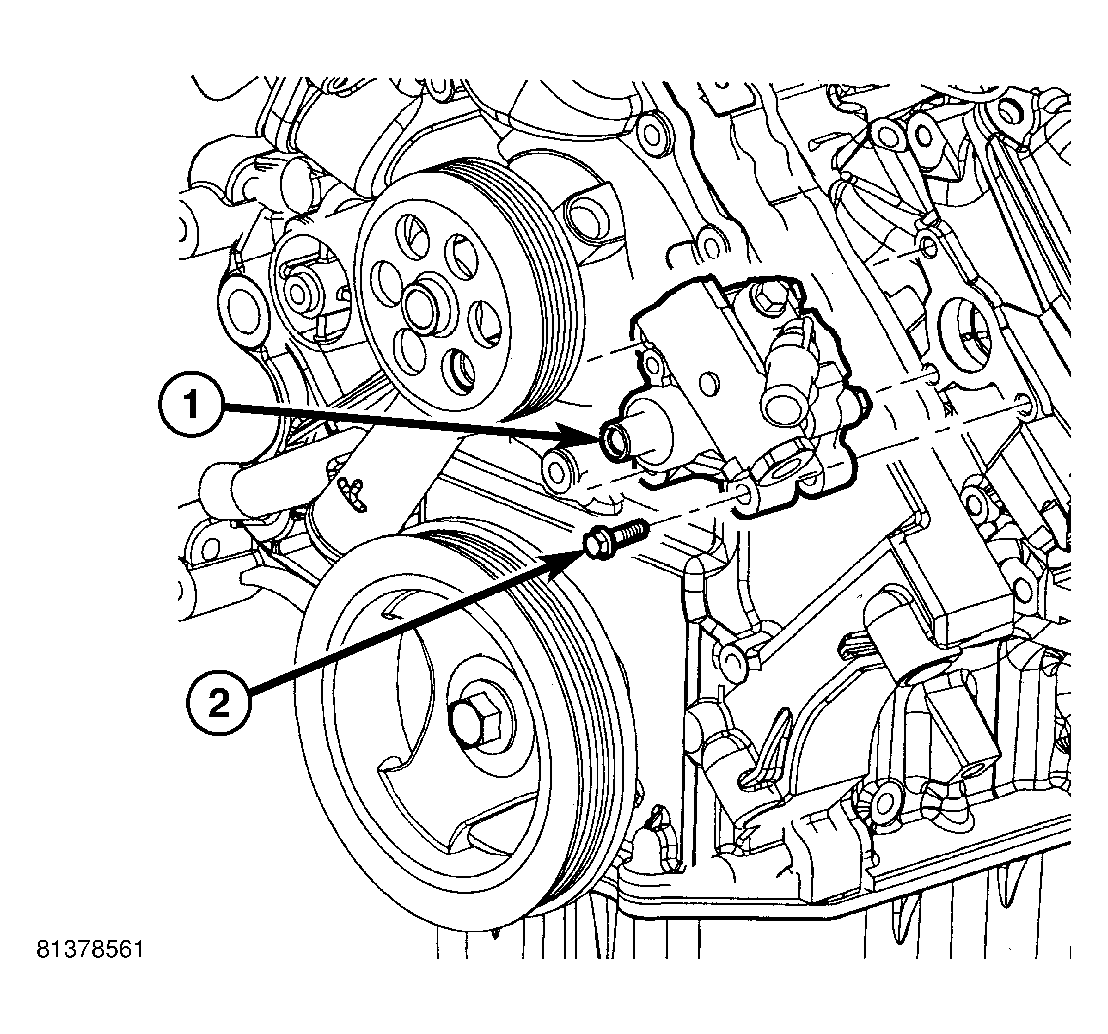

- Align pump (1) with mounting holes on engine.
- Install three pump mounting bolts (2) through access holes in pulley. Tighten bolts to 28 N.m (21 ft. lbs.) torque.
NOTE: Always use a NEW O-ring on the end of the pressure hose.
- Lubricate NEW O-ring on end of pressure hose with clean power steering fluid.

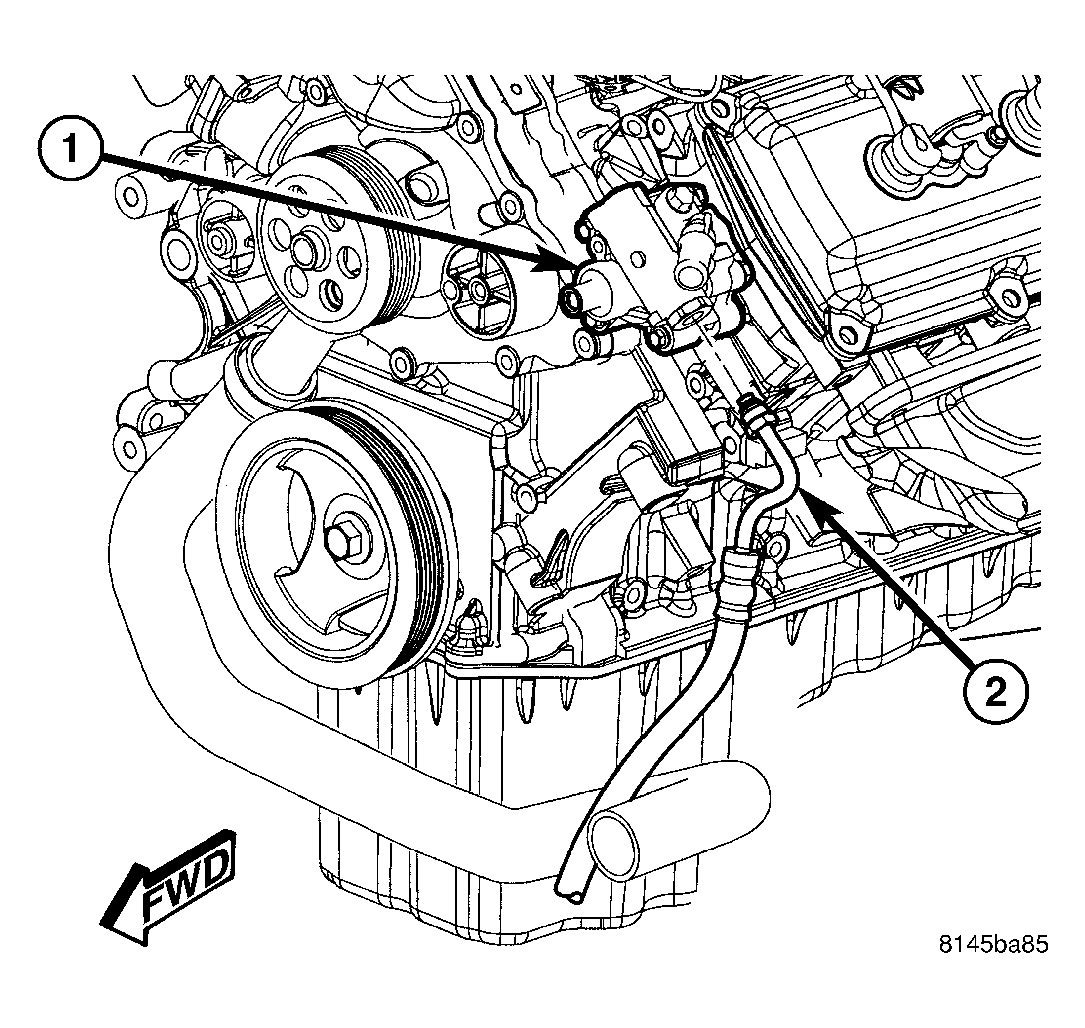

- Install pressure hose (2) to pump (1). Tighten pressure hose tube nut to 47 N.m (35 ft. lbs.) torque.

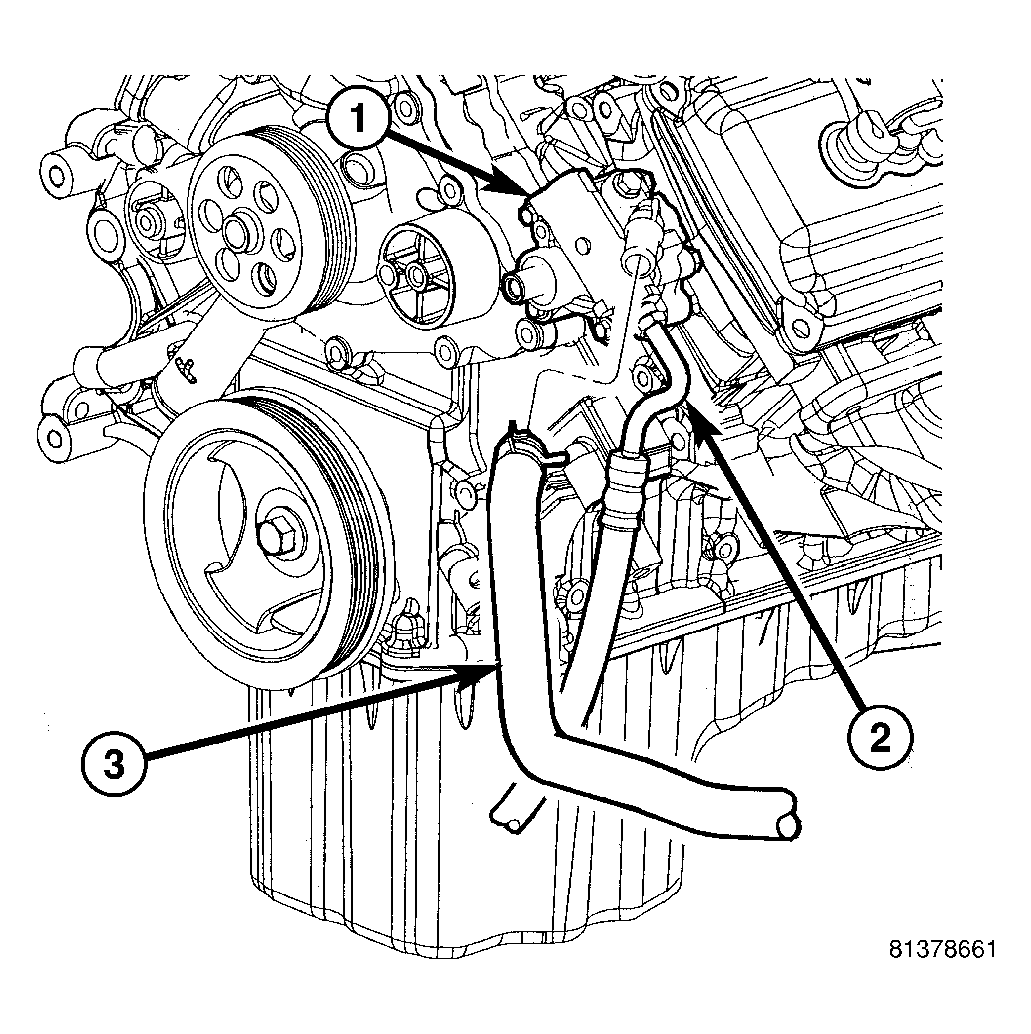

- Install supply hose (3) on pump (1). Install clamp securing hose in place.
- Install serpentine drive belt. Refer to INSTALLATION .
- Install air cleaner housing and inlet tube.
- Connect battery negative cable (2) to battery post. It is important that this is performed properly. Refer to STANDARD PROCEDURE .
- Fill and bleed power steering system. See STANDARD PROCEDURE .
