Fluid Cooler - SRT8/Police
WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate battery negative cable (2) from battery post.
- Siphon power steering fluid from pump reservoir.
- Raise and support vehicle. Refer to STANDARD PROCEDURE .
- Remove belly pan. Refer to REMOVAL .
- Remove hose clamp (1), then return hose (5) from steering gear at cooler (2).
- Remove hose clamp (4), then return hose (3) to reservoir at cooler (2).

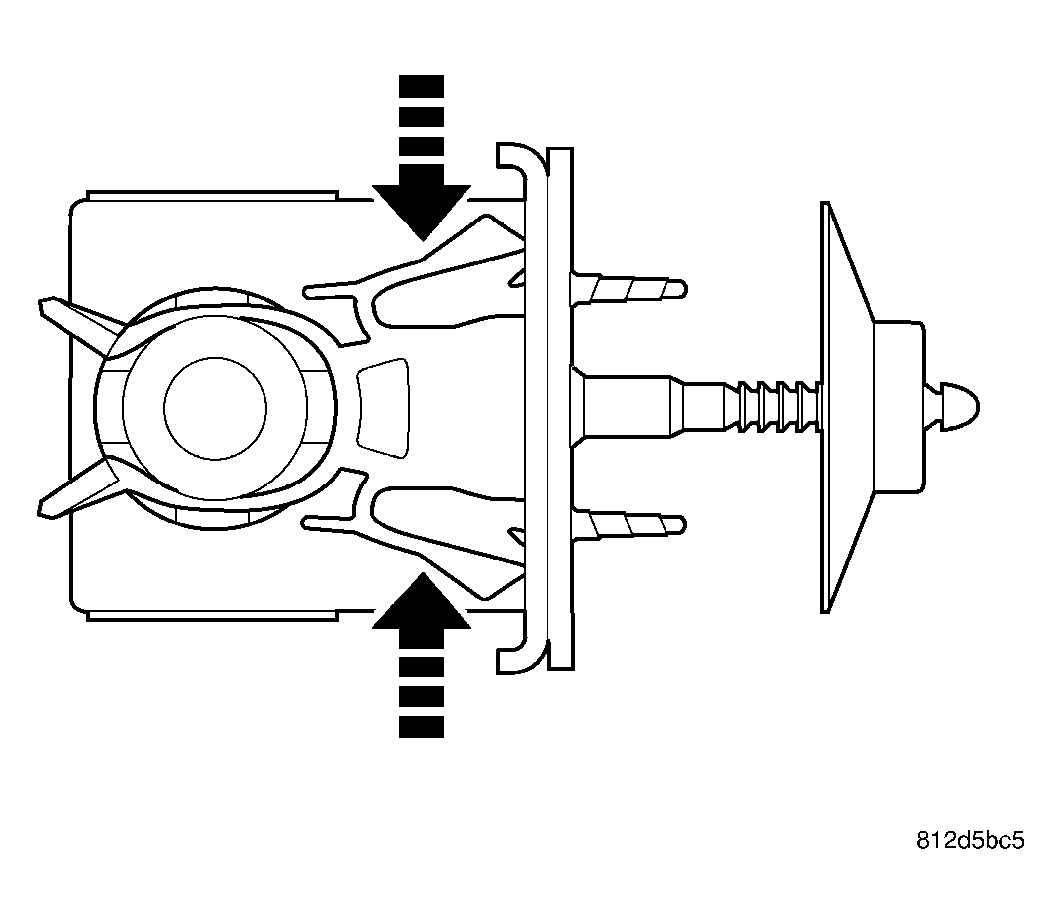

- Push in on cooler mounting clip tabs.
- Remove cooler from clips mounted to cooling module.
