Fluid Cooler - SRT8/Police

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

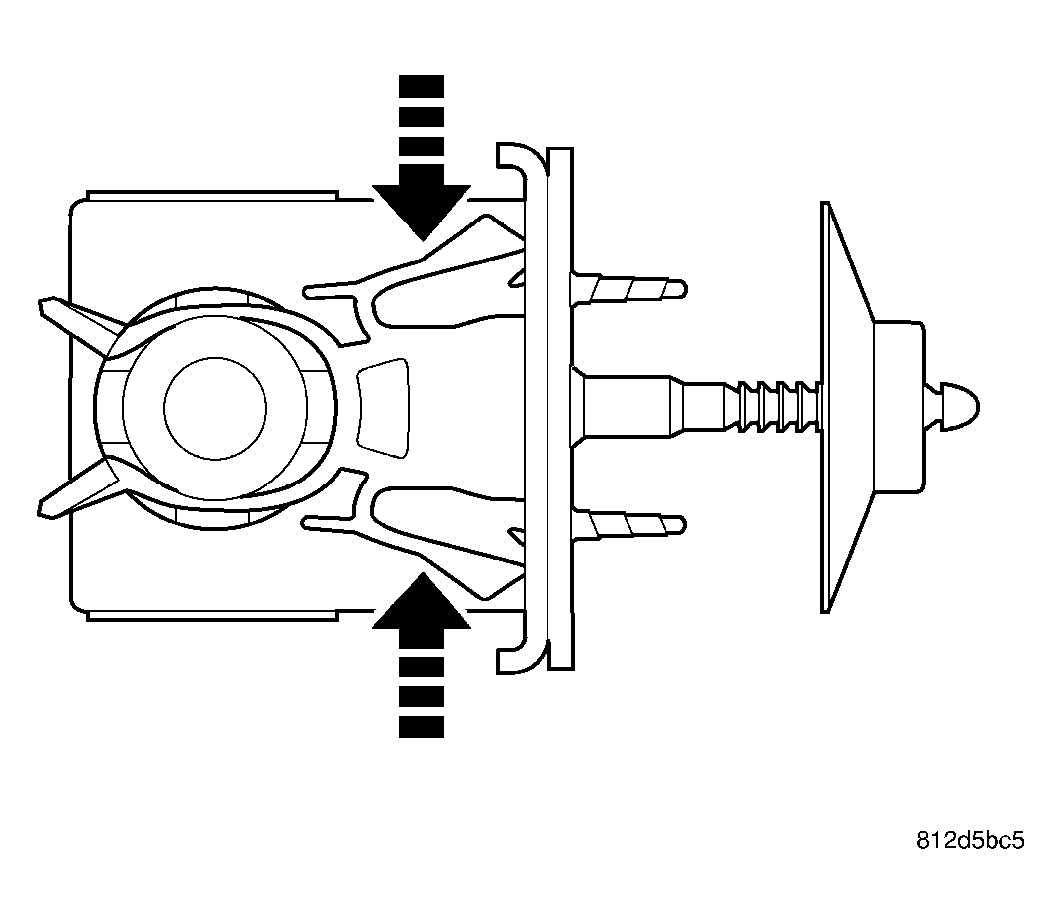

Fig 1: Cooler Retainer Clips

Courtesy of CHRYSLER LLC

Install center tube of cooler over mounting clips attached to cooling module. Push cooler past clip retaining tabs allowing it to lock into place.

Fig 2: SRT8 Fluid Cooler And Hoses
Courtesy of CHRYSLER LLC
Slide return hose to reservoir (3) onto outlet of cooler (2). Install clamp (4) securing hose in place.
Slide return hose from gear (5) onto inlet of cooler (2). Install clamp (1) securing hose in place.
Install belly pan. Refer to INSTALLATION .
Lower vehicle.

Fig 3: Disconnecting/Connecting Battery Cables
Courtesy of CHRYSLER LLC
Connect battery negative cable (2) to battery post. It is important that this is performed properly. Refer to STANDARD PROCEDURE .
Fill and bleed power steering system. See STANDARD PROCEDURE .
