Power Steering System

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

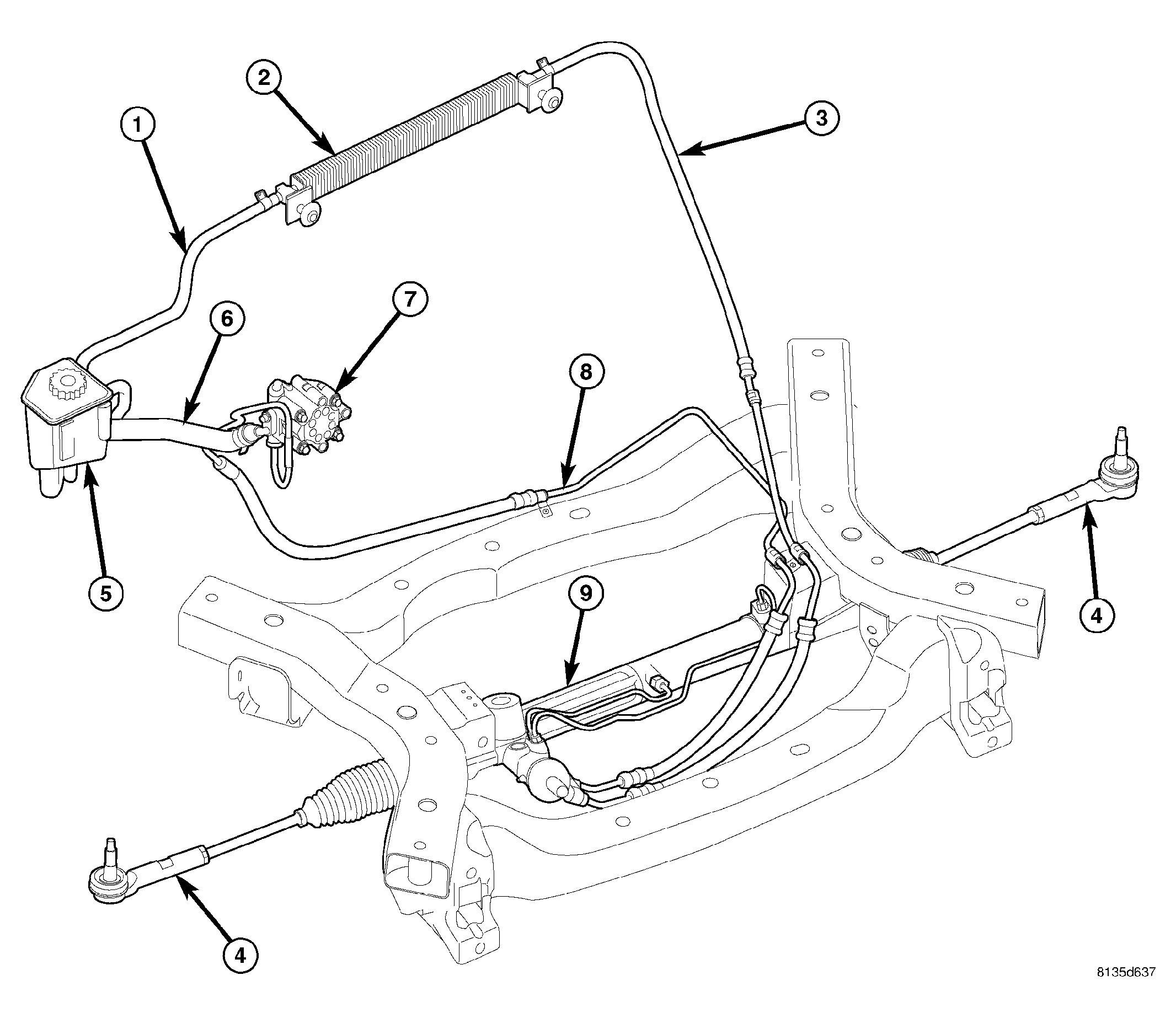

Fig 1: Rwd Power Steering System

Courtesy of CHRYSLER LLC

RWD Power steering systems consist of:

Steering column
Rack and pinion steering gear (9)
Belt driven hydraulic steering pump (7)
Pump pressure (8), return (1&3) and supply (6) hoses
Oil Cooler (2)
Remote Reservoir (5)
Inner & Outer tie rod ends (4)

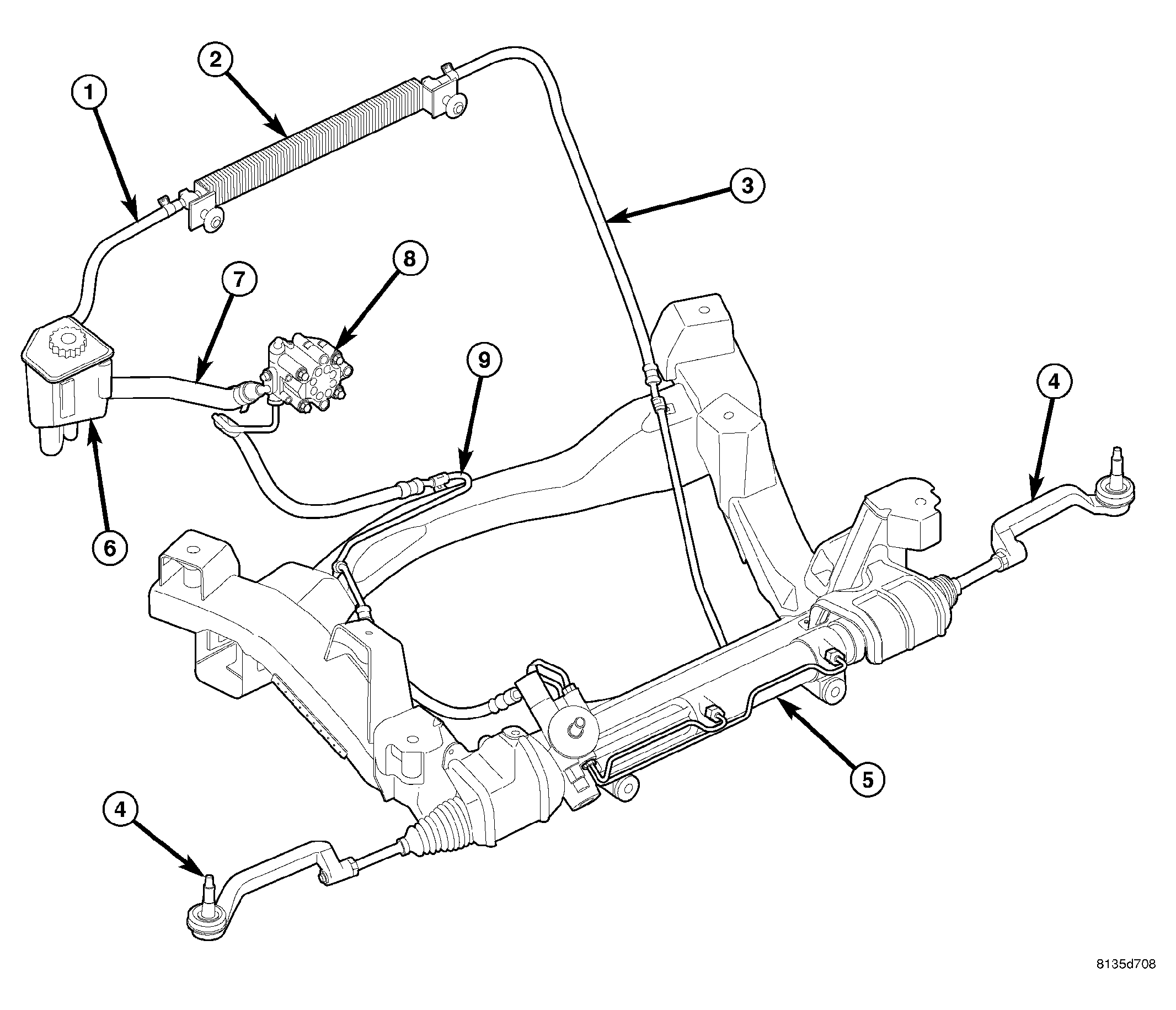

Fig 2: AWD Power Steering System

Courtesy of CHRYSLER LLC

AWD Power steering systems consist of:

Steering column
Rack and pinion steering gear (5)
Belt driven hydraulic steering pump (8)
Pump pressure (9), return (1&3) and supply (7) hoses
Oil Cooler (2)
Remote Reservoir (6)
Inner & Outer tie rod ends (4)
