Coupling - Steering

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully extend or pull out adjustable steering column.
  2. Center the steering wheel and lock the steering wheel with a steering wheel holder.
  3. Raise and support vehicle. Refer to STANDARD PROCEDURE .

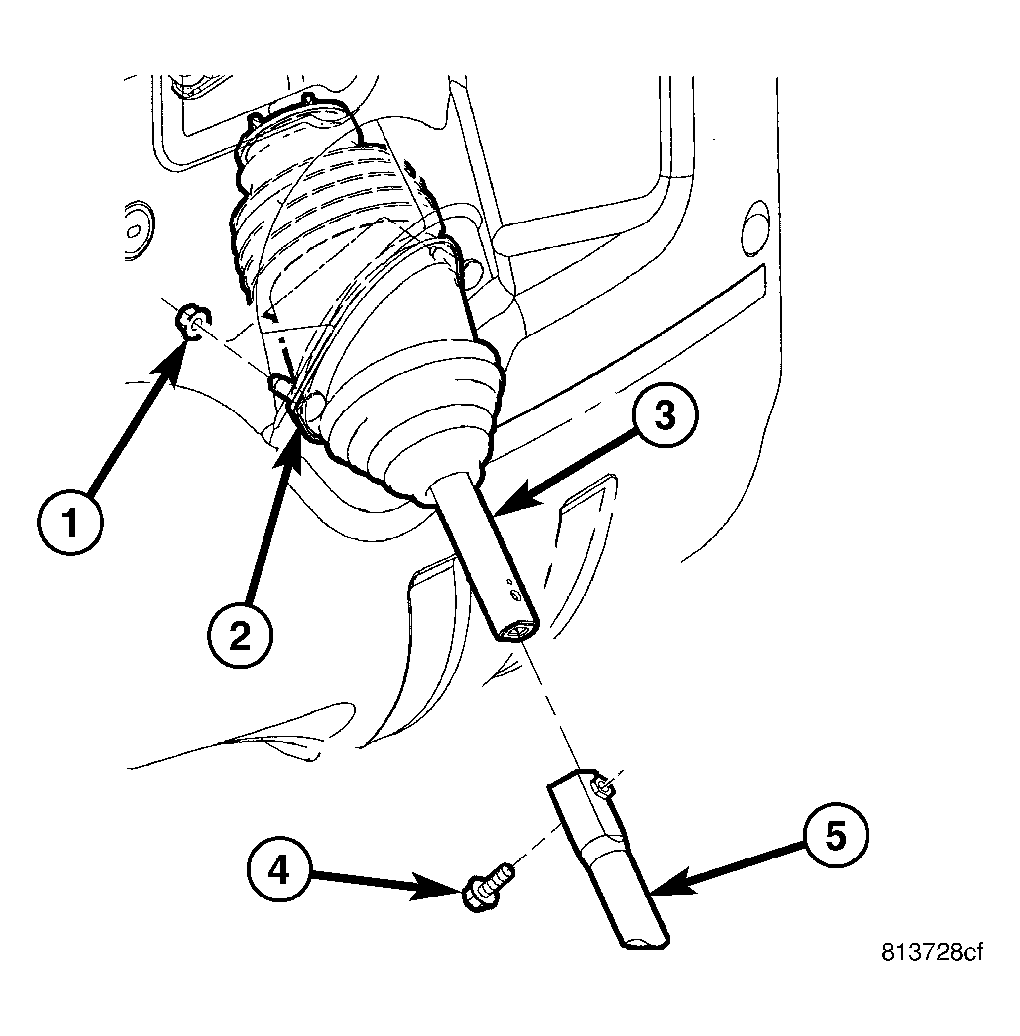

    Fig 1: Shaft Retaining Nuts
    GC0013221Courtesy of CHRYSLER LLC
  4. Remove the pinch bolt (4) connecting the steering shaft (3) to the lower steering coupling shaft (5).
  5. Separate the lower coupling (5) from the steering shaft (3).

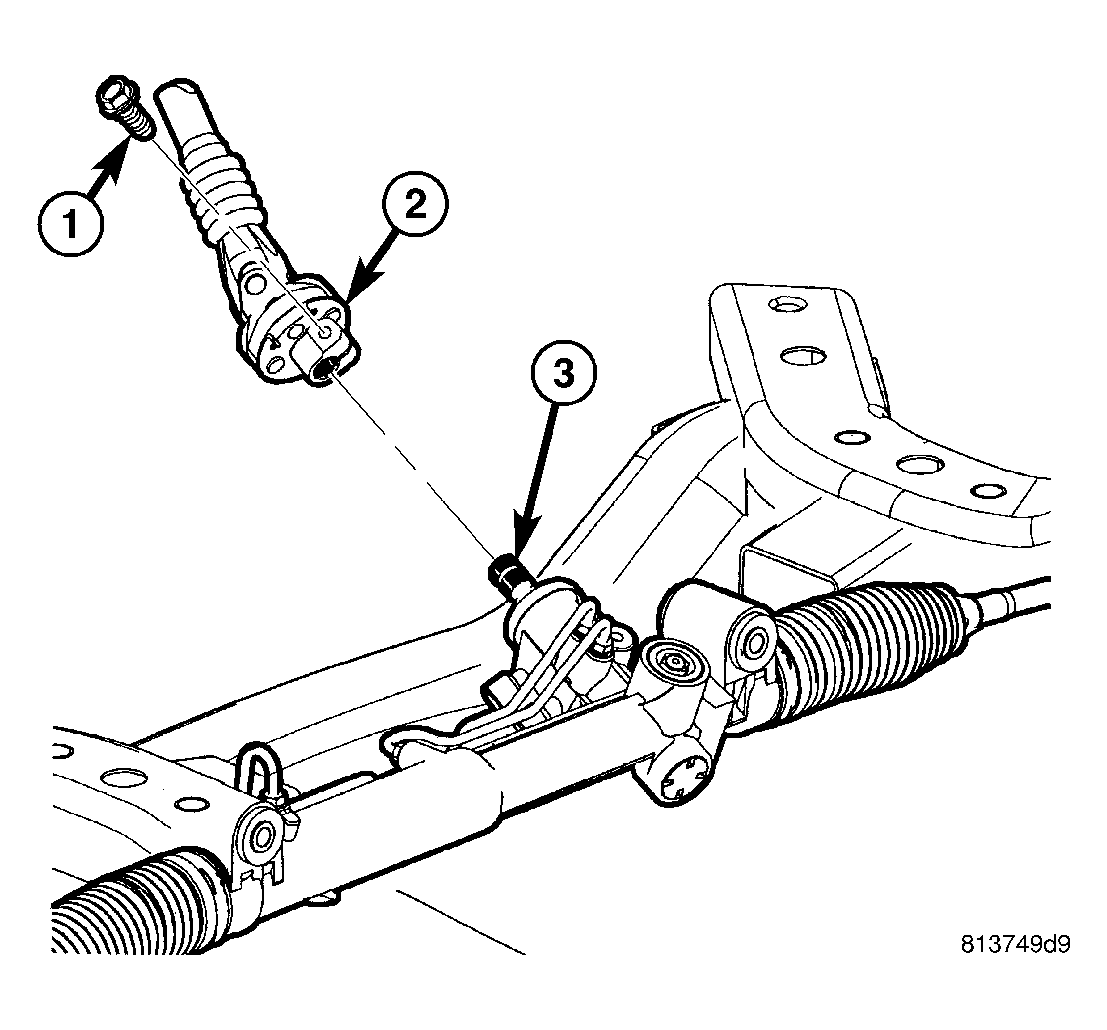

    Fig 2: Steering Coupling
    GC0013230Courtesy of CHRYSLER LLC
  6. Remove the pinch bolt (1) from the steering coupling (2) at the steering gear (3).
  7. Carefully slide the coupling (2) from the steering gear (3).
  8. Remove the steering coupling (2) from the vehicle.
