Circuit Schematic

WARNING: This page is about a different car, the 2008 Dodge Magnum, 2008 Dodge Charger, and 2008 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

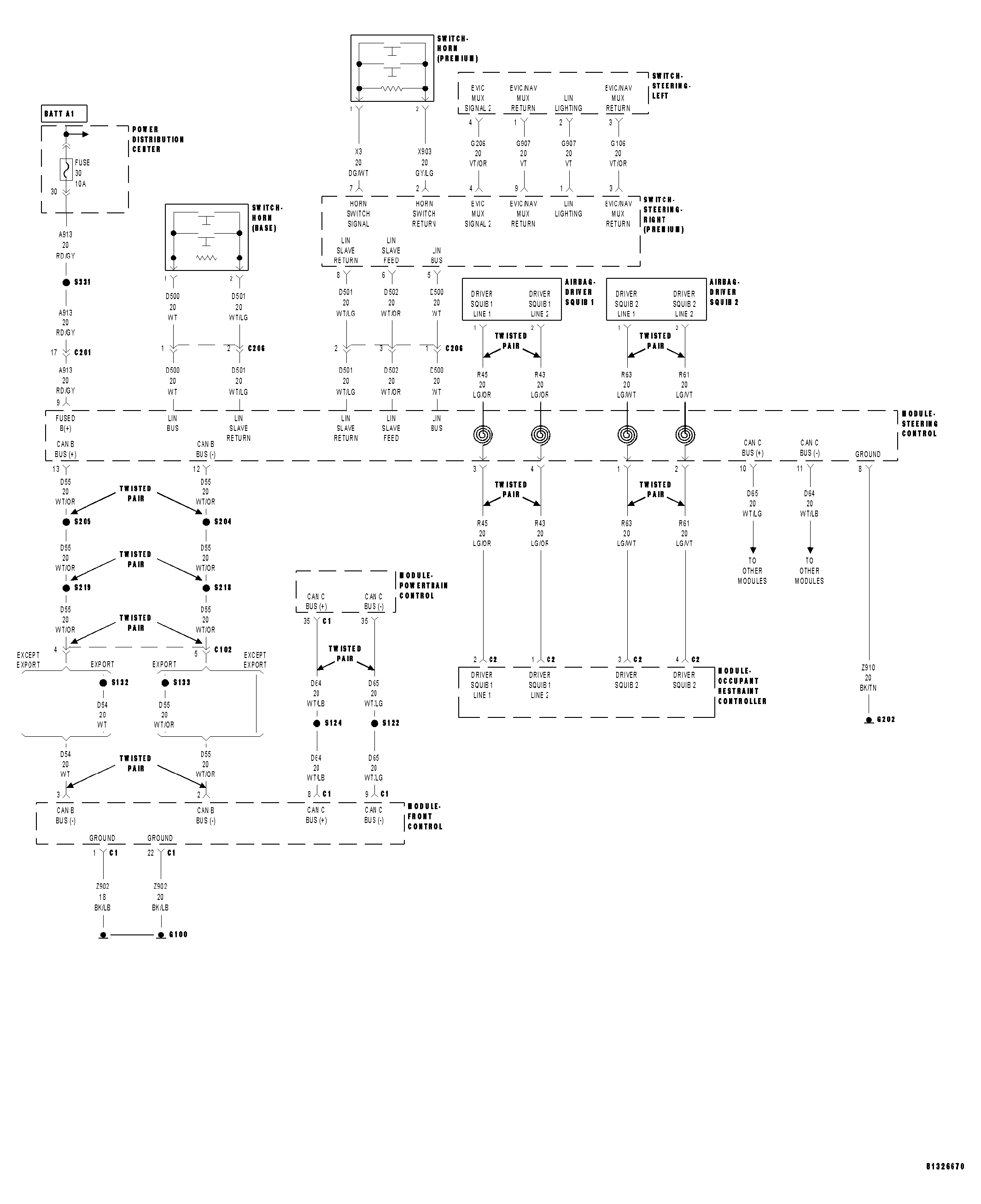

Fig 1: Steering Control Module Circuit Schematic
GC0013161Courtesy of CHRYSLER LLC
