Section 22 (Ignition System (Service Information)): Coil-Ignition: Removal: 2.7L

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Ignition Coils
GC0002366Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect negative battery cable.
  2. Remove the intake manifold, (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD - REMOVAL)
  3. Prior to removing the ignition coils, spray compressed air around the coil area and spark plug.

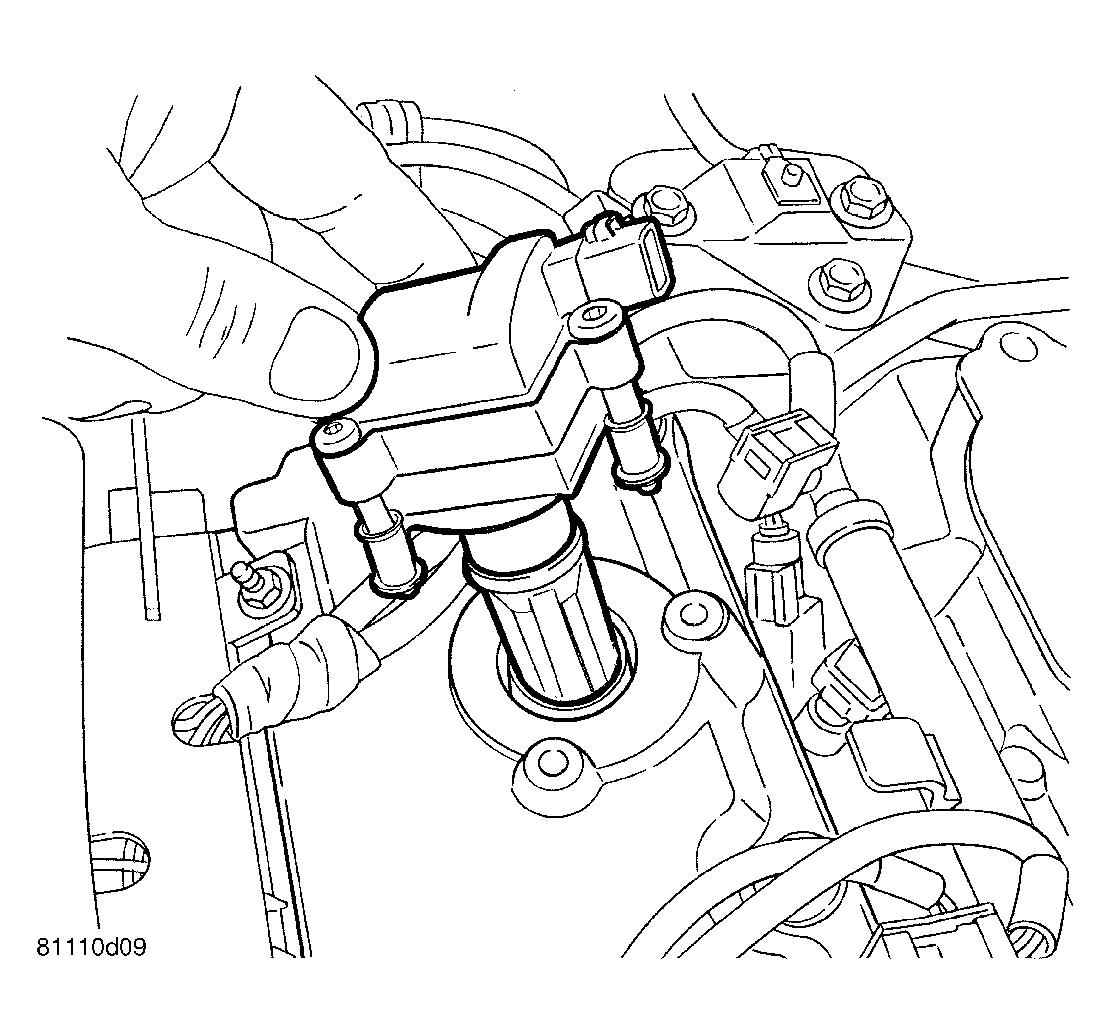

    Fig 2: Removing/Installing Ignition Coil
    GC0002368Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove electrical connector from ignition coil.
  5. Remove 2 fasteners from ignition coil assembly.
  6. Remove ignition coil assembly.
