Section 22 (Ignition System (Service Information)): Coil-Ignition: Installation: 5.7/6.1L

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

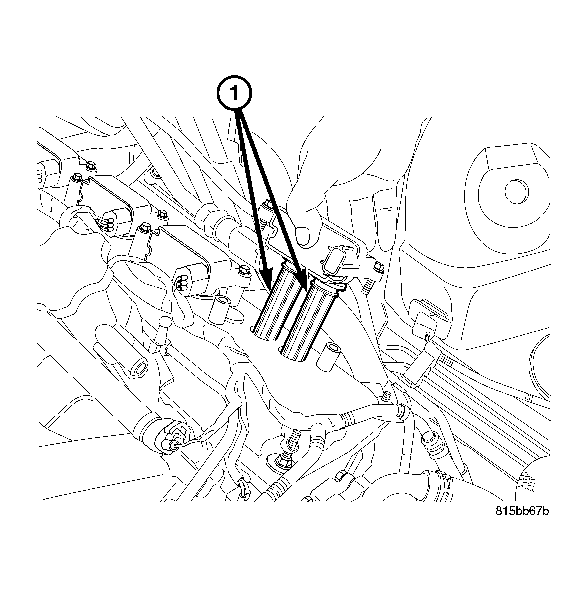

Fig 1: Removing/Installing Ignition Coil
GC0038216Courtesy of DAIMLERCHRYSLER CORP.
  1. Before installing coil(s), apply dielectric grease to inside of spark plug boots (1).
    Fig 2: Ignition Coil Mounting Bolts - 5.7L/6.1L
    GC0038691Courtesy of DAIMLERCHRYSLER CORP.
  2. Position ignition coil into valve cover and push both spark plug boots onto each spark plug.
  3. Install two coil mounting bolts (3) and tighten to 12 N.m (105 in. lbs.).
  4. Connect electrical connector (1) to coil and lock connector.
