Output Speed Sensor

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

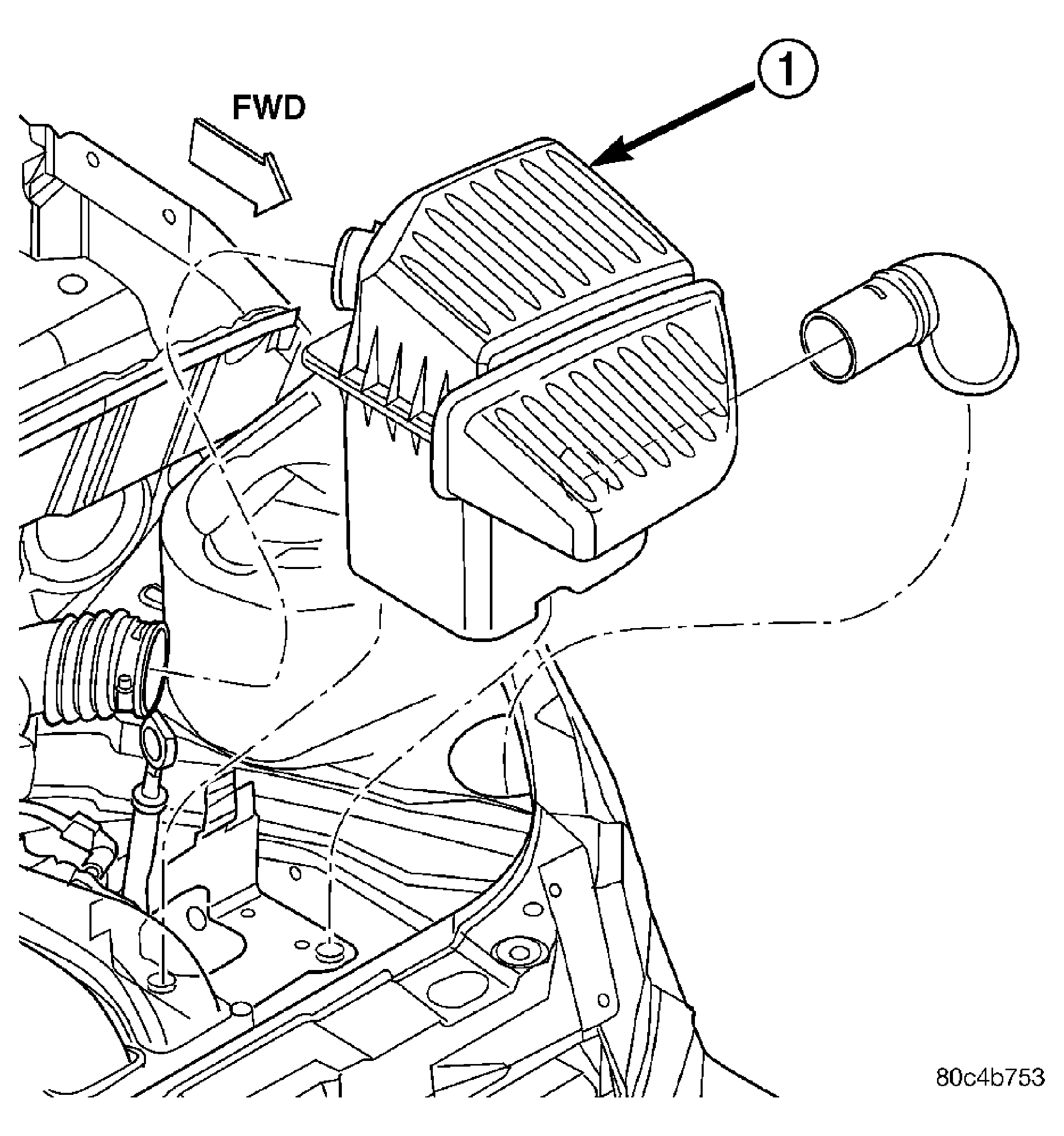

Fig 1: Removing/Installing Air Cleaner Assembly

Courtesy of CHRYSLER LLC

1 - AIR CLEANER ASSEMBLY

CAUTION: When disconnecting speed sensor connector, be sure that the connector weather seal does not fall off or remain in old sensor.

Disconnect the battery cables.
Remove air cleaner assembly (1). See Fig 1.

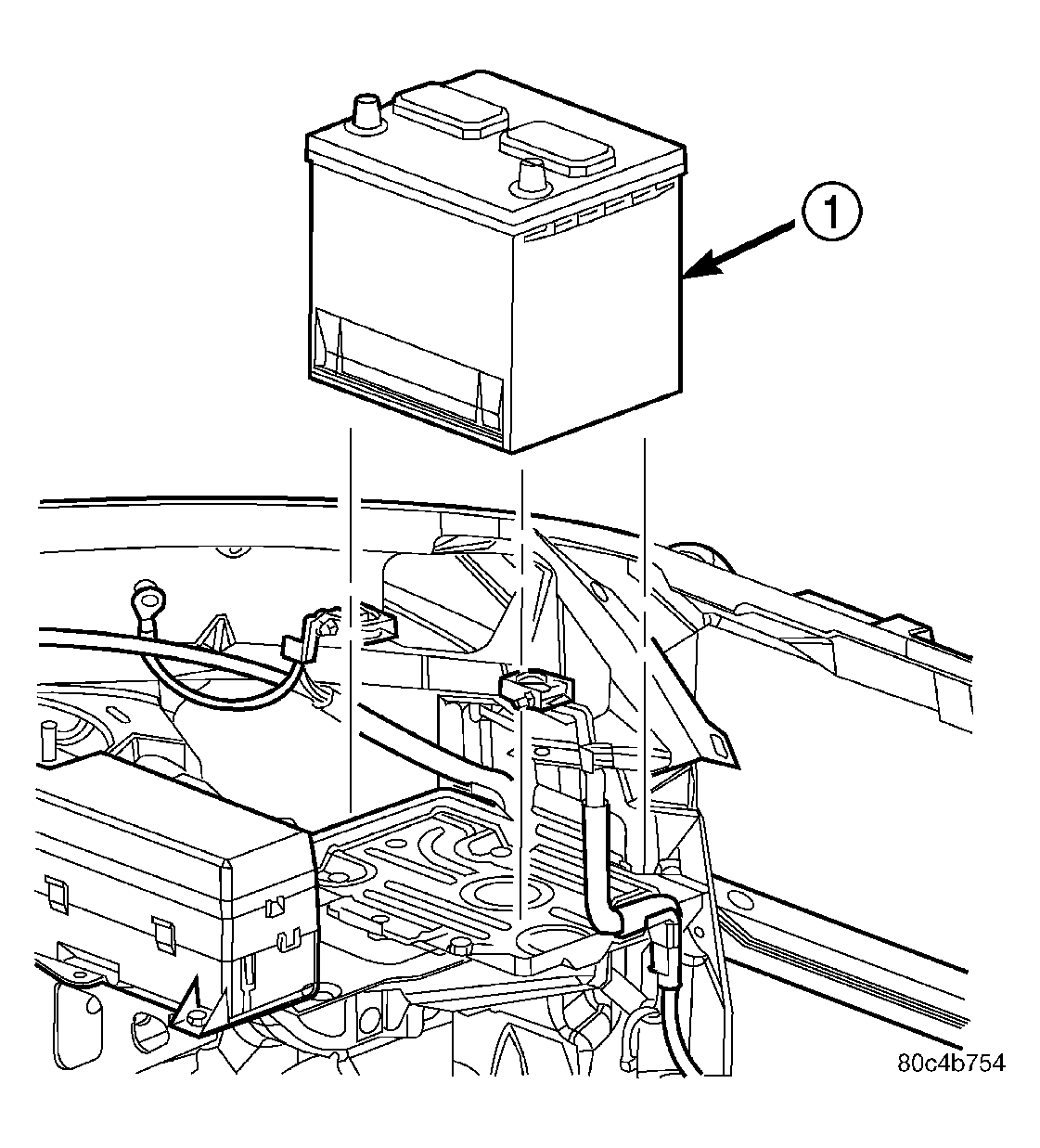

Fig 2: Removing/Installing Battery
Courtesy of CHRYSLER LLC

1 - BATTERY
Remove the battery hold down clamp and remove the battery (1). See Fig 2.

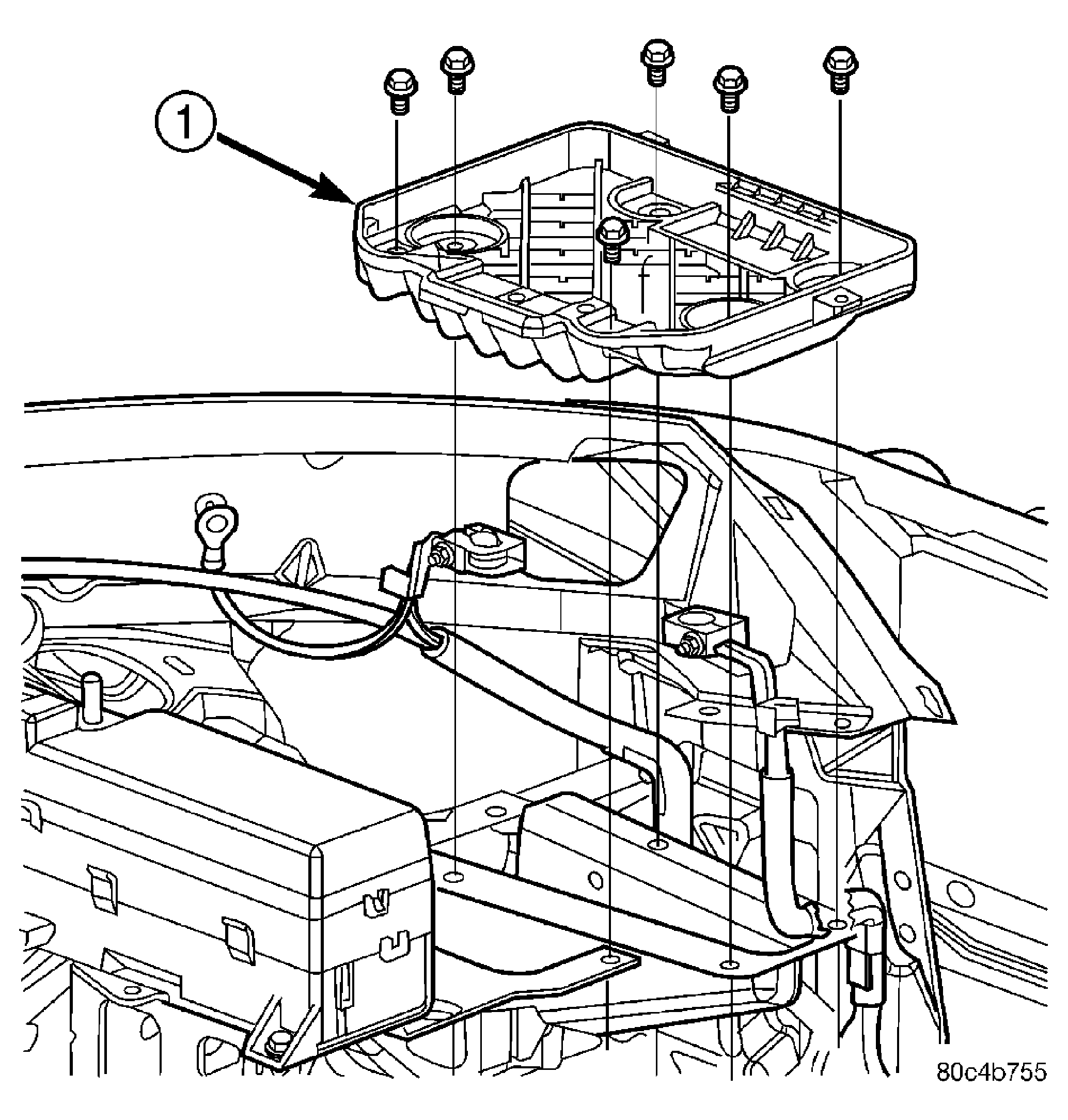

Fig 3: Removing/Installing Battery Tray
Courtesy of CHRYSLER LLC
Remove the battery tray (1). See Fig 3.

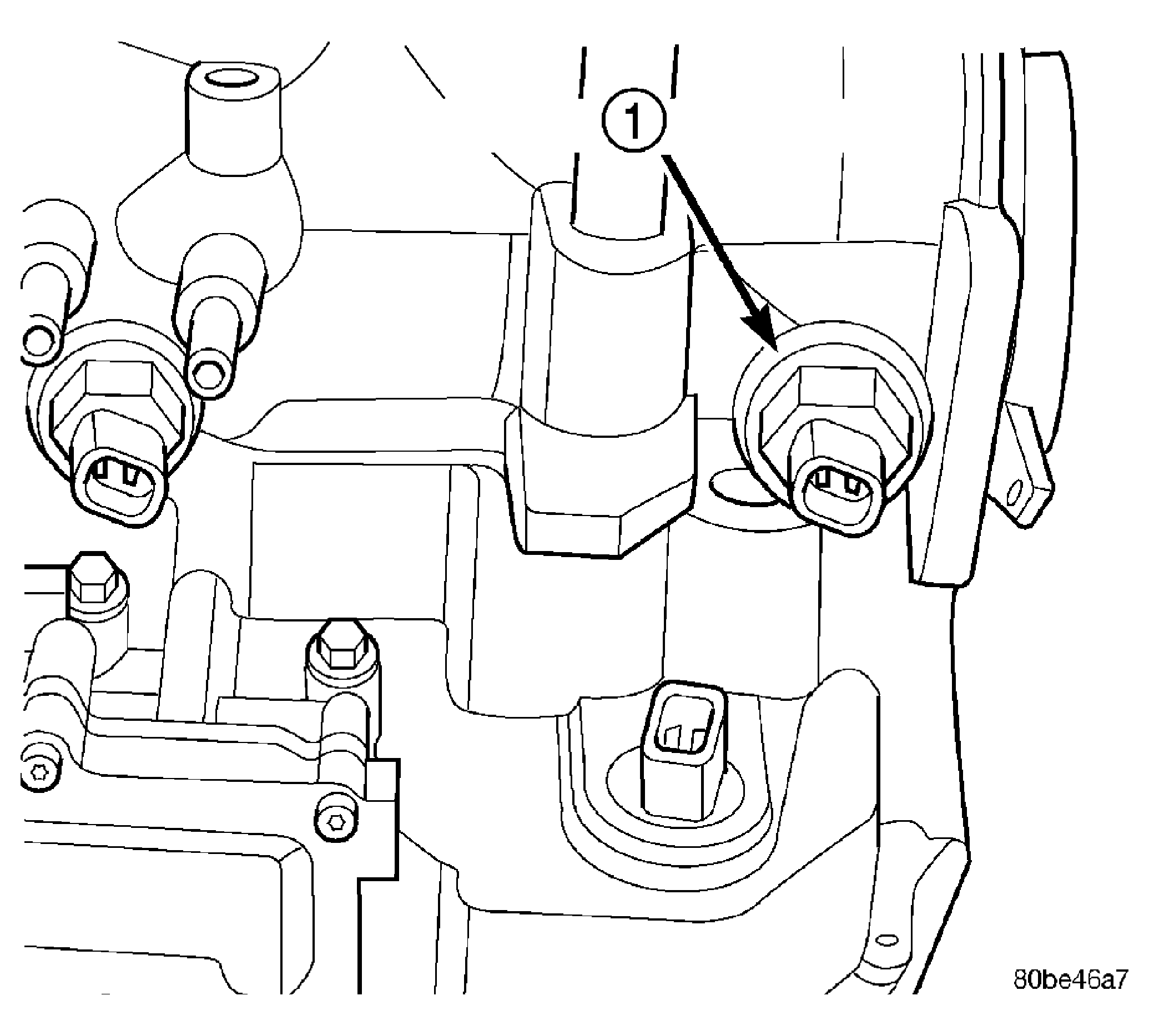

Fig 4: Identifying Output Speed Sensor
Courtesy of CHRYSLER LLC

1 - OUTPUT SPEED SENSOR
Disconnect output speed sensor connector.
Unscrew and remove output speed sensor (1). See Fig 4.

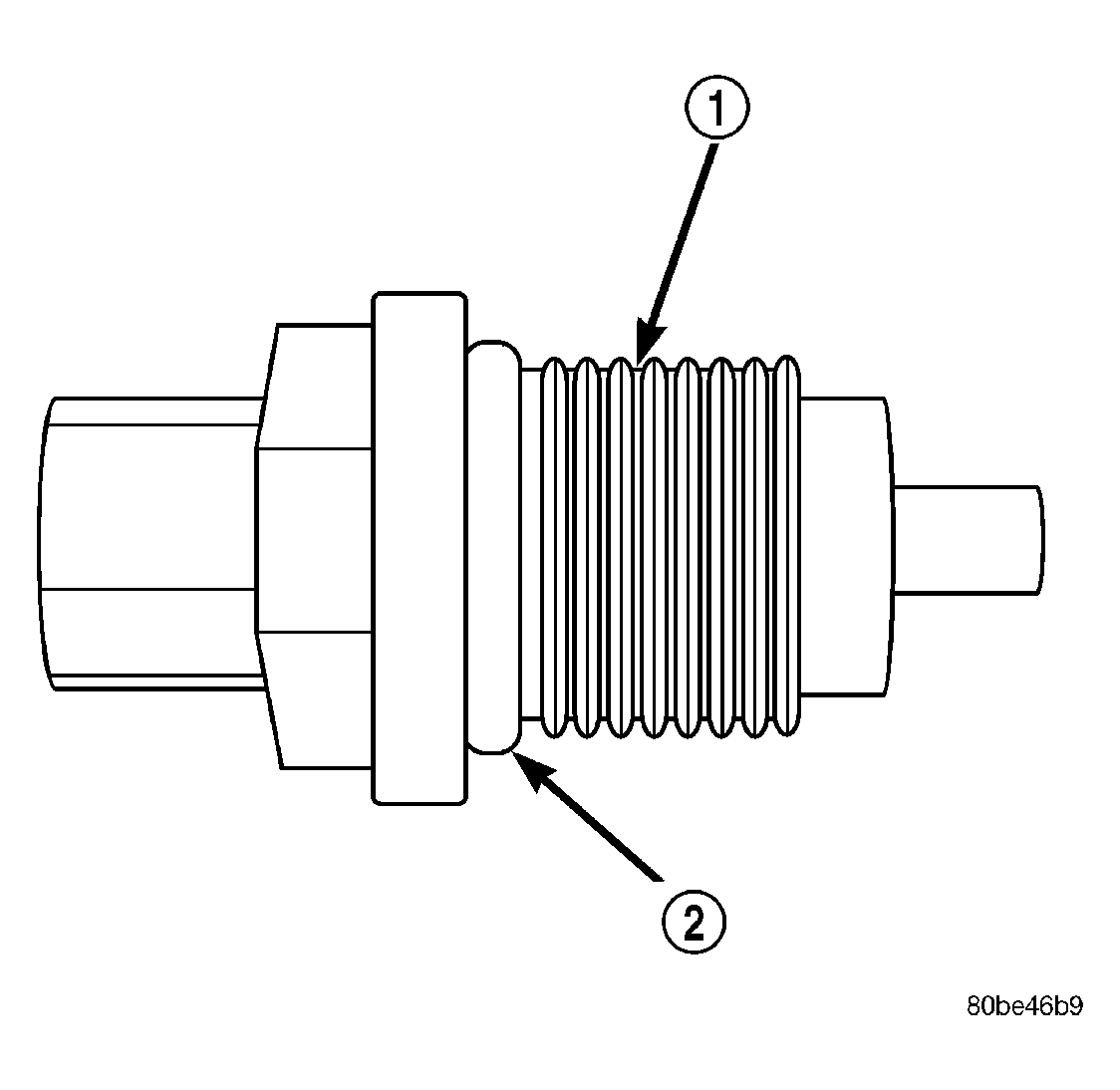

Fig 5: Identifying O-Ring Location
Courtesy of CHRYSLER LLC

1 - OUTPUT SPEED SENSOR

2 - O-RING
Inspect speed sensor o-ring (2) and replace if necessary. See Fig 5.
