Input Speed Sensor
WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

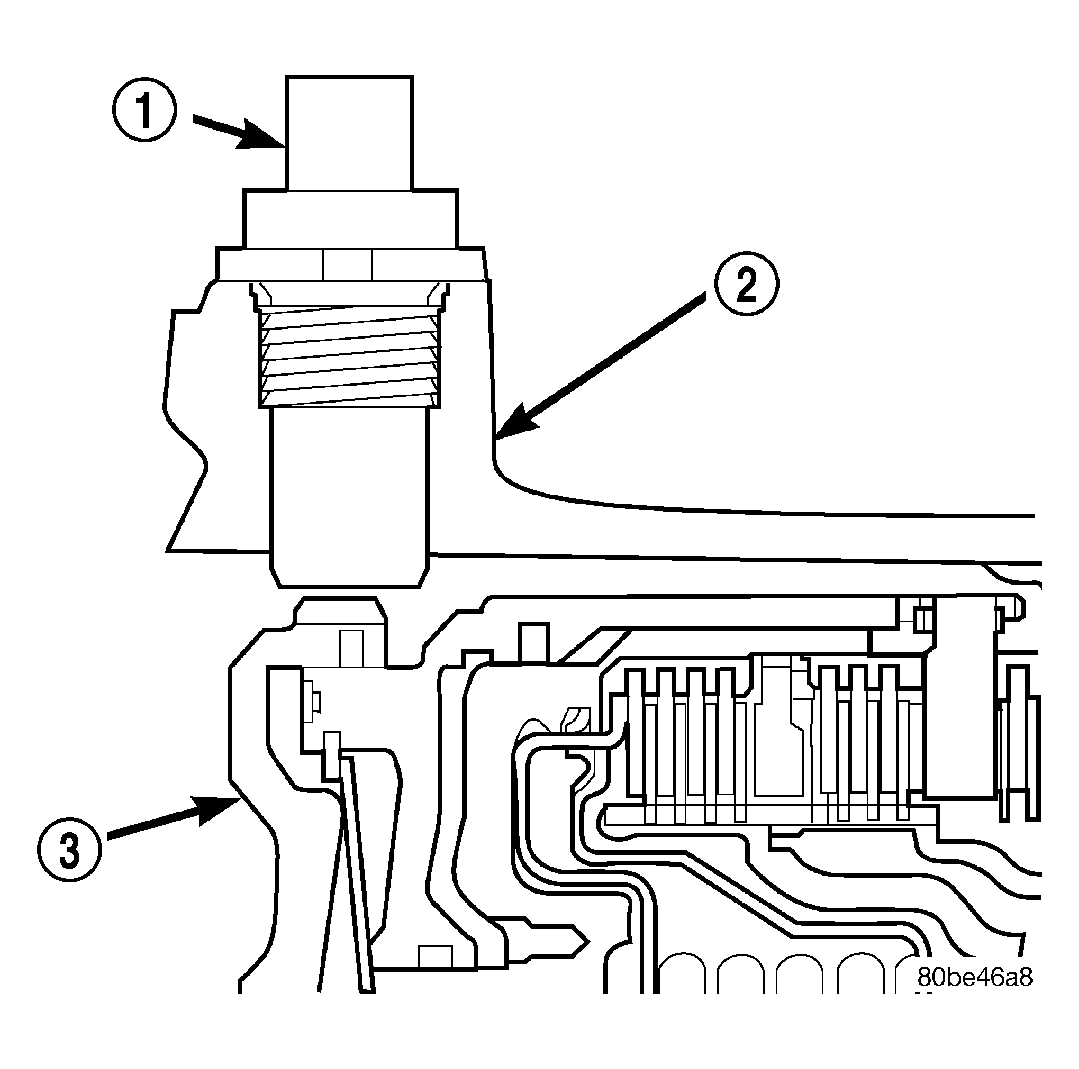

| 1 - INPUT SPEED SENSOR |
| 2 - TRANSAXLE CASE |
| 3 - INPUT CLUTCH HUB |
The Input Speed Sensor (1) provides information on how fast the input shaft is rotating. As the teeth of the input clutch hub (3) pass by the sensor coil, an AC voltage is generated and sent to the PCM/TCM. The PCM/TCM interprets this information as input shaft RPM. See Fig 1.
The PCM/TCM compares the input speed signal with output speed signal to determine the following:
- Transmission gear ratio
- Speed ratio error detection
- CVI calculation
The PCM/TCM also compares the input speed signal and the engine speed signal to determine the following:
- Torque converter clutch slippage
- Torque converter element speed ratio
