Brake Transmission Shift Interlock System
WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

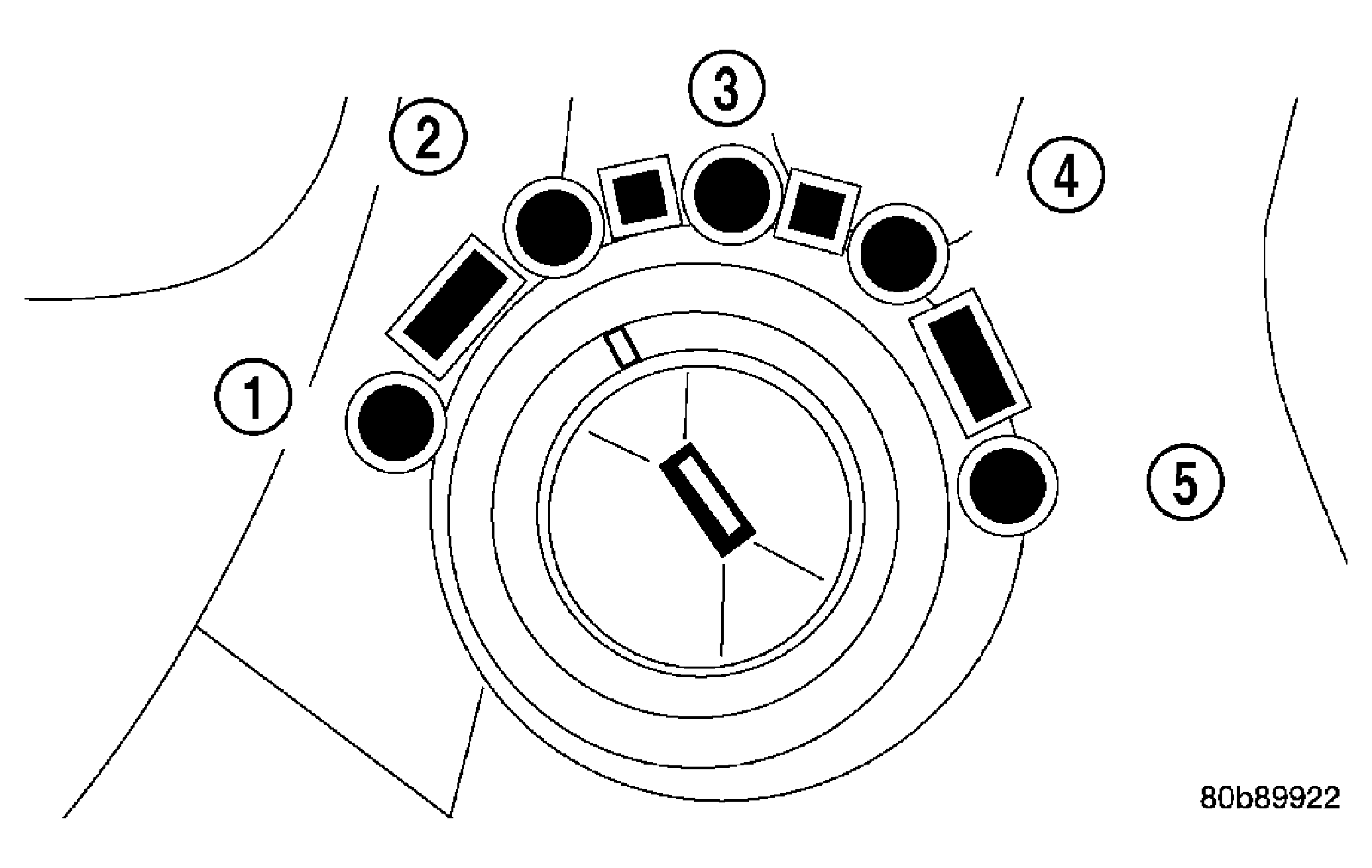

| 1 - ACC |
| 2 - LOCK |
| 3 - OFF |
| 4 - ON/RUN |
| 5 - START |
The Brake Transmission Shifter/Ignition Interlock (BTSI) is a cable and solenoid operated system that prevents the transmission gear shifter from being moved out of PARK without a driver in place.
Refer to the following chart that expected shifter response, depending on ignition key/switch and brake pedal positions. See Fig 1.
