Brake/Transmission Shift Interlock System: Adjustment

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing Gearshift Knob

Courtesy of CHRYSLER LLC

1 - SHIFTER KNOB

2 - SET SCREW

Loosen set screw (2) and remove knob (1) from shifter handle. See Fig 1.

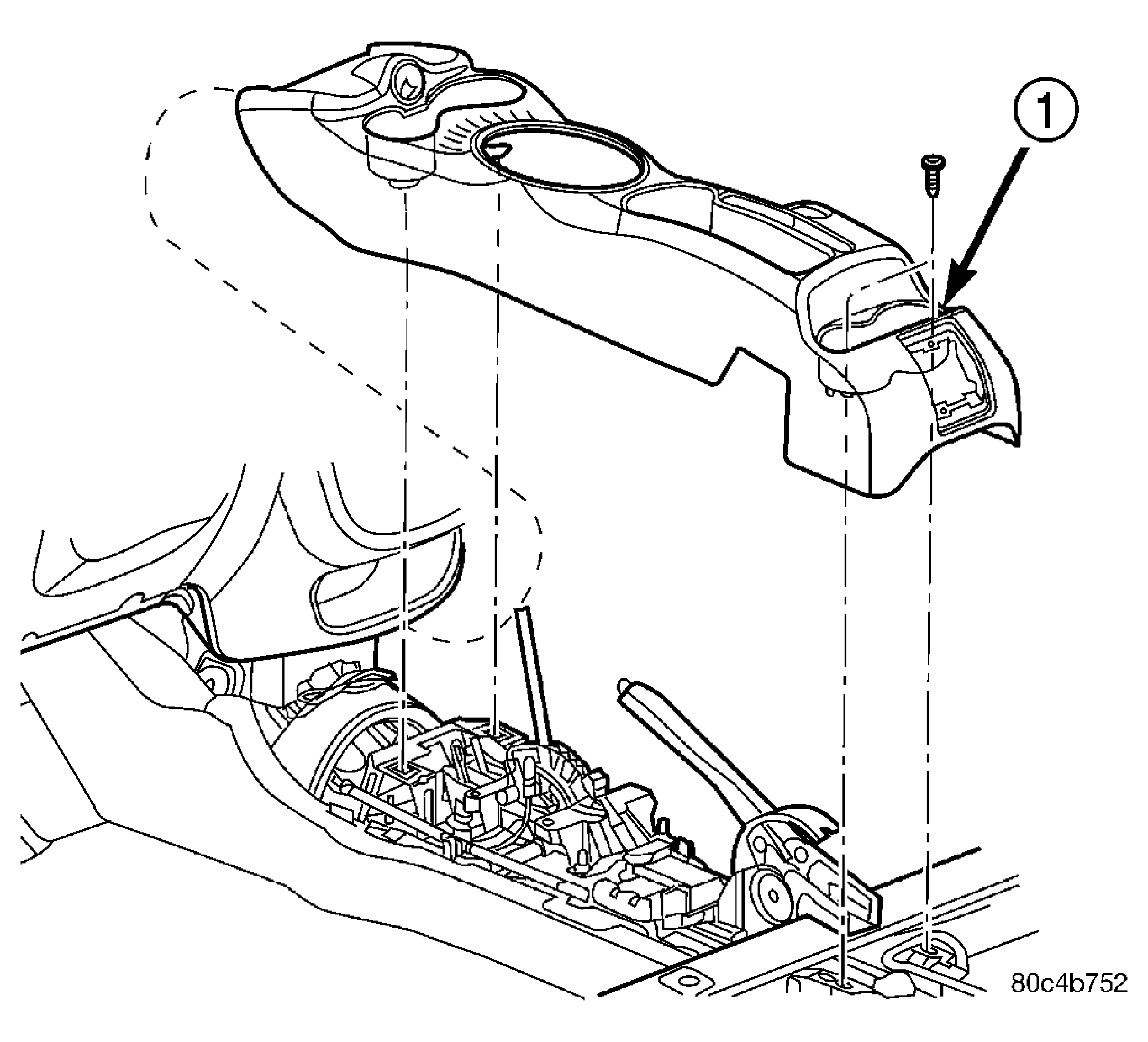

Fig 2: Removing/Installing Center Console - Typical
Courtesy of CHRYSLER LLC

1 - CENTER CONSOLE
Remove the center console assembly (1). See Fig 2.

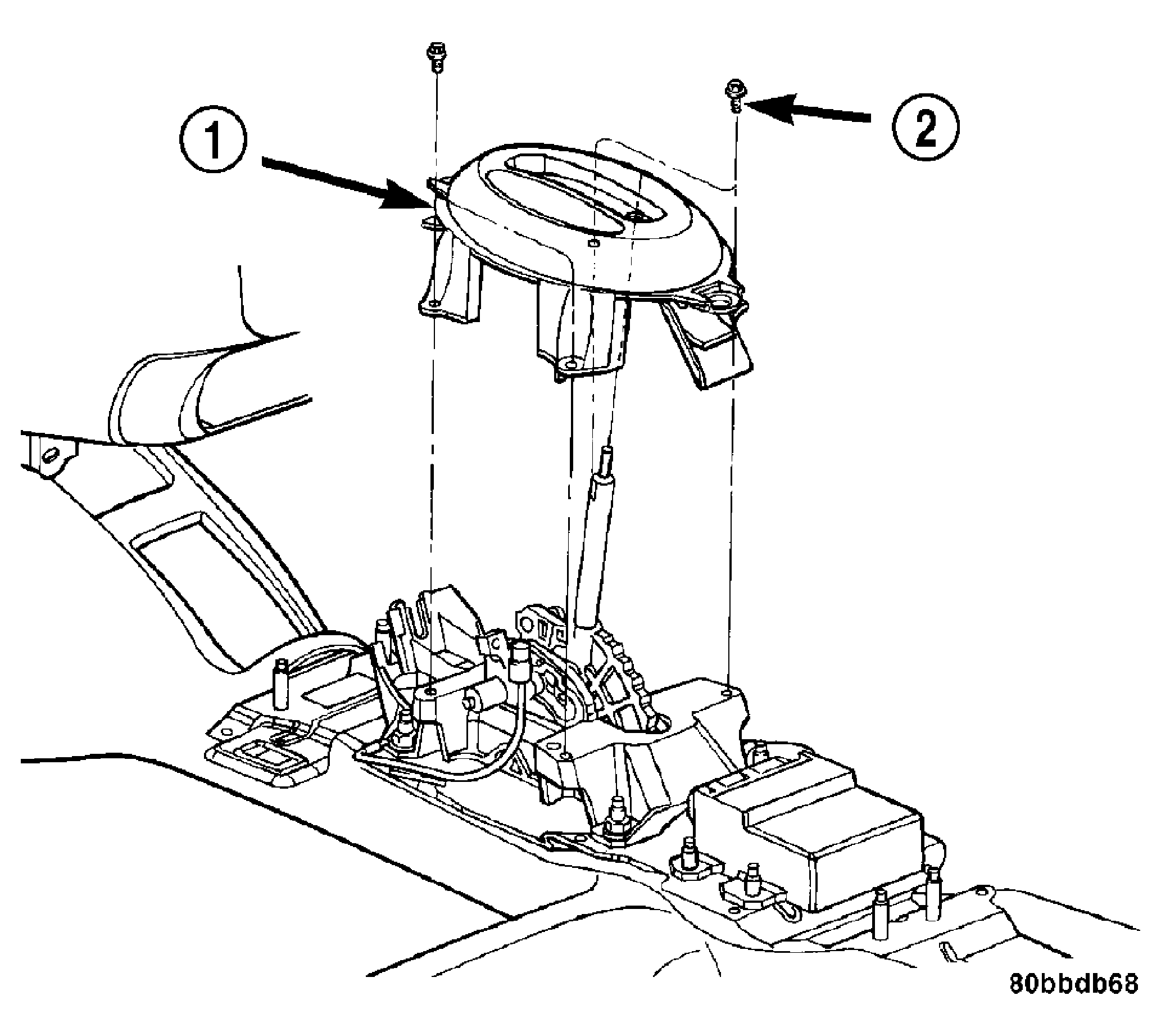

Fig 3: Removing/Installing Shifter Bezel
Courtesy of CHRYSLER LLC

1 - BEZEL

2 - SCREW (4)
Remove shifter bezel (1). See Fig 3.
Adjust interlock cable/system as follows: Pry up on cable adjuster lock to release and allow cable to "self-adjust". Lock cable adjustment by pressing down on the adjuster lock until bottomed at the cable housing.
Verify correct system operation. Refer to appropriate verification procedure.
Install shifter bezel (1).

Fig 4: Removing/Installing Center Console - Typical
Courtesy of CHRYSLER LLC

1 - CENTER CONSOLE
Install center console assembly (1). See Fig 4.

Fig 5: Removing/Installing Gearshift Knob
Courtesy of CHRYSLER LLC

1 - SHIFTER KNOB

2 - SET SCREW
Install gearshift knob (1) and tighten set screw (2) to 2 N.m (17 in. lbs.) torque. See Fig 5.
