Interlock Mechanism

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing Steering Column Lower Cover

Courtesy of CHRYSLER LLC

1 - LOWER COVER

Remove the steering column lower cover (1). See Fig 1.

Fig 2: Removing/Installing Steering Column Shrouds
Courtesy of CHRYSLER LLC

1 - UPPER SHROUD

2 - LOWER SHROUD

Remove the steering column upper and lower shrouds (1,2). See Fig 2.

Fig 3: View Of Ignition Key/Switch Positions

Courtesy of CHRYSLER LLC

1 - ACC

2 - LOCK

3 - OFF

4 - ON/RUN

5 - START

Turn the ignition key to the "OFF" or "ON/RUN" position. See Fig 3.

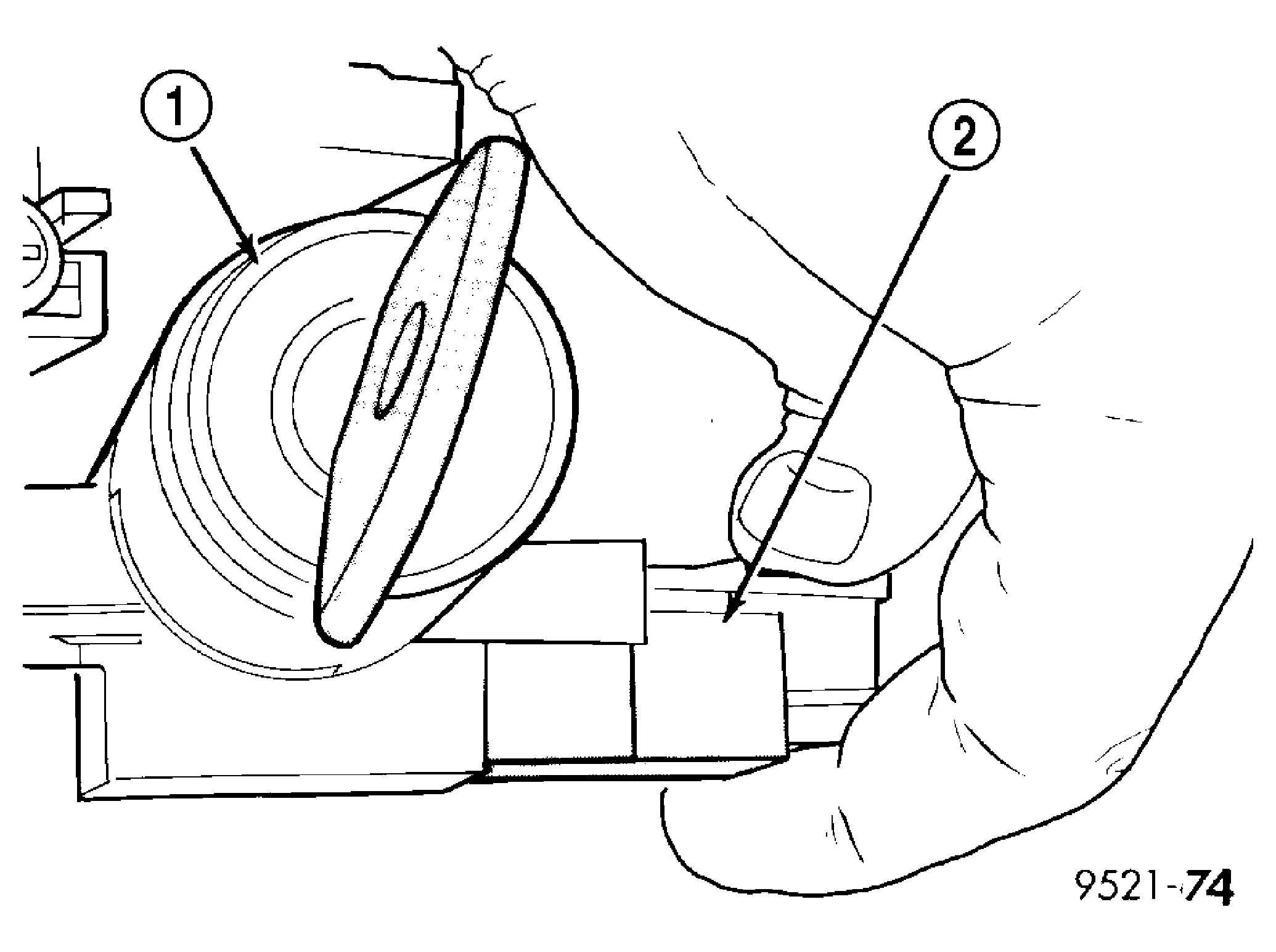

Fig 4: Locating Interlock Cable & Connector
Courtesy of CHRYSLER LLC

1 - IGNITION LOCK CYLINDER

2 - INTERLOCK CABLE
Grasp the interlock cable and connector firmly. Remove the interlock cable (2). See Fig 4.

Fig 5: Removing/Installing Interlock Mechanism
Courtesy of CHRYSLER LLC

1 - MOUNTING SCREW

2 - INTERLOCK MECHANISM
Remove the two interlock mechanism-to-steering column attaching screws (1). See Fig 5. Remove the interlock housing (2).
