Gearshift Cable

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

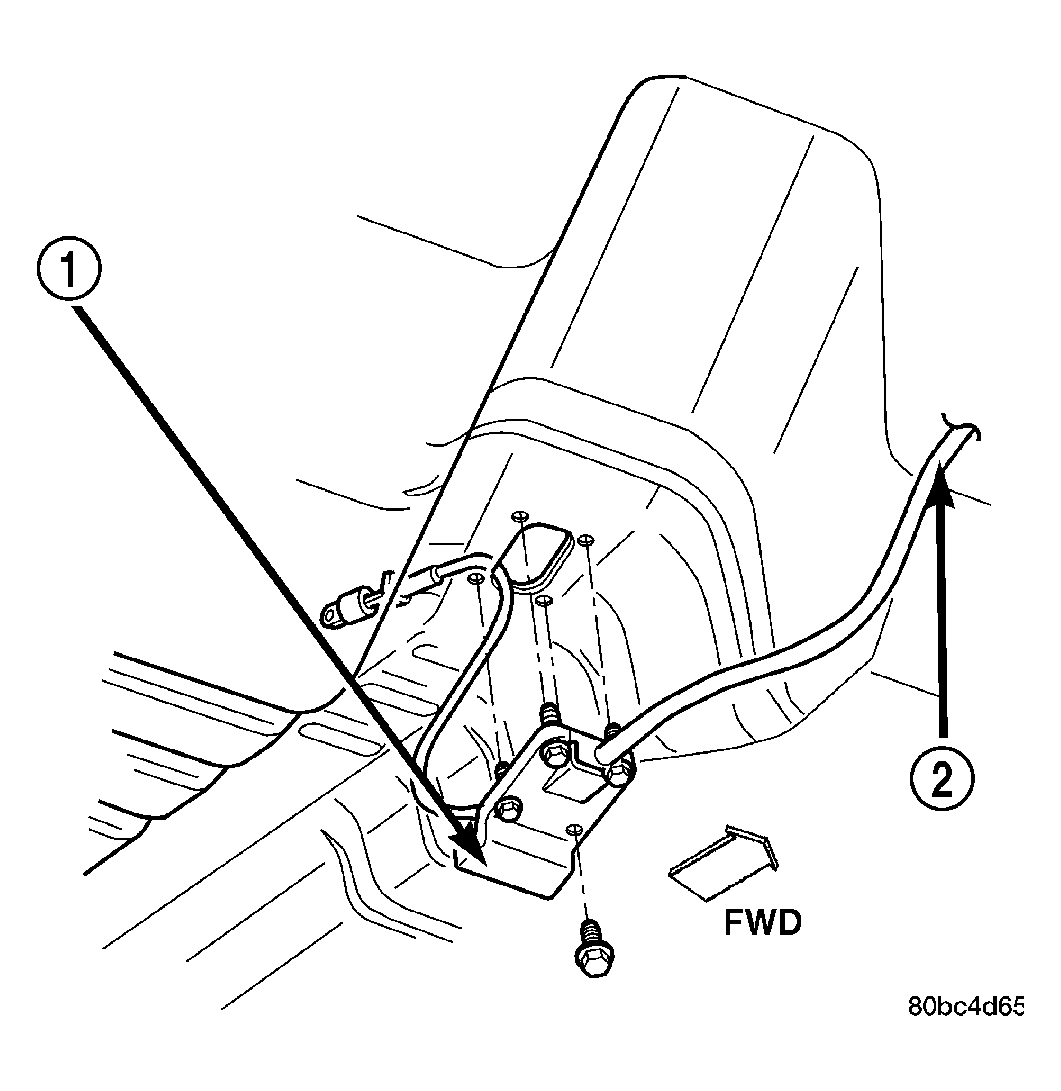

Fig 1: Identifying Grommet Plate/Shift Cable At Floor Pan
GC0020604Courtesy of CHRYSLER LLC
1 - GROMMET PLATE
2 - SHIFT CABLE
  1. Install cable assembly (2) through floor pan opening and secure to floor pan with grommet plate (1) and one screw. Make sure the three grommet plate studs protrude through cable assembly and floor pan and tighten screw to 7 N.m (60 in. lbs.). See Fig 1.
  2. Route transaxle end of cable assembly into engine compartment and over transaxle assembly.

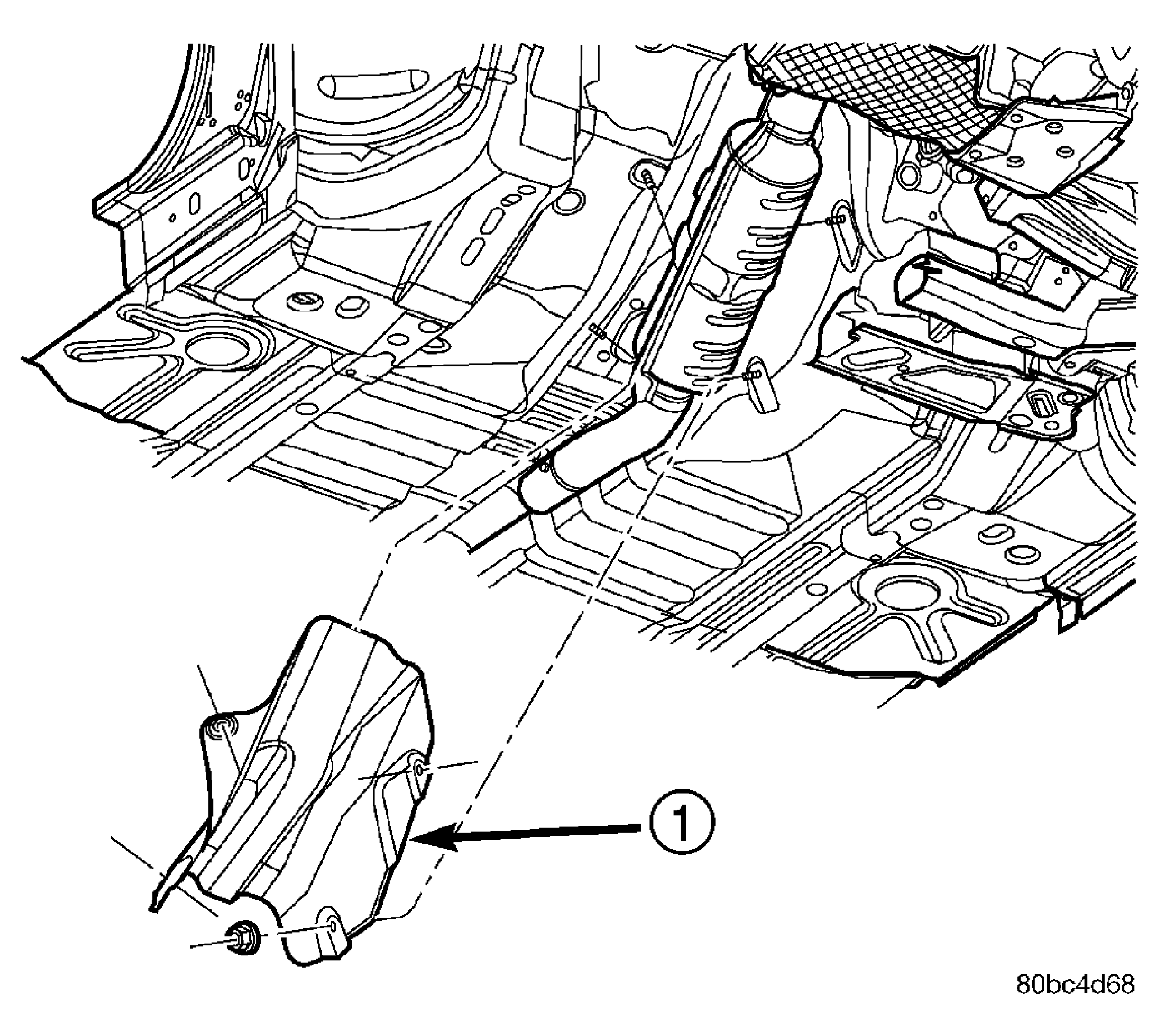

    Fig 2: Removing/Installing Speed Sensor & Pinion Converter Heat Shield
    GC0020149Courtesy of CHRYSLER LLC
    1 - CONVERTER HEAT SHIELD
  3. Install catalytic converter heat shield (1). See Fig 2.

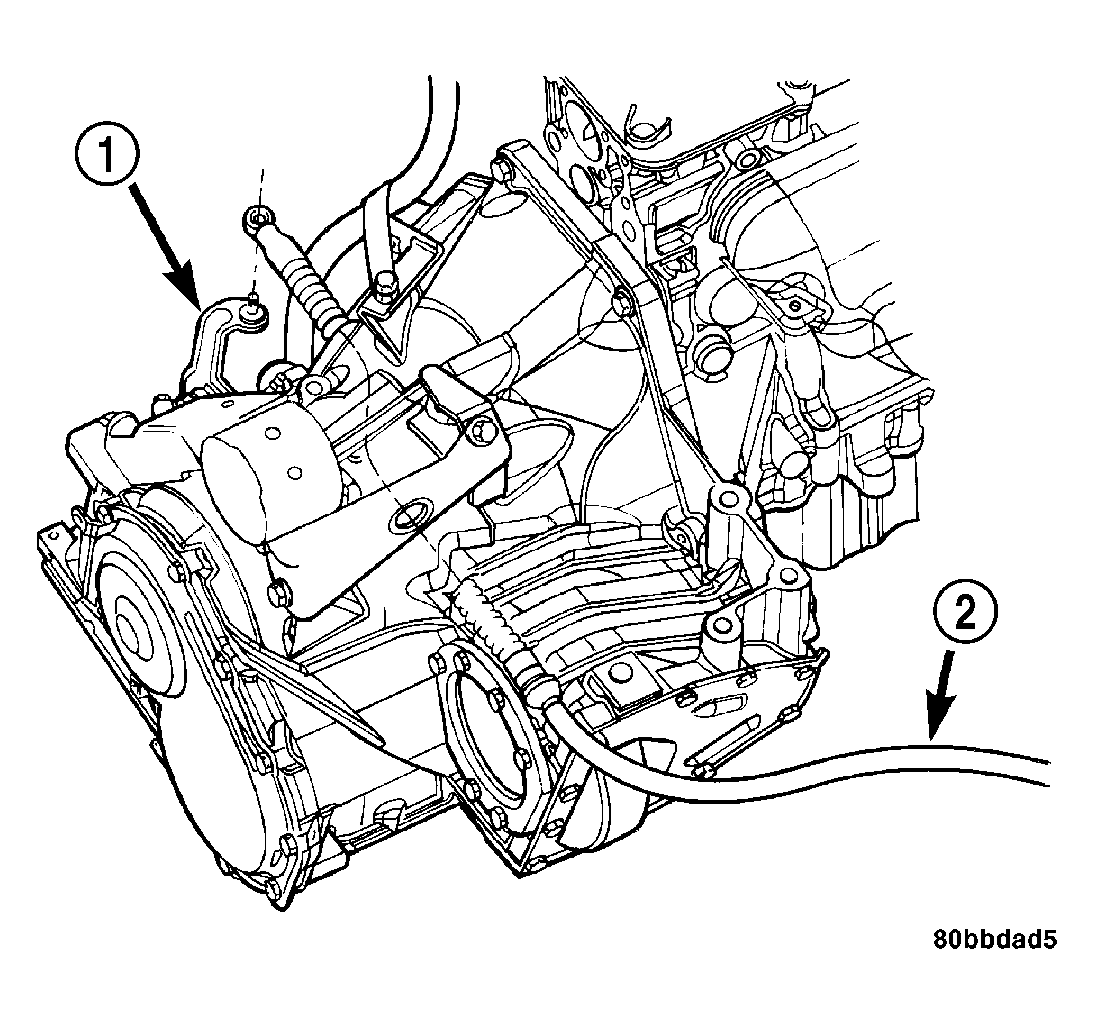

    Fig 3: Identifying Gear Shift Cable At Transaxle
    GC0020603Courtesy of CHRYSLER LLC
    1 - SHIFT LEVER
    2 - SHIFT CABLE
  4. Install gear shift cable (2) to bracket and connect to shift lever (1). See Fig 3.
  5. Lower vehicle.

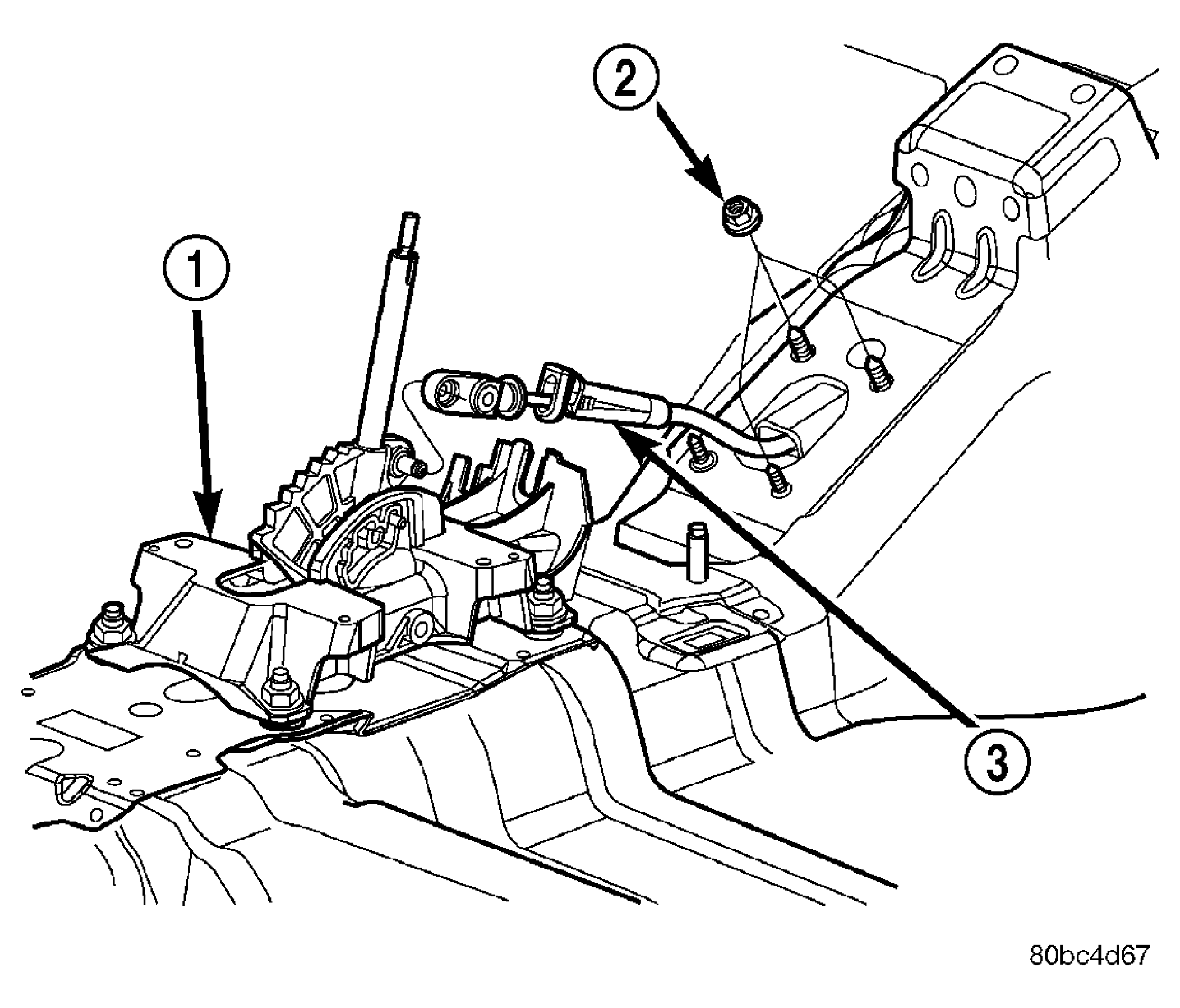

    Fig 4: Identifying Gearshift Cable & Shifter Assembly
    GC0020602Courtesy of CHRYSLER LLC
    1 - SHIFTER ASSEMBLY
    2 - GROMMET PLATE NUT
    3 - SHIFT CABLE
  6. Install and tighten the three grommet plate-to-floor pan nuts (2). See Fig 4. Tighten to 6 N.m (50 in. lbs.) torque.
  7. Connect gearshift cable (3) to shifter assembly (1).
    Fig 5: Removing/Installing Shifter Bezel
    GC0020601Courtesy of CHRYSLER LLC
    1 - BEZEL
    2 - SCREW (4)
  8. Install shifter bezel (1). See Fig 5.

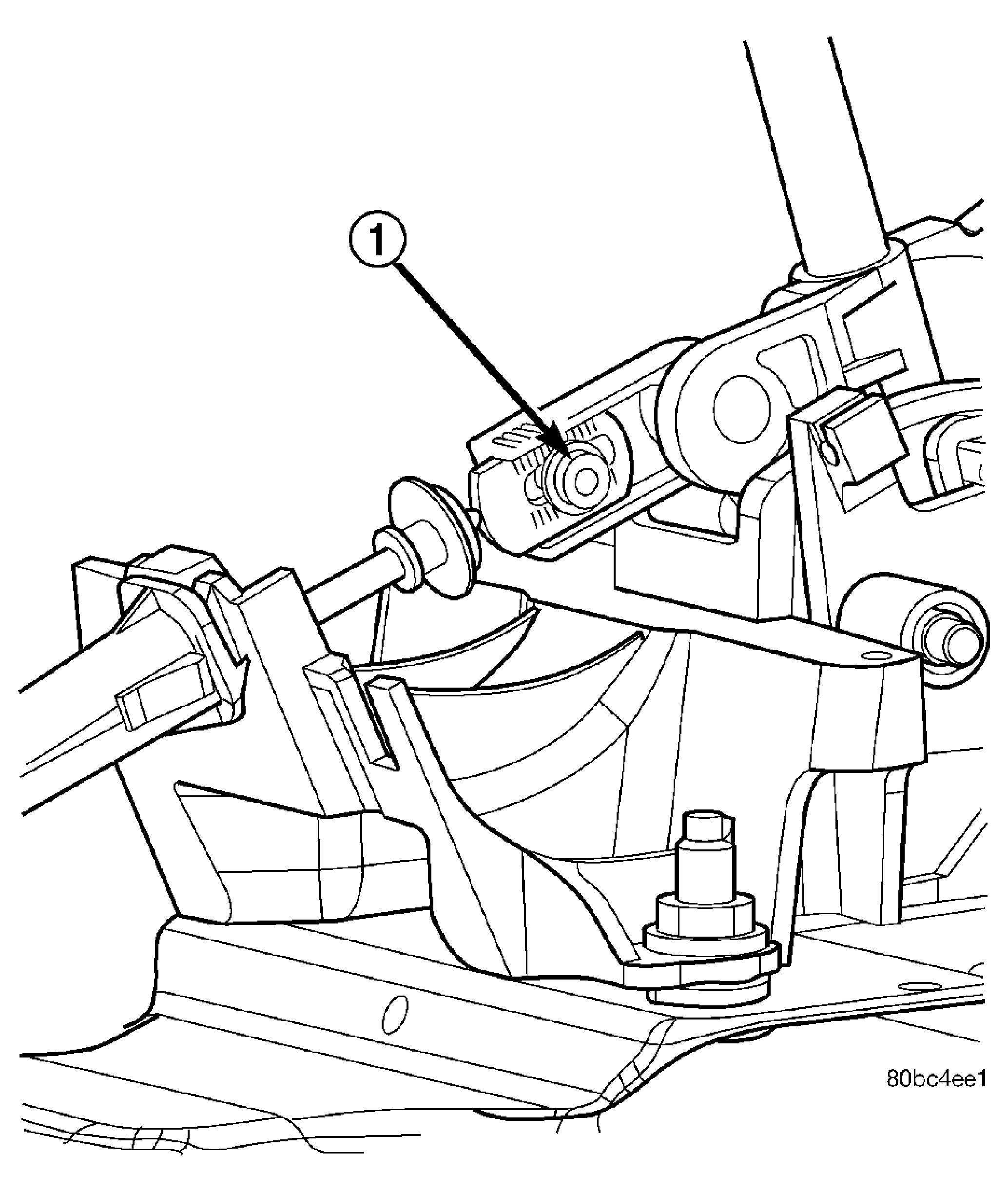

    Fig 6: Identifying Gearshift Cable Adjustment Screw
    GC0020605Courtesy of CHRYSLER LLC
    1 - GEARSHIFT CABLE ADJUSTMENT SCREW
  9. Adjust gearshift cable as follows:
    • Place gearshift lever in the PARK (P) position.
    • Loosen shift cable adjustment screw (1). See Fig 6.
    • Verify transaxle is in the PARK (P) position and the shifter lever is in gated PARK.
    • Tighten shift cable adjustment screw to 8 N.m (70 in. lbs.) torque.
    Fig 7: Removing/Installing Battery Tray
    GC0021163Courtesy of CHRYSLER LLC
  10. Install battery tray (1). See Fig 7.
    Fig 8: Removing/Installing Battery
    GC0021162Courtesy of CHRYSLER LLC
    1 - BATTERY
  11. Install battery (1) and hold down clamp. See Fig 8.
    Fig 9: Removing/Installing Air Cleaner Assembly
    GC0022226Courtesy of CHRYSLER LLC
    1 - AIR CLEANER ASSEMBLY
  12. Install the air cleaner assembly (1). See Fig 9.
    Fig 10: Removing/Installing Center Console - Typical
    GC0022151Courtesy of CHRYSLER LLC
    1 - CENTER CONSOLE
  13. Install center console assembly (1). See Fig 10.
    Fig 11: Removing/Installing Gearshift Knob
    GC0020600Courtesy of CHRYSLER LLC
    1 - SHIFTER KNOB
    2 - SET SCREW
  14. Install gearshift knob and tighten set screw to 2 N.m (17 in. lbs.) torque. See Fig 11.
  15. Connect battery cables.
  16. Verify that engine starter operates in both PARK (P) and NEUTRAL (N). Starter should not operate in any other gear position.
