Input Clutch Assembly

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

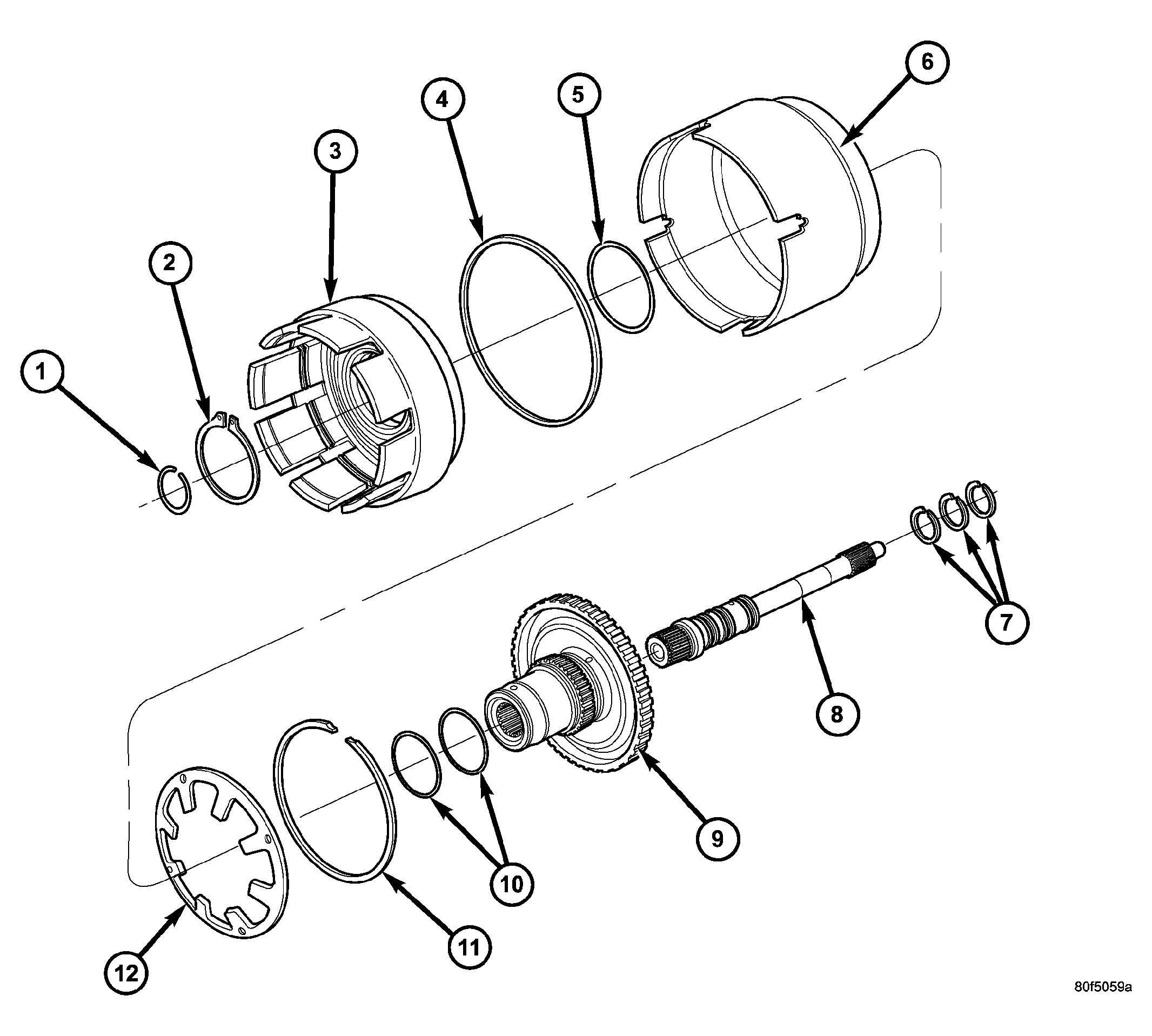

Fig 1: View Of Input Clutch Hub, Retainer & OD/Reverse Piston
GC0020641Courtesy of CHRYSLER LLC
1 - SNAP RING (INPUT SHAFT)
2 - SNAP RING
3 - CLUTCH RETAINER
4 - SEAL, OUTER
5 - SEAL, INNER
6 - OD/REVERSE PISTON
7 - SEAL, INPUT SHAFT
8 - SHAFT, INPUT
9 - HUB
10 - SEAL
11 - SNAP RING
12 - BELLEVILLE SPRING

Refer to the exploded view as necessary when performing the following steps. See Fig 1.

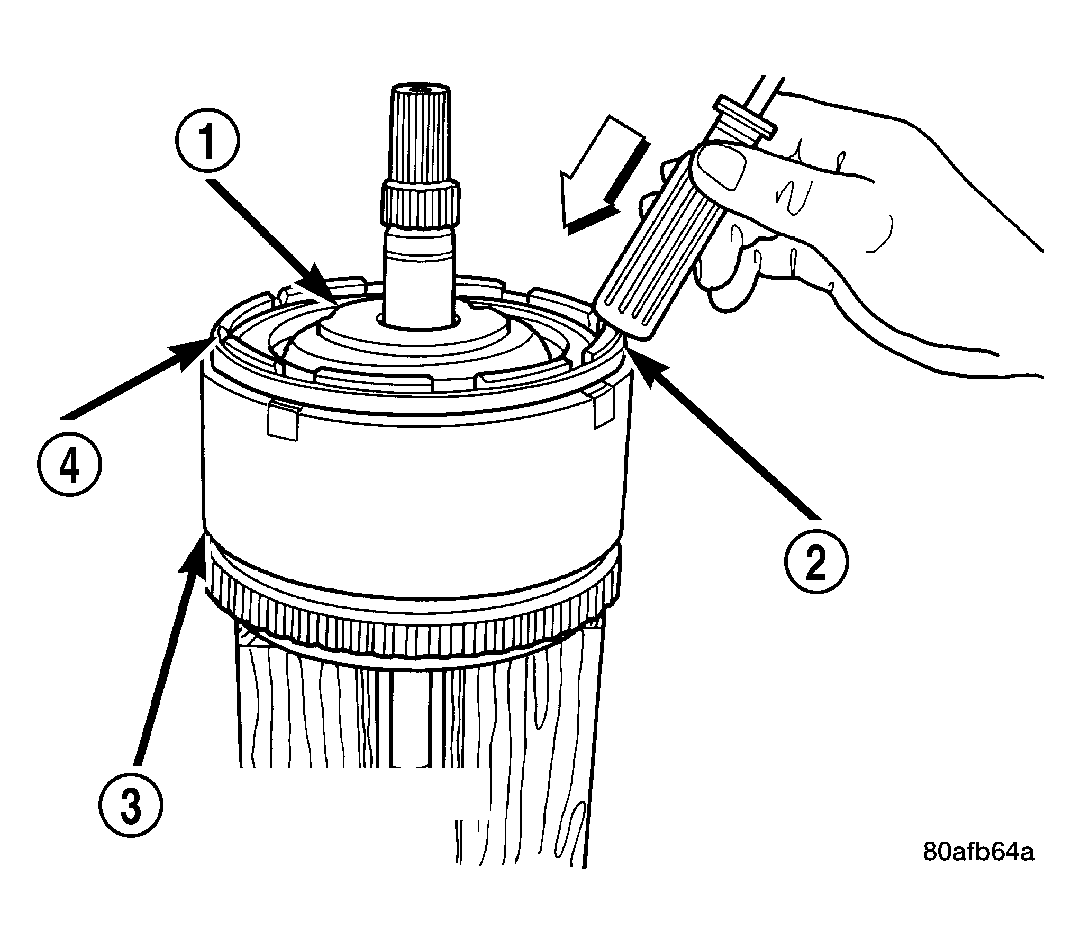

Fig 2: Tapping Reaction Plate
GC0020607Courtesy of CHRYSLER LLC
1 - #4 THRUST PLATE (SELECT)
2 - TAP DOWN REVERSE CLUTCH REACTION PLATE TO REMOVE OR INSTALL SNAP RING
3 - INPUT SHAFT CLUTCHES RETAINER ASSEMBLY
4 - REVERSE CLUTCH REACTION PLATE
  1. Mount input clutch assembly to Input Clutch Pressure Fixture 8391.
  2. Tap down reverse clutch reaction plate to release pressure from snap ring (2). See Fig 2.

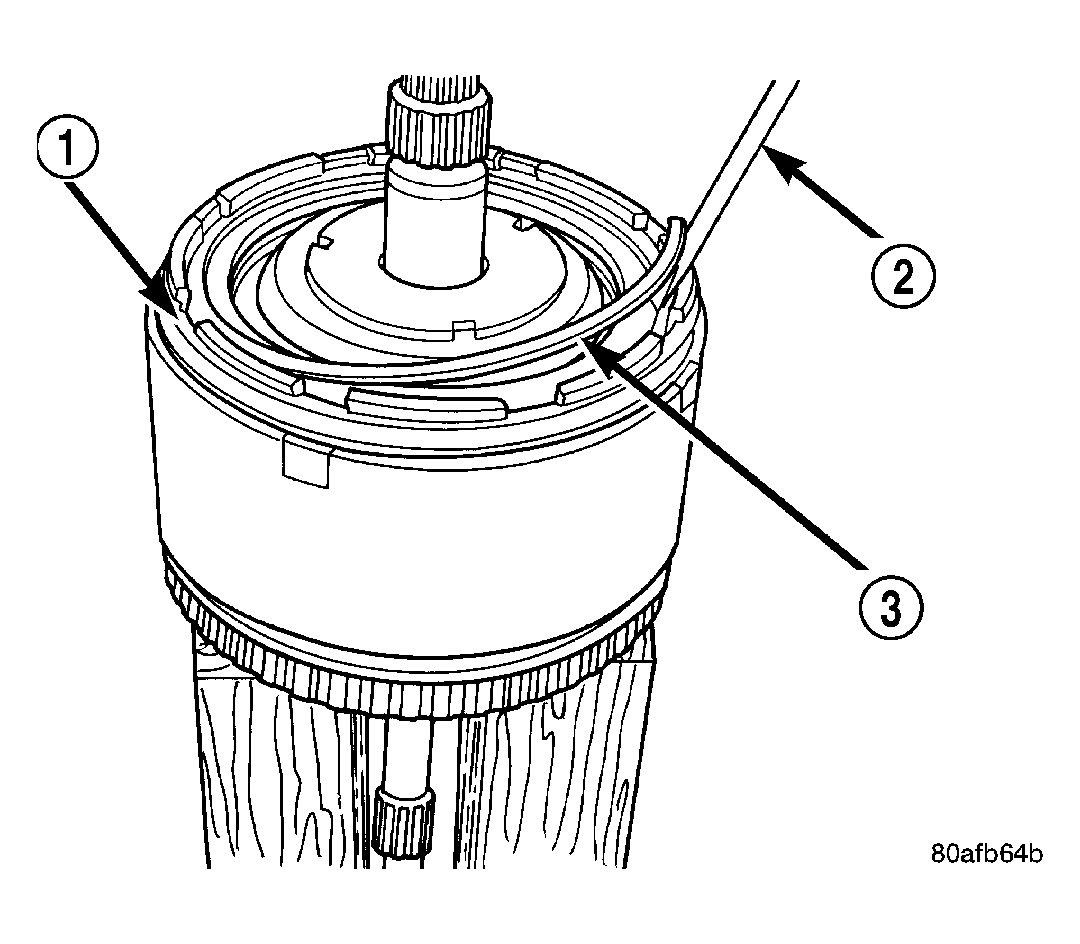

    Fig 3: Identifying Reverse Clutch Snap Ring
    GC0020608Courtesy of CHRYSLER LLC
    1 - REACTION PLATE
    2 - SCREWDRIVER
    3 - REVERSE CLUTCH SNAP RING (SELECT)
  3. Remove reverse clutch snap ring (3). See Fig 3.

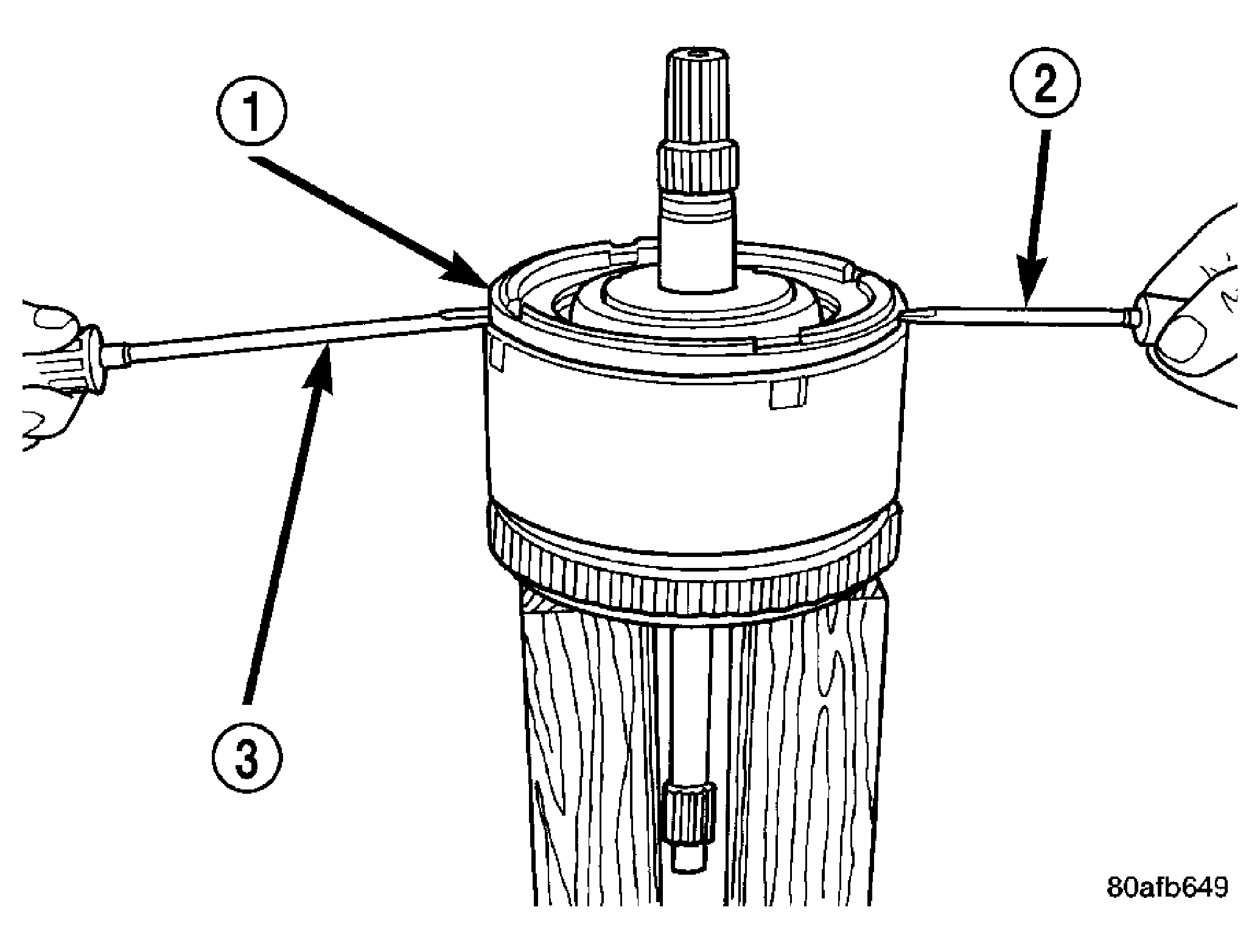

    Fig 4: Prying Reverse Clutch Reaction Plate
    GC0020609Courtesy of CHRYSLER LLC
    1 - REVERSE CLUTCH REACTION PLATE
    2 - SCREWDRIVER
    3 - SCREWDRIVER
  4. Pry up (2,3) and remove reverse clutch reaction plate (1). See Fig 4.

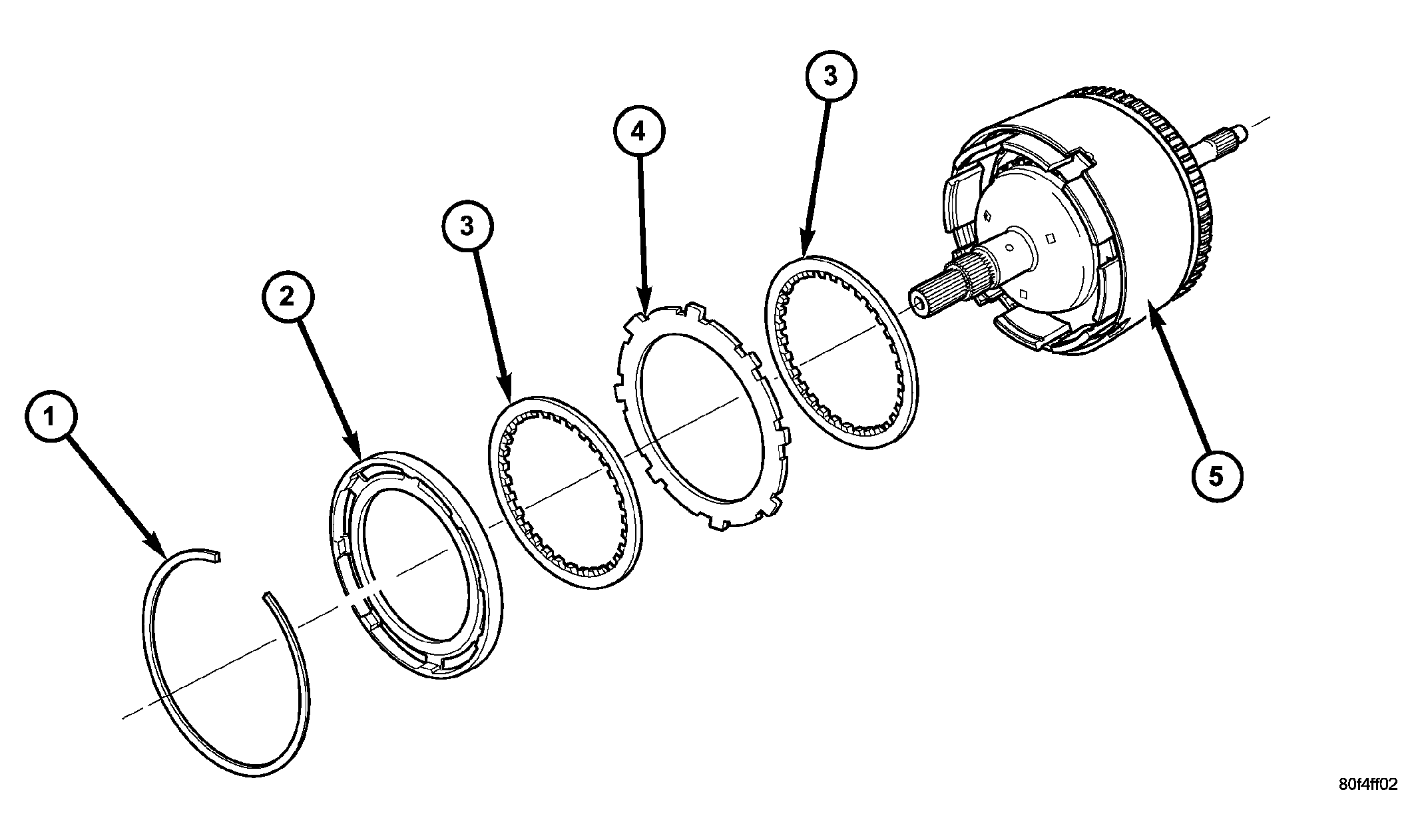

    Fig 5: Identifying Reverse Clutch Assembly
    GC0020636Courtesy of CHRYSLER LLC
    1 - SNAP RING
    2 - REACTION PLATE
    3 - CLUTCH DISC (2)
    4 - CLUTCH PLATE (1)
    5 - INPUT CLUTCH ASSEMBLY
  5. Remove reverse clutch pack (1,2,3 and 4). See Fig 5. Tag components for assembly identification.

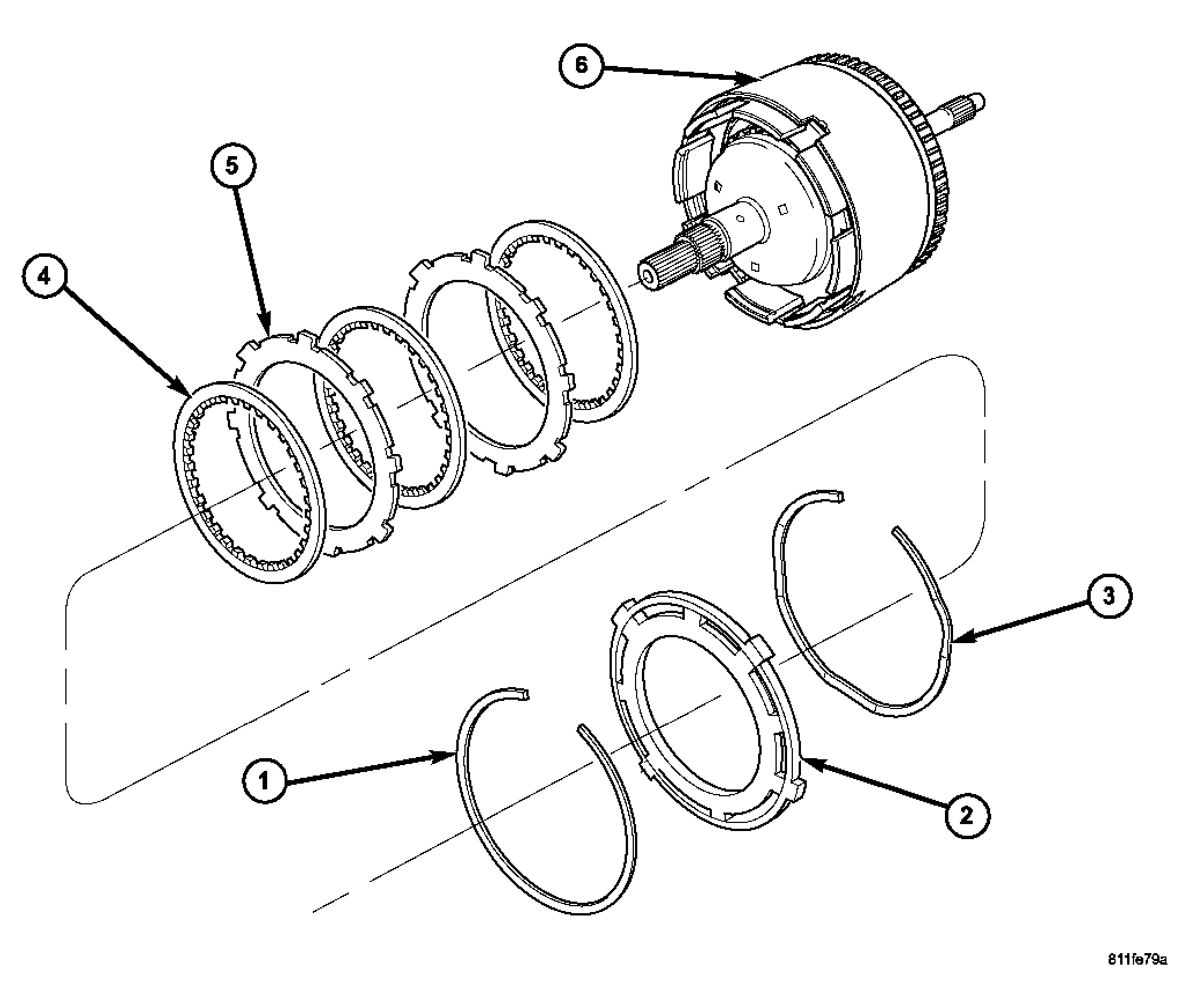

    Fig 6: Identifying Overdrive Clutch Assembly
    GC0020637Courtesy of CHRYSLER LLC
    1 - SNAP RING
    2 - OD/REVERSE PRESSURE PLATE
    3 - SNAP RING (WAVE)
    4 - CLUTCH DISC (3)
    5 - CLUTCH STEEL (2)
    6 - INPUT CLUTCH ASSEMBLY
  6. Remove the OD/Reverse pressure plate snap ring (1). See Fig 6.
  7. Remove OD/Reverse pressure plate (2).
  8. Remove OD/Reverse pressure plate wave snap ring (3).
  9. Remove OD clutch pack (4,5). Tag components for assembly identification.

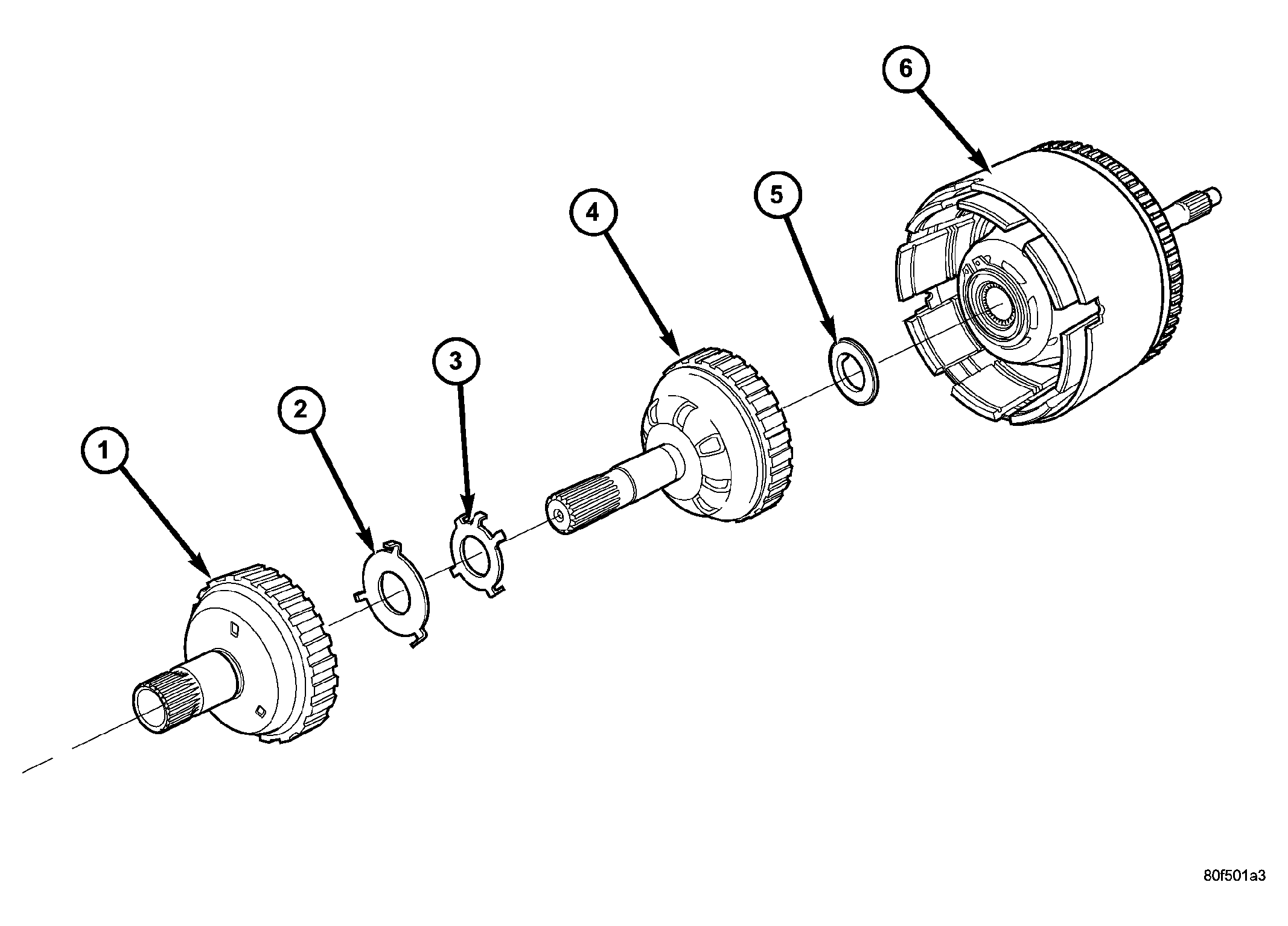

    Fig 7: Identifying Overdrive/Underdrive Shafts
    GC0020639Courtesy of CHRYSLER LLC
    1 - OVERDRIVE SHAFT
    2 - #3 THRUST PLATE (3 TABS)
    3 - #3 THRUST WASHER (5 TABS)
    4 - UNDERDRIVE SHAFT
    5 - #2 NEEDLE BEARING (3 TABS)
    6 - INPUT CLUTCH ASSEMBLY
  10. Remove and inspect OD (1) and UD (4) Shafts, as well as #3 thrust washer (3) and plate (2), and #2 needle bearing (5). See Fig 7.

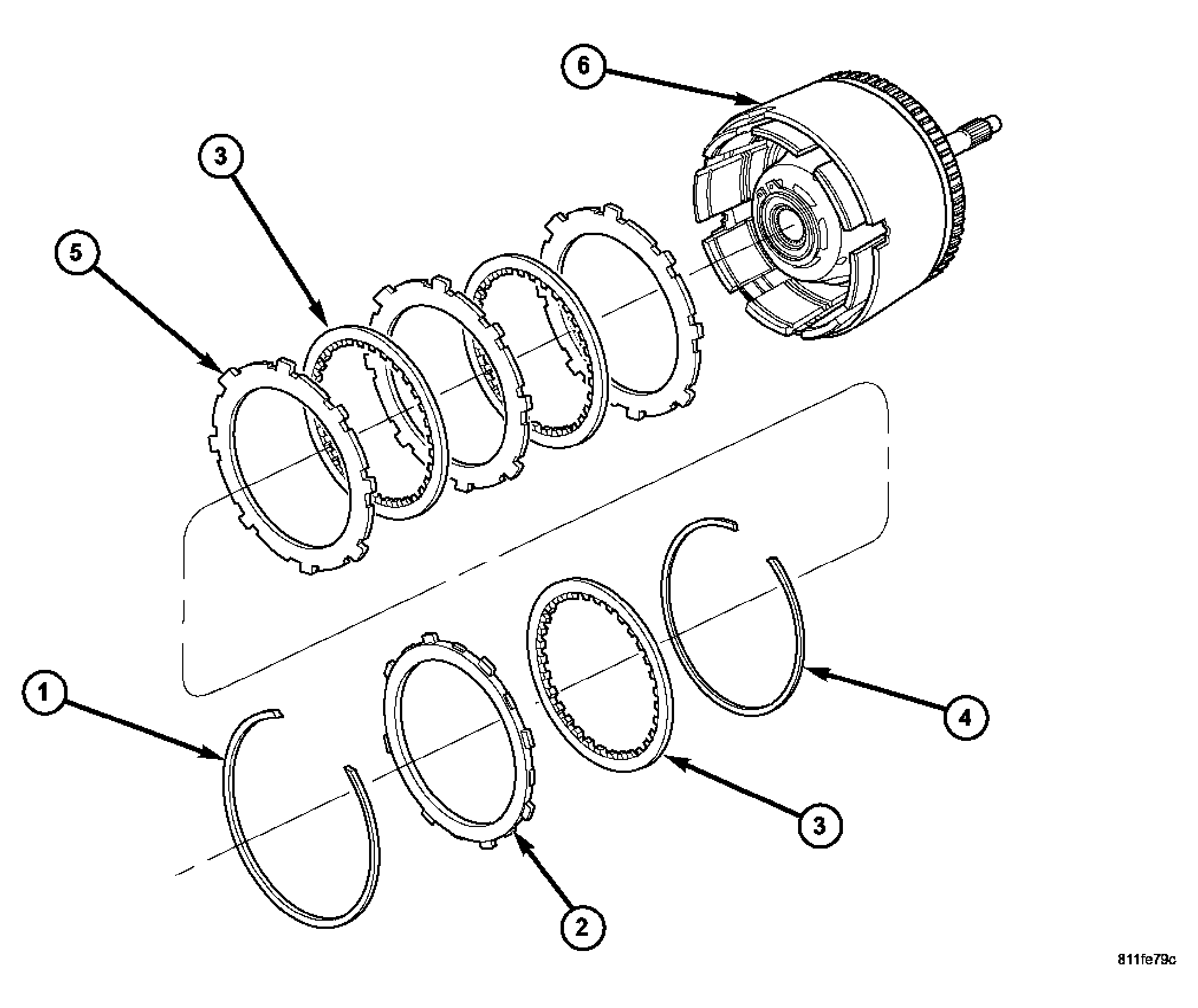

    Fig 8: Identifying Underdrive Clutch Assembly
    GC0020638Courtesy of CHRYSLER LLC
    1 - SNAP RING (TAPERED)
    2 - OD/UD REACTION PLATE
    3 - CLUTCH DISC (3)
    4 - SNAP RING (FLAT)
    5 - CLUTCH PLATE (3)
    6 - INPUT CLUTCH ASSEMBLY
  11. Remove the OD/UD reaction plate (2) tapered snap ring (1), reaction plate, and first friction disc (3). See Fig 8.

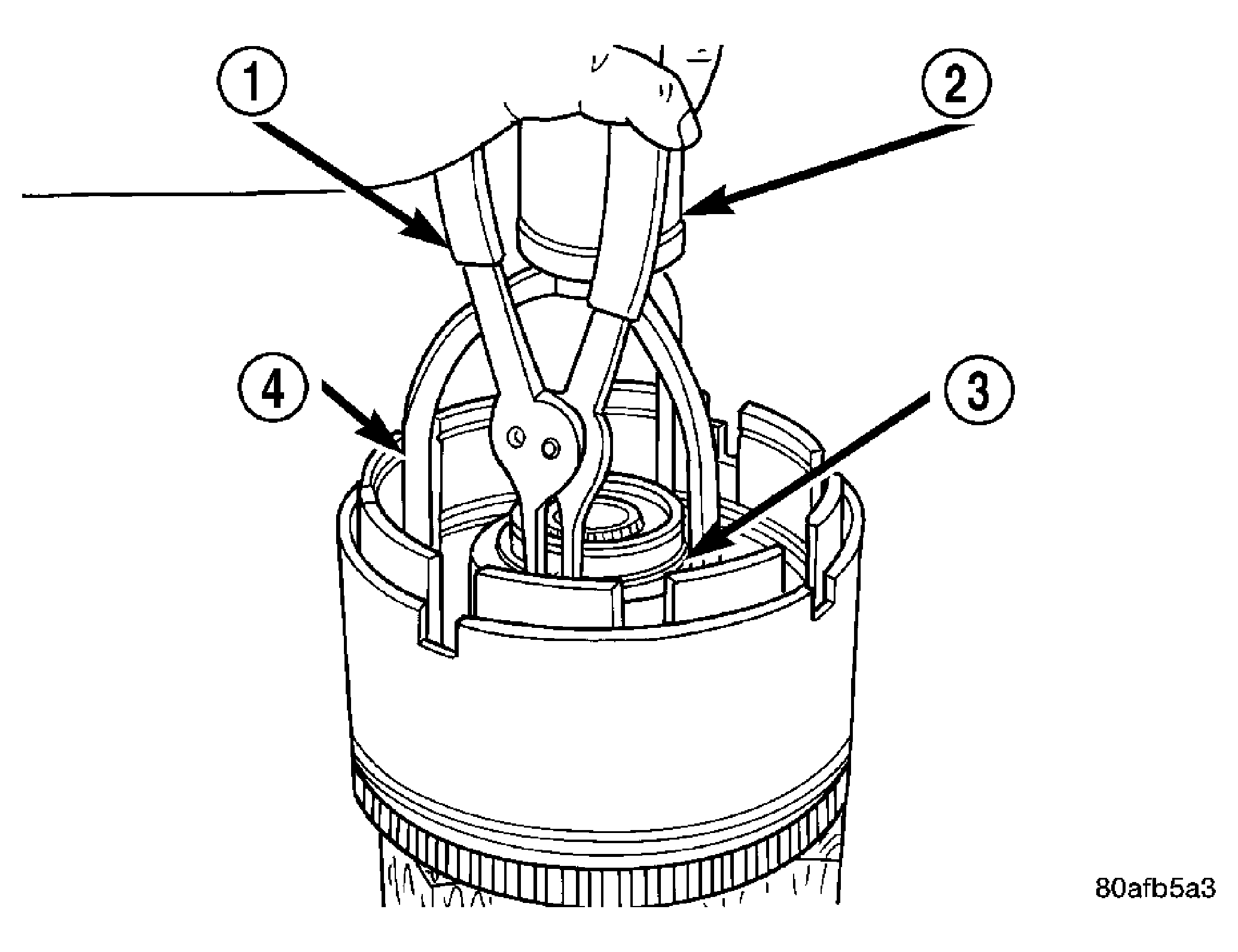

    Fig 9: Removing UD Spring Retainer Snap Ring
    GC0020625Courtesy of CHRYSLER LLC
    1 - SNAP RING PLIERS
    2 - ARBOR PRESS RAM
    3 - SNAP RING
    4 - COMPRESSOR 5059A
  12. Remove the UD clutch flat snap ring (3) and rest of UD clutch pack. Tag clutch pack for assembly identification.  See Fig 9.
    CAUTION: Compress return spring just enough to remove or install snap ring.
  13. Using Compressor 5059A (4) and an Arbor Press (2), compress UD clutch piston/spring enough to remove snap ring (3).

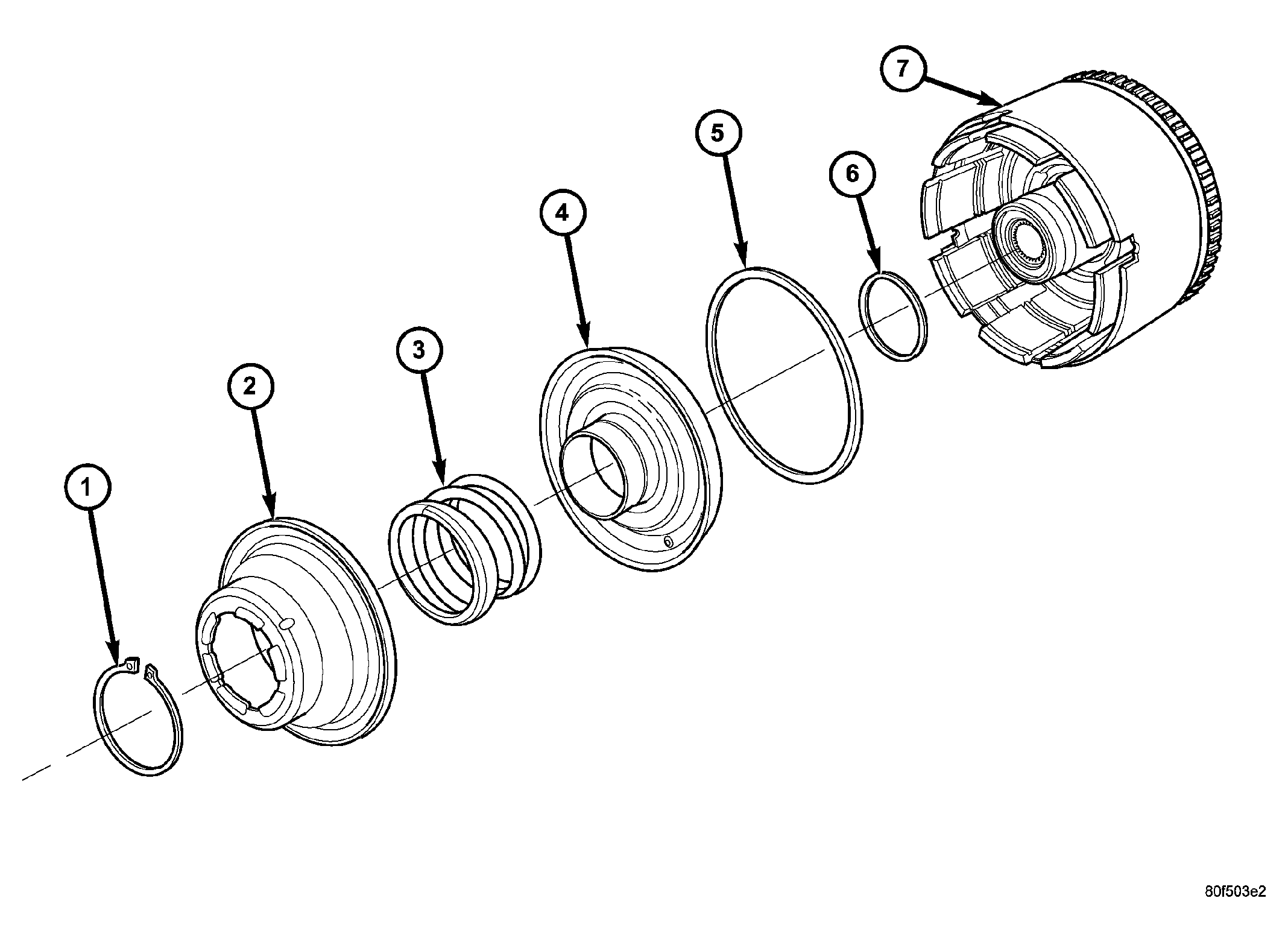

    Fig 10: View Of Underdrive Clutch Piston, Spring & Retainer
    GC0020640Courtesy of CHRYSLER LLC
    1 - SNAP RING
    2 - SPRING RETAINER
    3 - SPRING
    4 - UD CLUTCH PISTON
    5 - SEAL, OUTER
    6 - SEAL, INNER
    7 - INPUT CLUTCH ASSEMBLY
  14. Remove spring retainer (2), spring (3), and piston (4). See Fig 10.

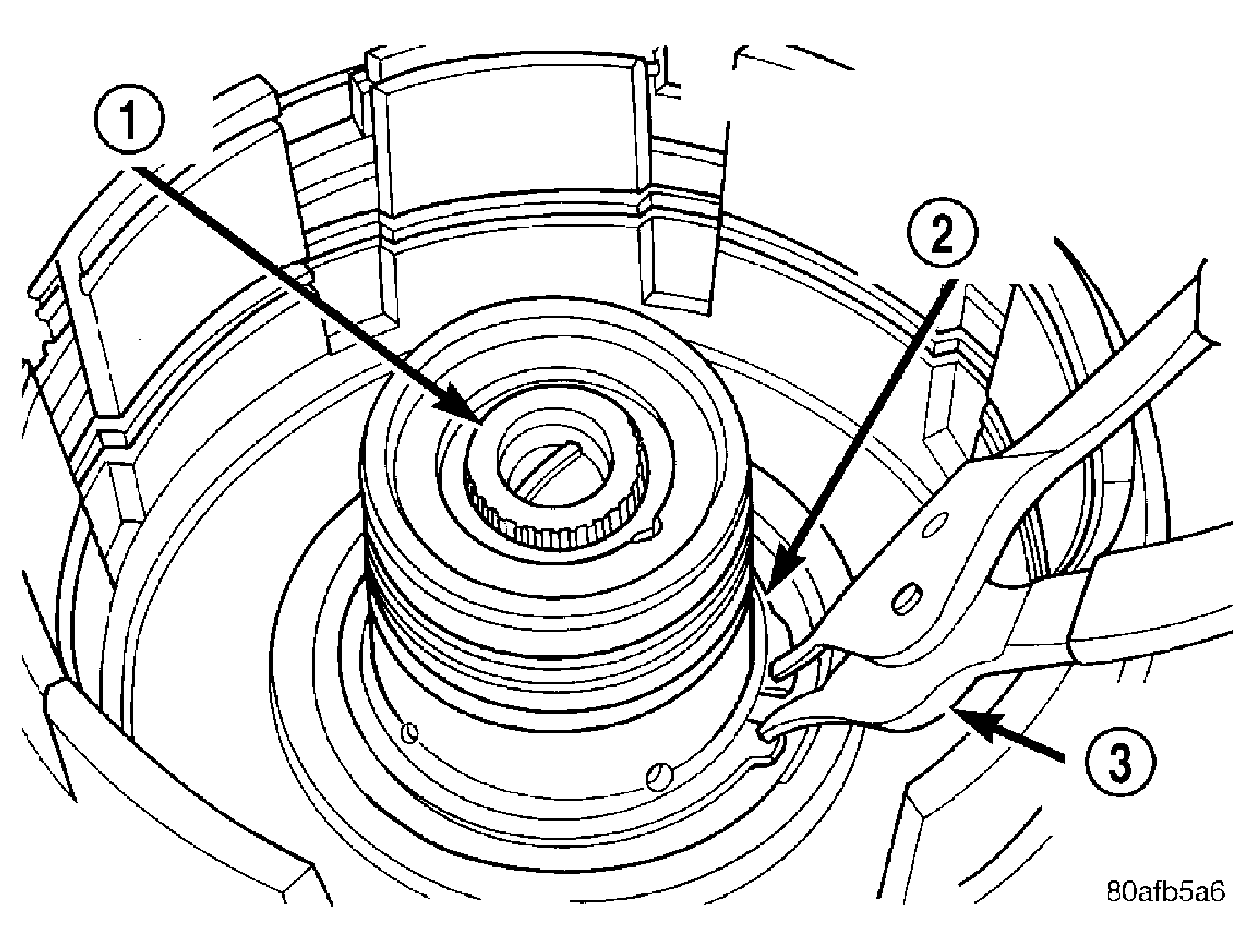

    Fig 11: Identifying Input Hub Tapered Snap Ring
    GC0020628Courtesy of CHRYSLER LLC
    1 - INPUT SHAFT
    2 - INPUT HUB SNAP RING (TAPERED SIDE UP WITH TABS IN CAVITY)
    3 - SNAP RING PLIERS
  15. Remove input hub tapered snap ring (2). See Fig 11.

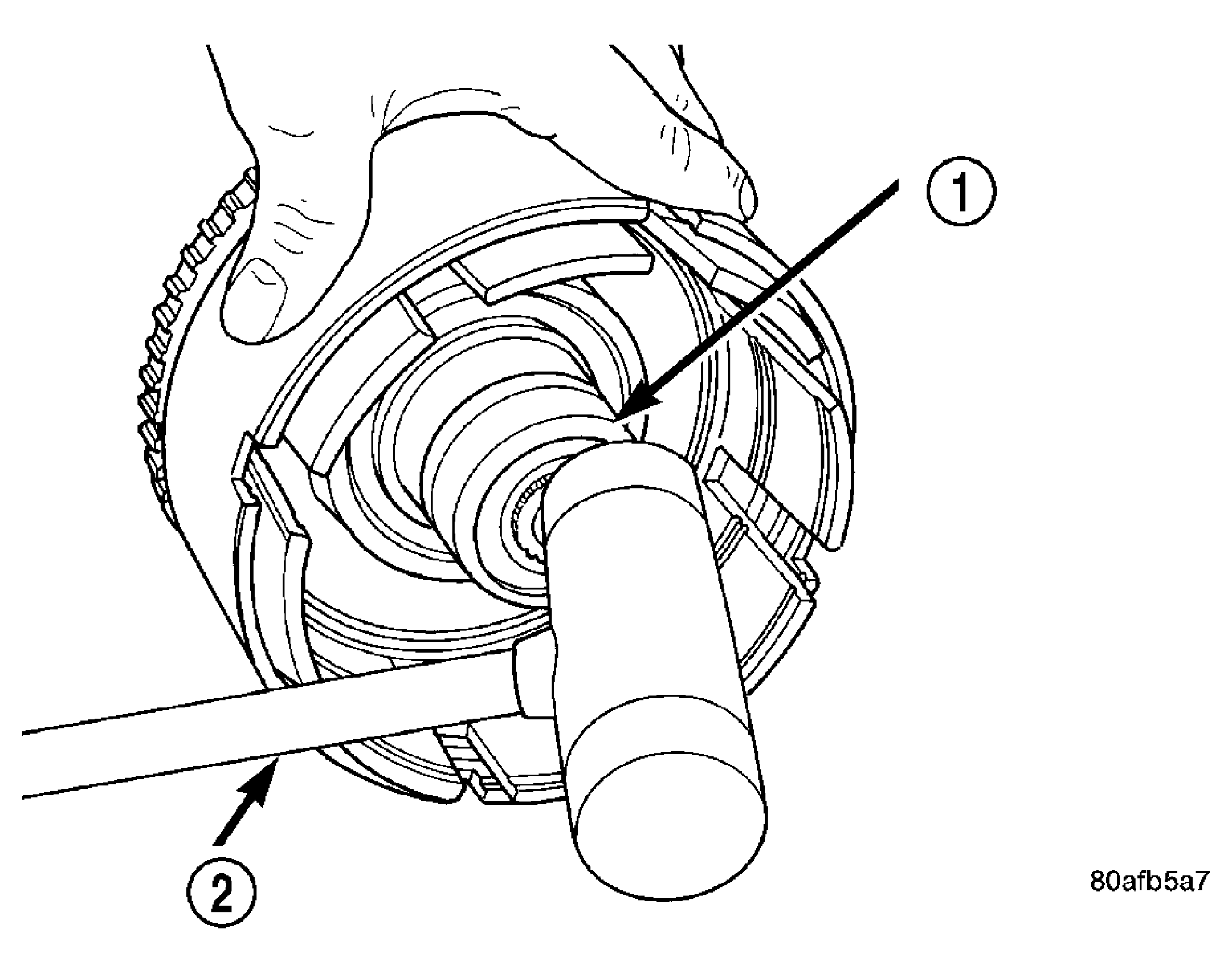

    Fig 12: Tapping On Input Hub
    GC0020629Courtesy of CHRYSLER LLC
    1 - INPUT SHAFT AND HUB ASSEMBLY
    2 - PLASTIC HAMMER
  16. Tap on input hub (1) with soft faced hammer (2) and separate input hub from OD/Reverse piston and clutch retainer. See Fig 12.

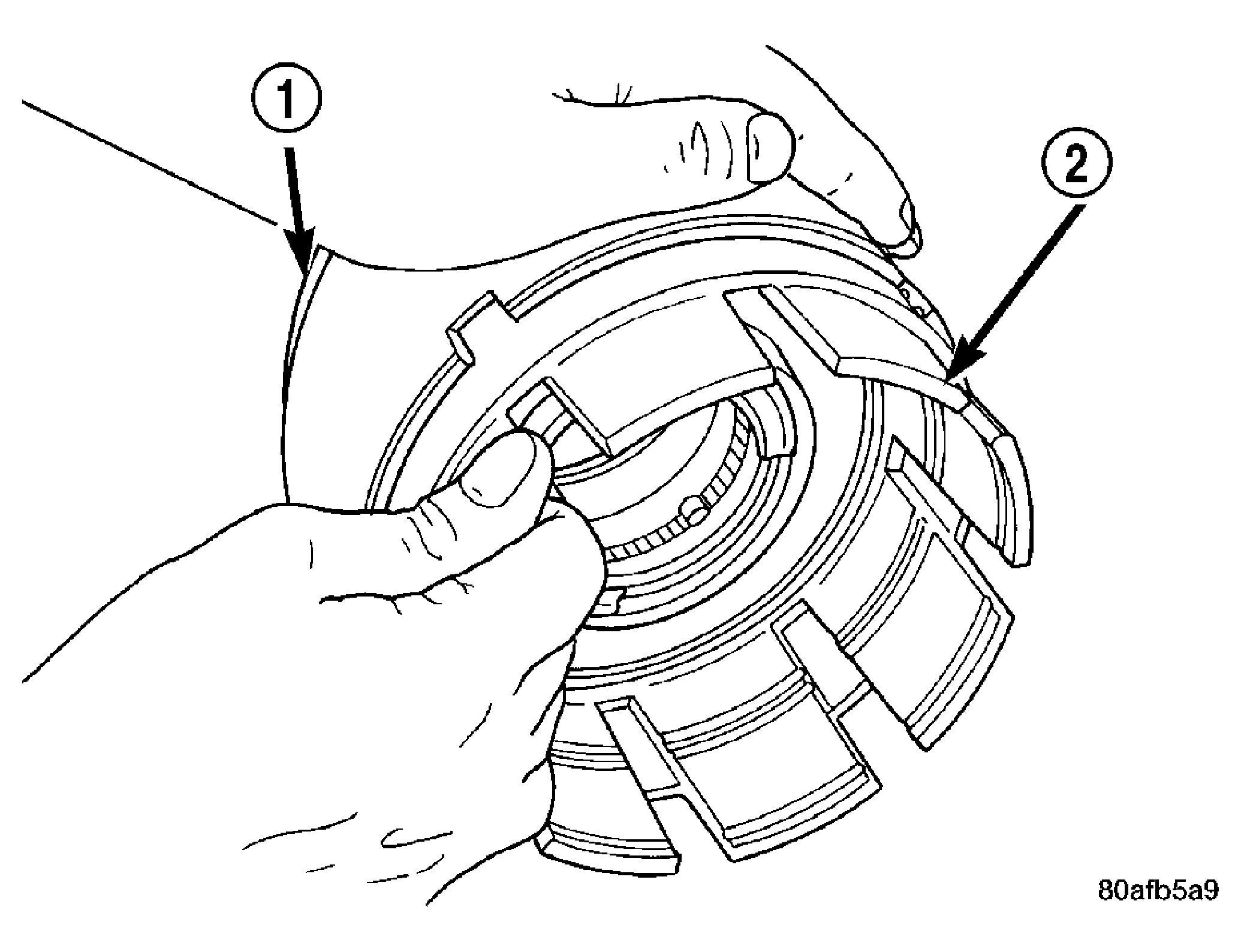

    Fig 13: Pulling Retainer From Piston
    GC0020631Courtesy of CHRYSLER LLC
    1 - OVERDRIVE/REVERSE PISTON
    2 - INPUT CLUTCHES RETAINER
  17. Separate clutch retainer (2) from OD/Reverse piston (1). See Fig 13.

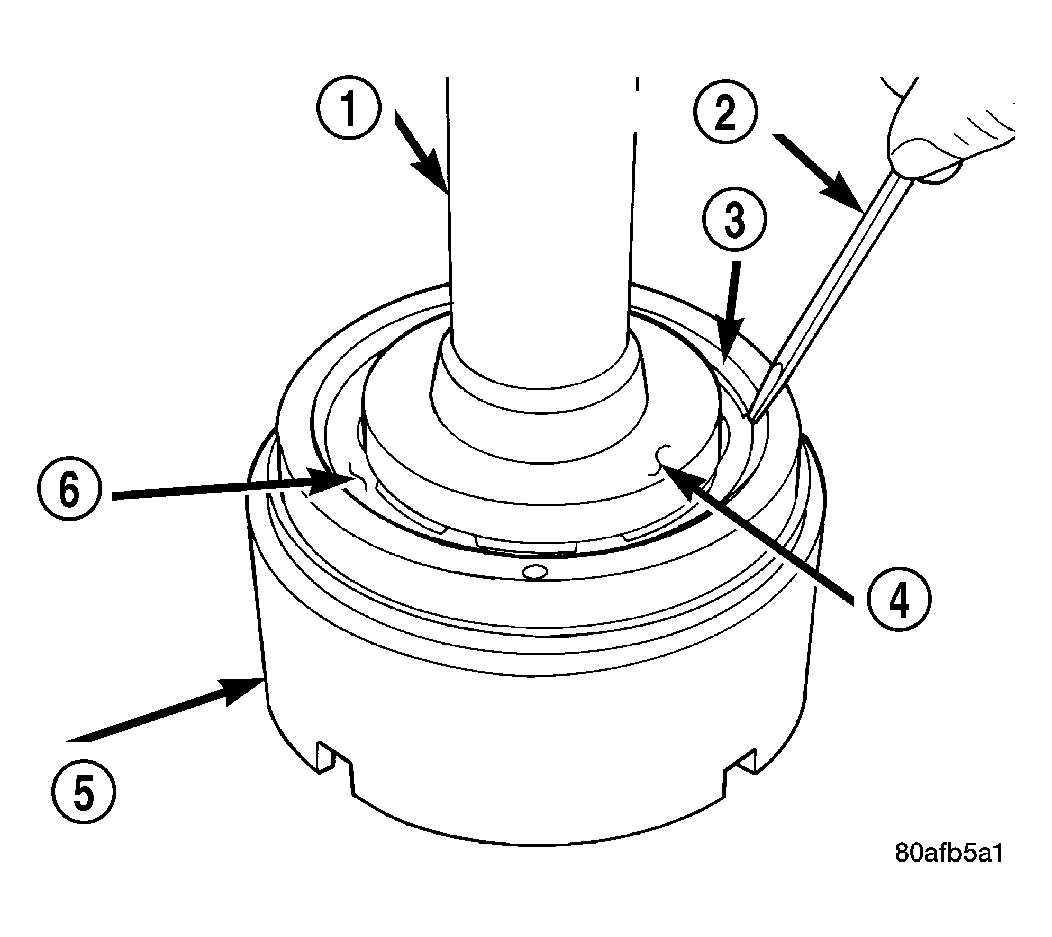

    Fig 14: Installing Snap Ring
    GC0020632Courtesy of CHRYSLER LLC
    1 - ARBOR PRESS RAM (COMPRESS RETURN SPRING JUST ENOUGH TO REMOVE OR INSTALL SNAP RING)
    2 - SCREWDRIVER
    3 - SNAP RING
    4 - DISC 6057
    5 - OD/REVERSE PISTON
    6 - RETURN SPRING
  18. Using Disc 6057 (4) and an Arbor Press, compress return OD/Reverse piston return spring just enough to remove snap ring (3). See Fig 14.

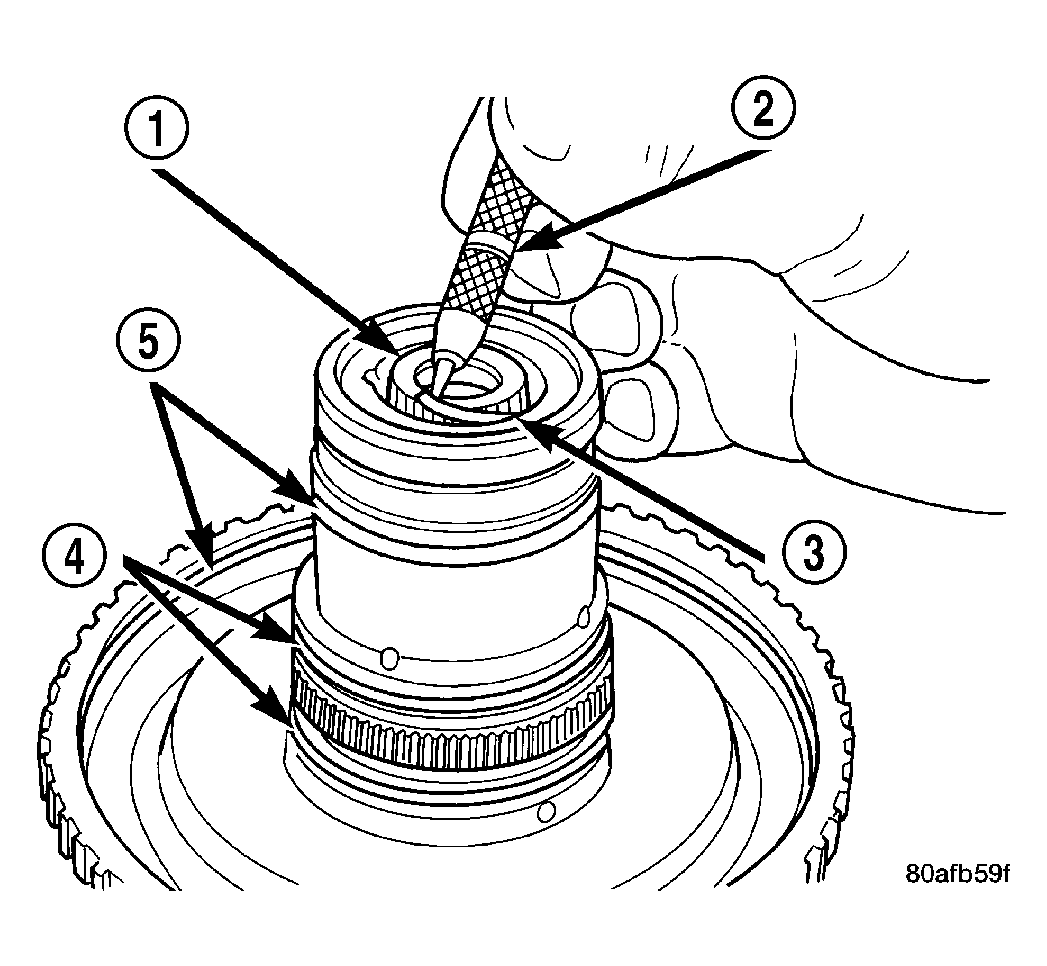

    Fig 15: Removing Input Shaft Snap Ring
    GC0020634Courtesy of CHRYSLER LLC
    1 - INPUT SHAFT
    2 - SHARP-POINTED TOOL
    3 - SNAP RING
    4 - O-RINGS
    5 - SEALS
  19. Remove input shaft to input clutch hub snap ring (3). See Fig 15.

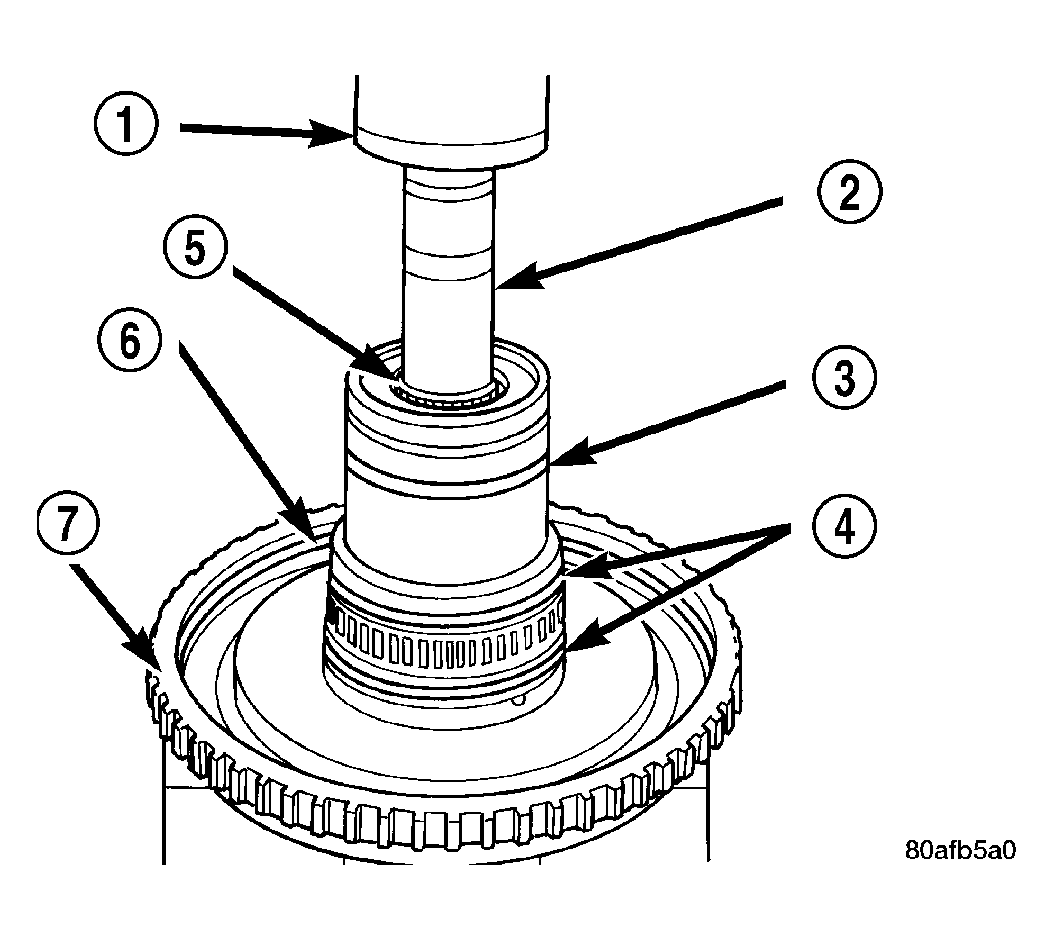

    Fig 16: Removing Input Shaft
    GC0020635Courtesy of CHRYSLER LLC
    1 - ARBOR PRESS RAM
    2 - SOCKET
    3 - SEAL
    4 - O-RINGS
    5 - INPUT SHAFT
    6 - SEAL
    7 - INPUT SHAFT HUB ASSEMBLY
  20. Using a suitably sized socket (2) and an Arbor Press (1), remove input shaft from input shaft hub (7). See Fig 16.
