Piston Ring - Fitting

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

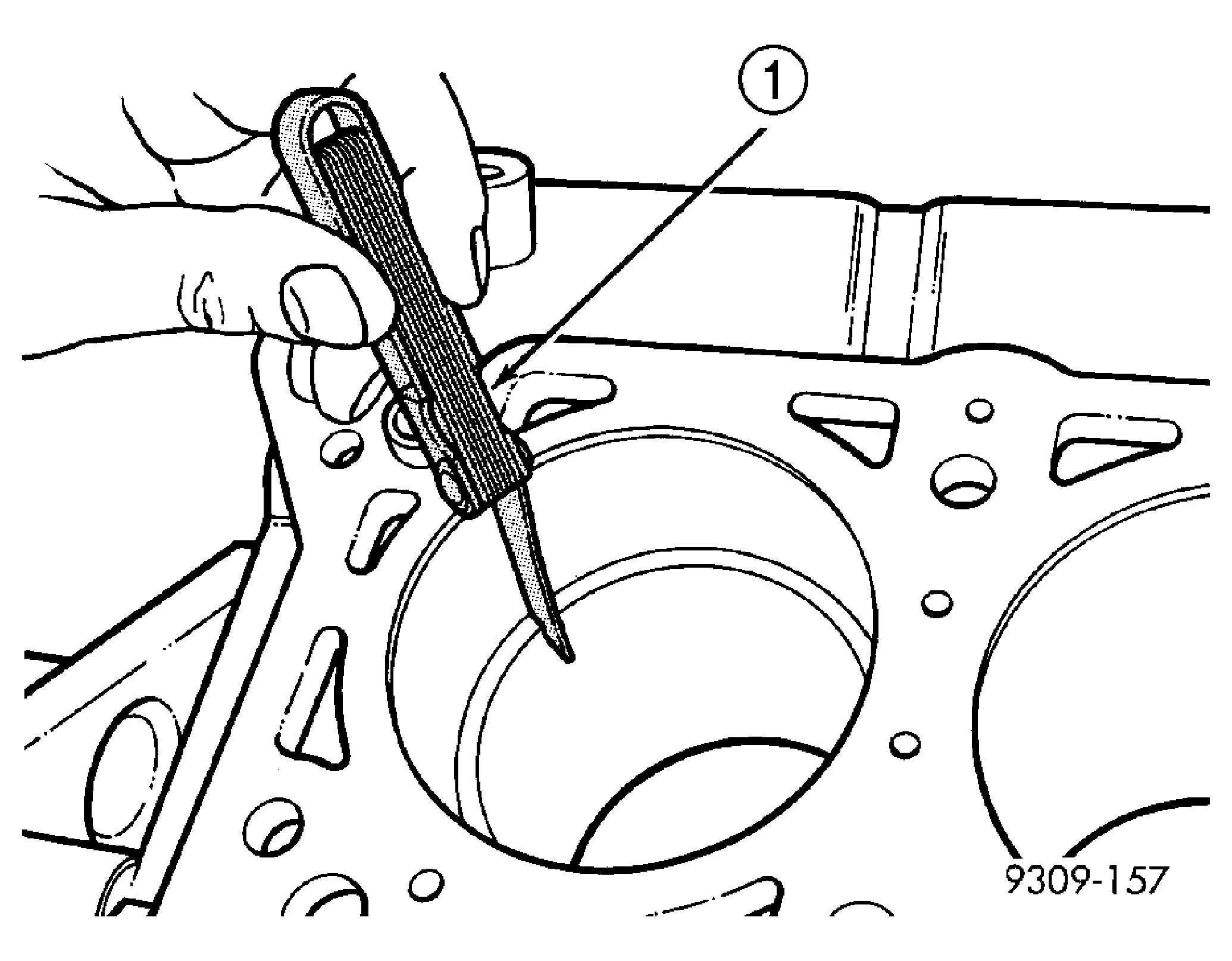

Fig 1: Measuring Piston Ring Gap

Courtesy of CHRYSLER LLC

1 - FEELER GAUGE

Wipe cylinder bore clean. Insert ring and push down with piston to ensure it is square in bore. The ring gap measurement must be made with the ring positioning at least 12 mm (0.50 inch) from bottom of cylinder bore. Check gap with feeler gauge (1). See Fig 1. Refer to SPECIFICATIONS .

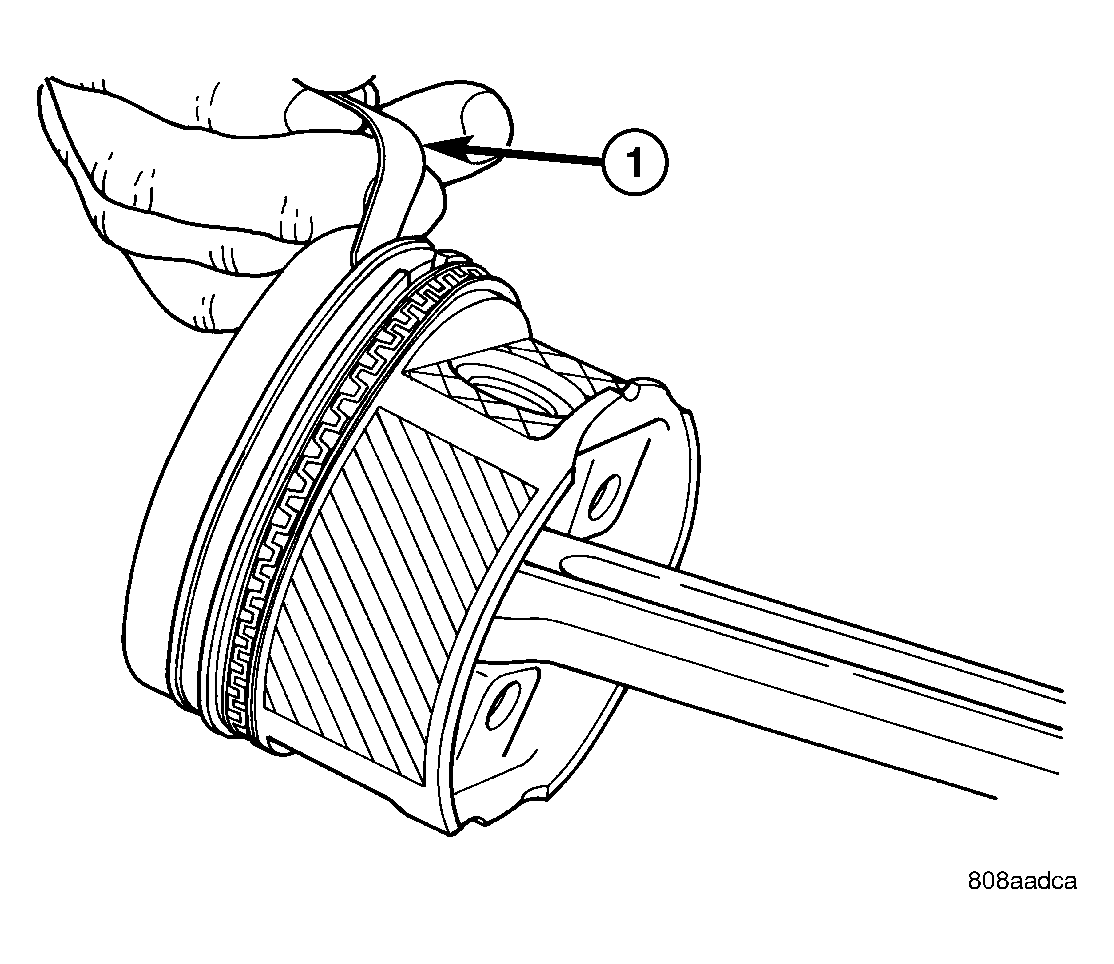

Fig 2: Measuring Piston Ring Side Clearance
Courtesy of CHRYSLER LLC

1 - FEELER GAUGE
Check piston ring to groove side clearance with a feeler gauge (1). See Fig 2. Refer to SPECIFICATIONS .
