Crankshaft Position Sensor - 1.6L
WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER LLC
- Disconnect the negative battery cable
- Raise vehicle and support.

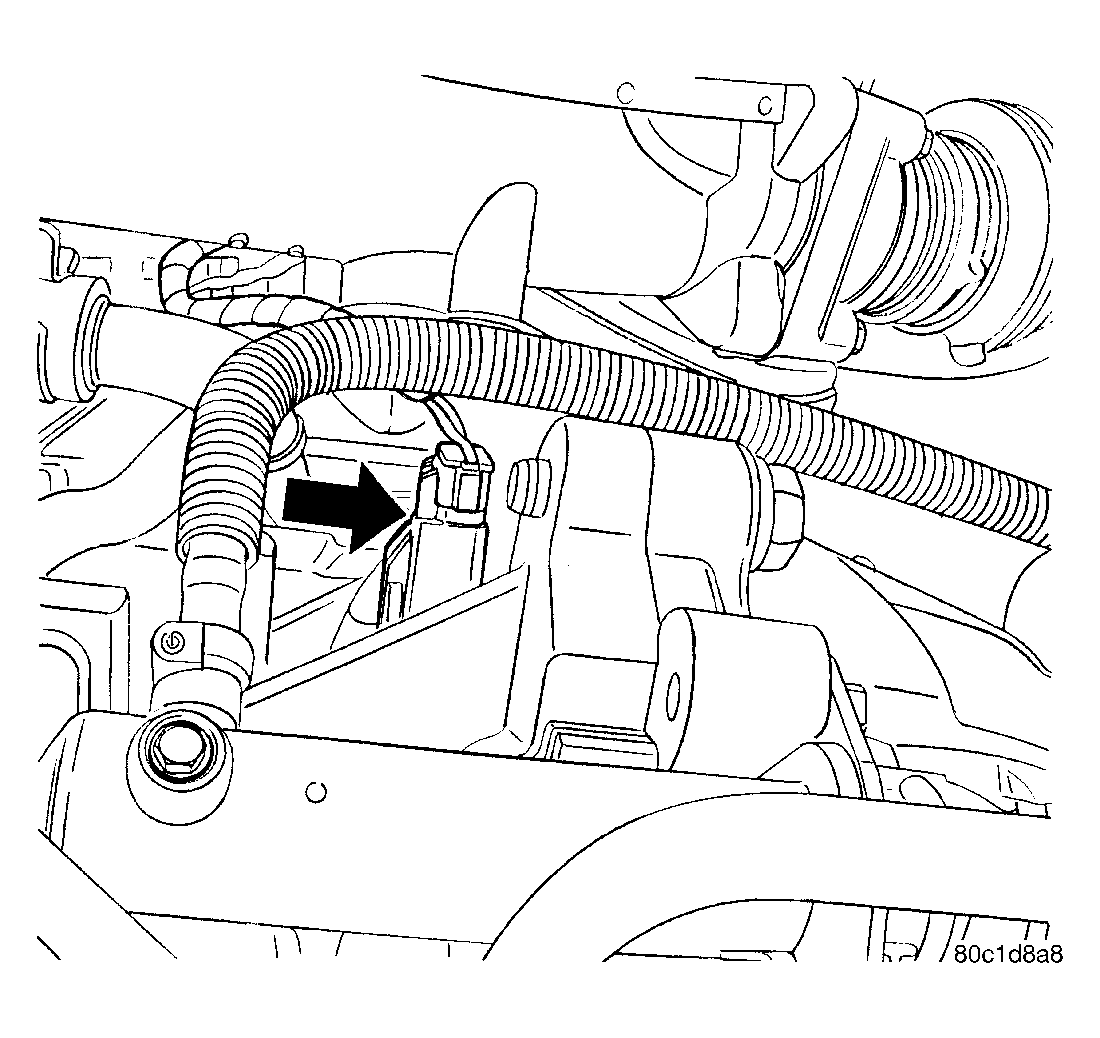

- Disconnect the electrical connector.
Courtesy of CHRYSLER LLC

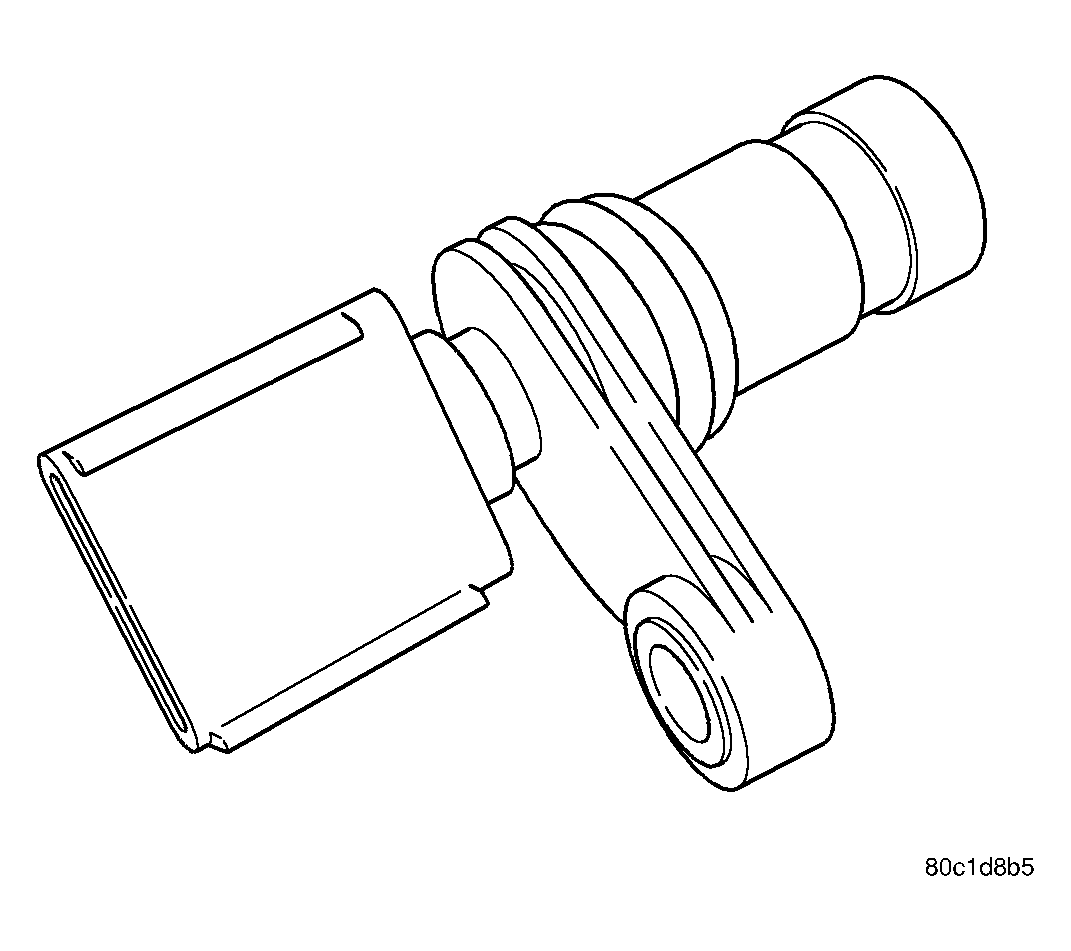

- Remove bolt from crankshaft position sensor.
- Remove sensor.
