Idle Air Control Motor

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

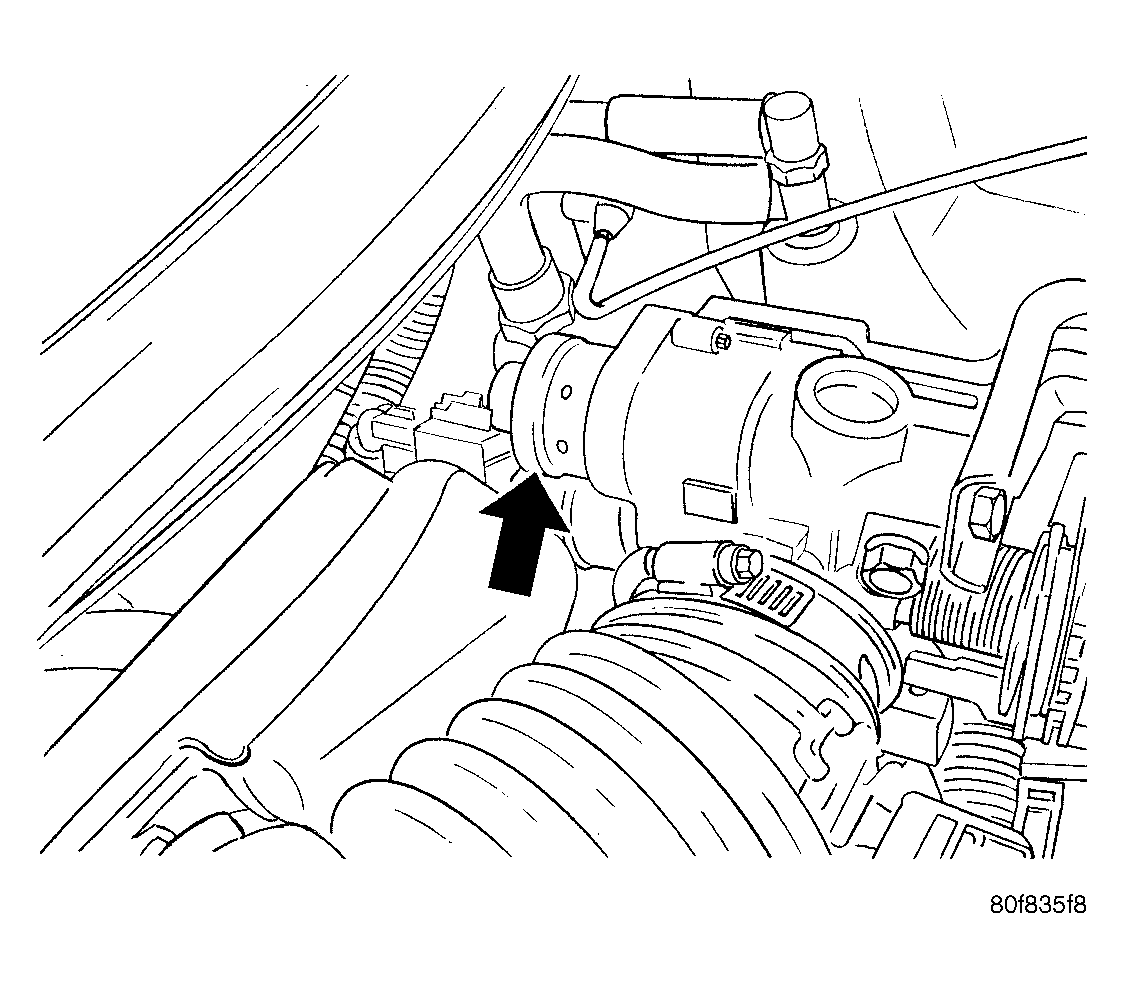

Fig 1: Locating Idle Air Control Valve

Courtesy of CHRYSLER LLC

When servicing throttle body components, always reassemble components with new O-rings and seals where applicable. Never use lubricants on O-rings or seals, damage may result. If assembly of component is difficult, use water to aid assembly.

Disconnect negative cable from battery.
Remove electrical connector from idle air control motor.
Remove idle air control motor mounting screws.

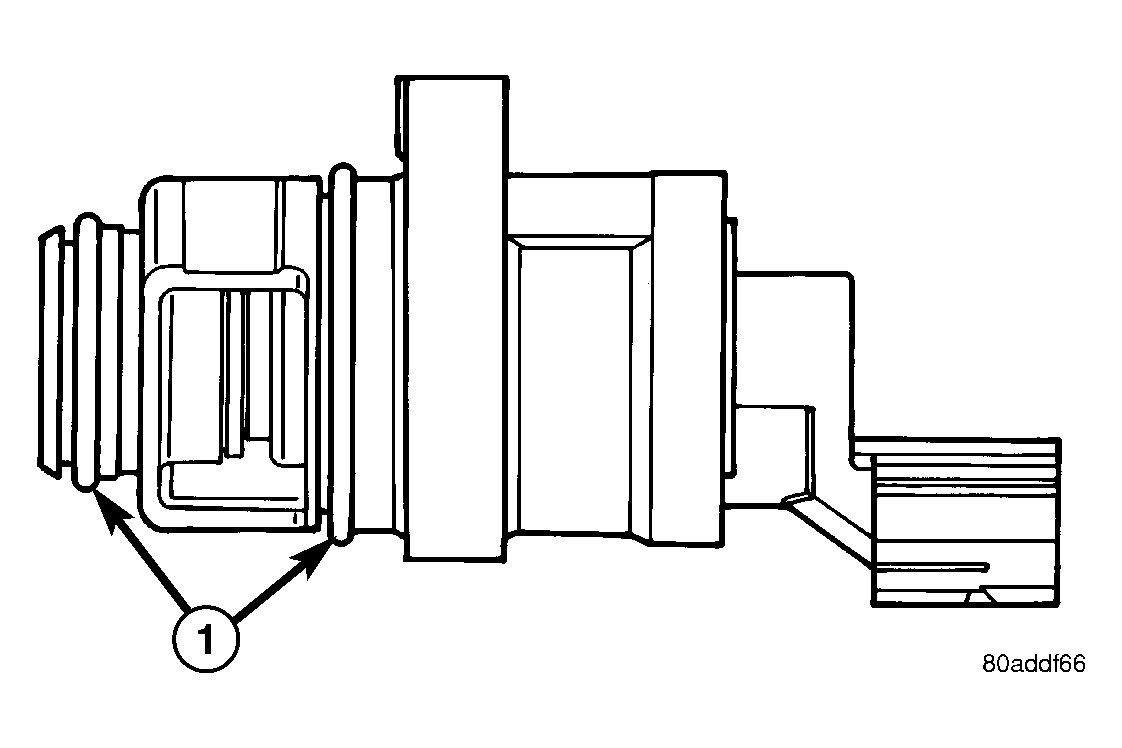

Fig 2: IAC Motor O-Rings
Courtesy of CHRYSLER LLC

1 - O-rings
Remove motor from throttle body. Ensure the O-rings is removed with the motor.
