Fuel Injector - 1.6L

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

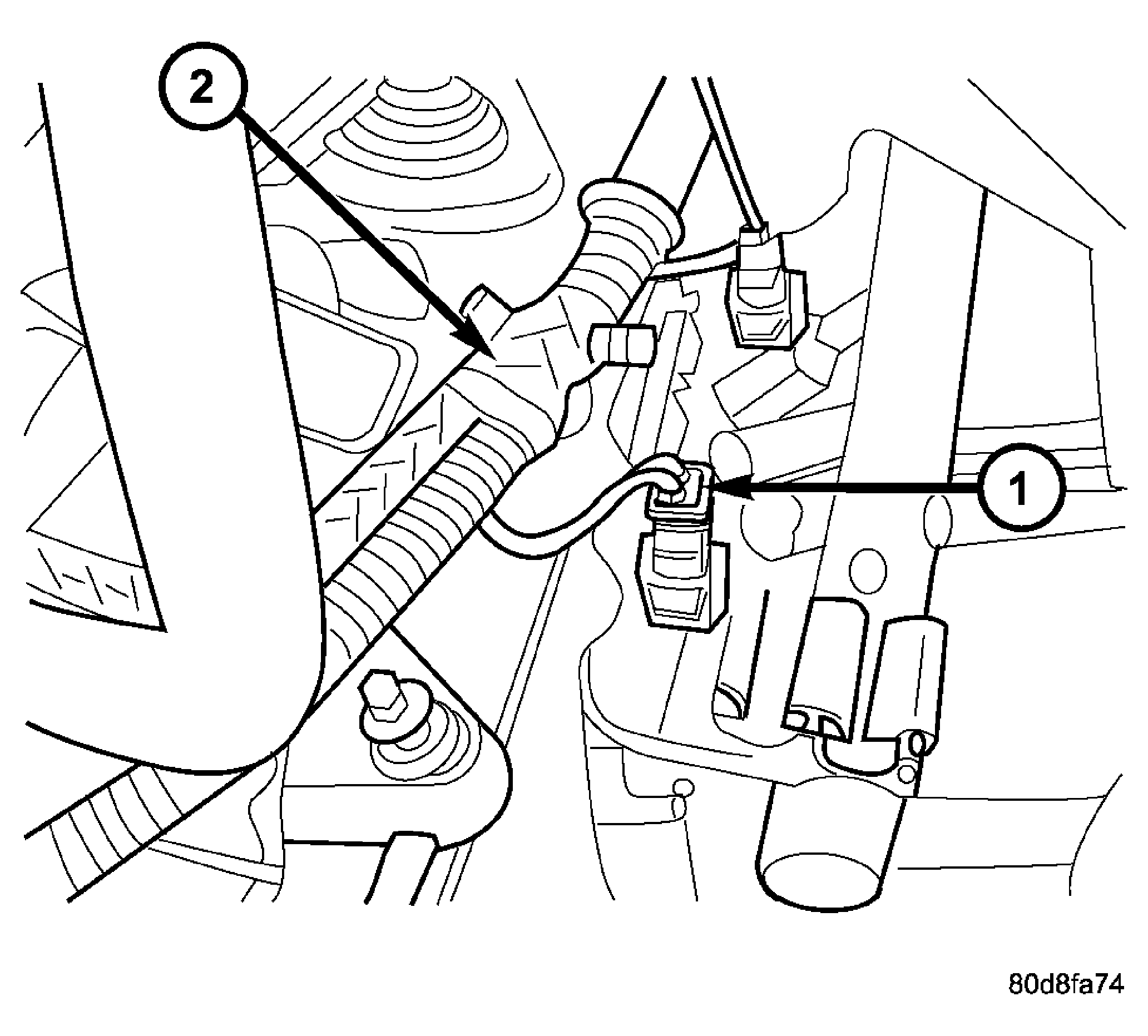

Fig 1: Injector Connector & Wiring Harness
GC0021642Courtesy of CHRYSLER LLC
1 - FUEL INJECTOR ELECTRICAL CONNECTOR
2 - WIRING HARNESS
WARNING: Release fuel system pressure before servicing fuel system components. Service vehicles in well ventilated areas and avoid ignition sources. Never smoke while servicing the vehicle. This may result in personal injury or death.
  1. Release the fuel pressure. Refer to FUEL SYSTEM PRESSURE RELEASE PROCEDURE .
  2. Remove air cleaner assembly cover.
  3. Disconnect the negative battery cable.
  4. Disconnect the electrical connectors (2) from the fuel injectors.

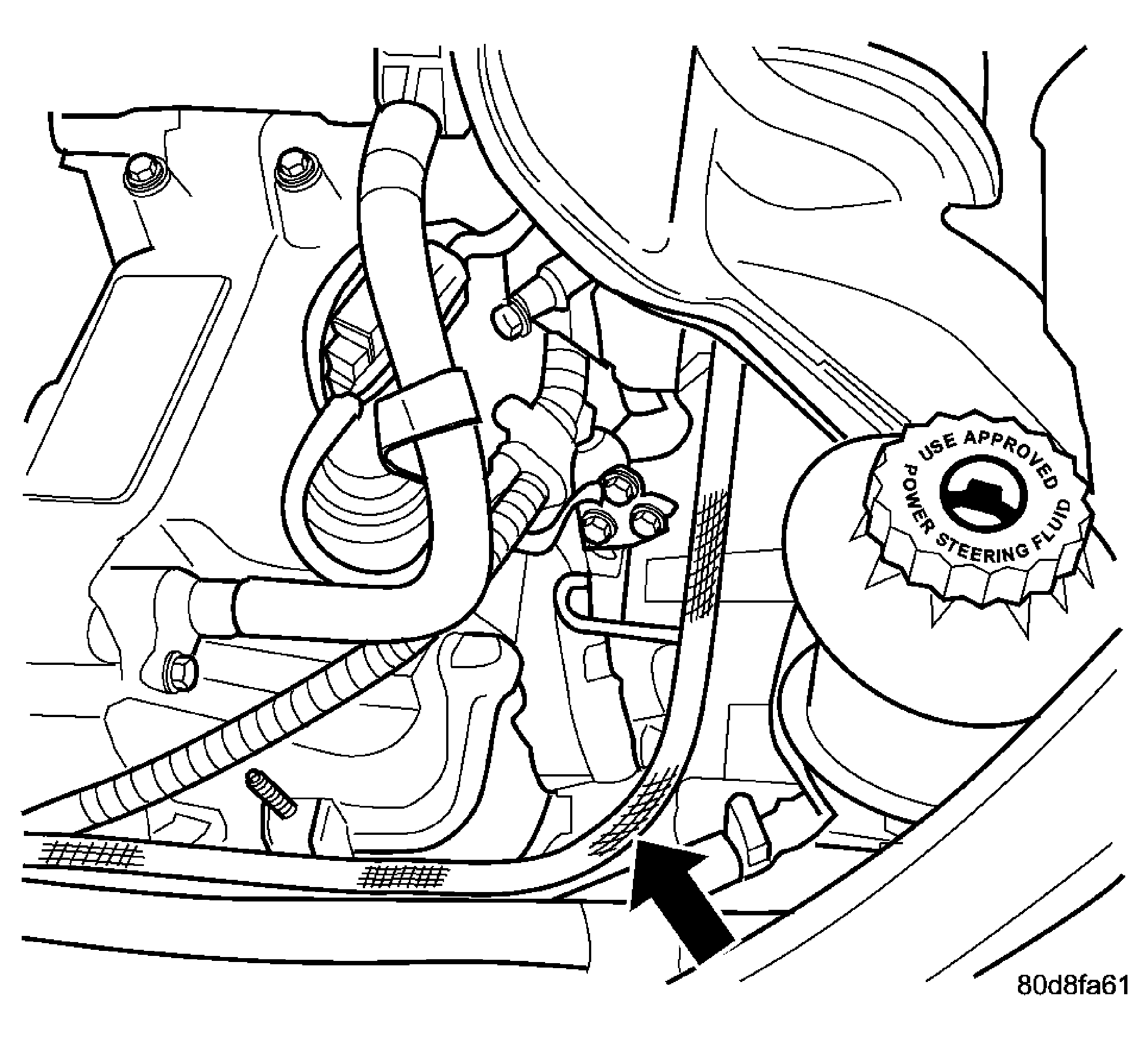

    Fig 2: Fuel Line
    GC0021643Courtesy of CHRYSLER LLC
  5. Remove the wiring harness from the fuel rail brackets.
  6. Remove the fuel line from the fuel rail.

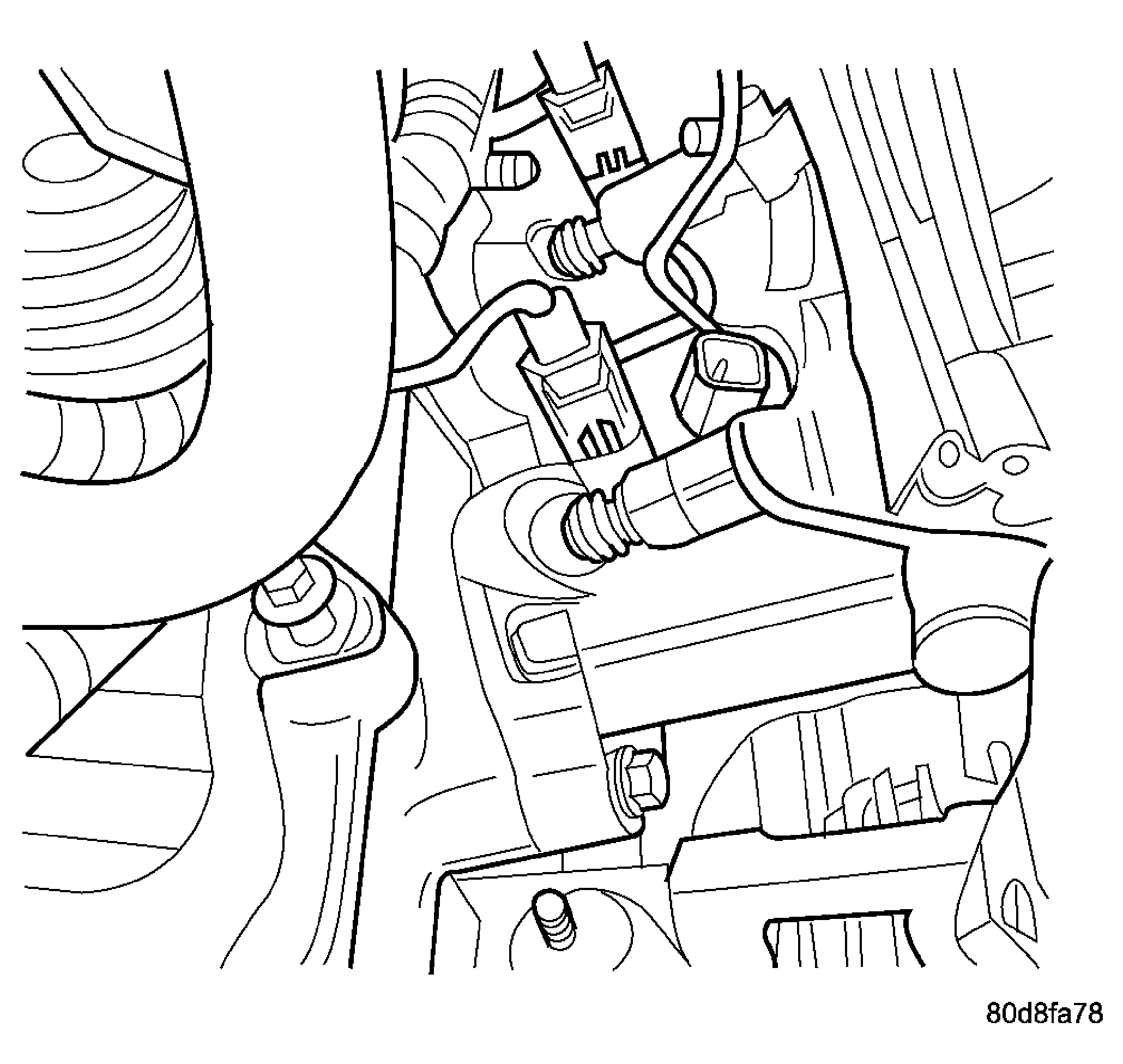

    Fig 3: Fuel Rail & Fuel Injector
    GC0021641Courtesy of CHRYSLER LLC
  7. Remove the 2 bolts to the fuel rail at the lower manifold.
  8. Remove the fuel rail
