Mass Air Flow (MAF) Sensor
WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

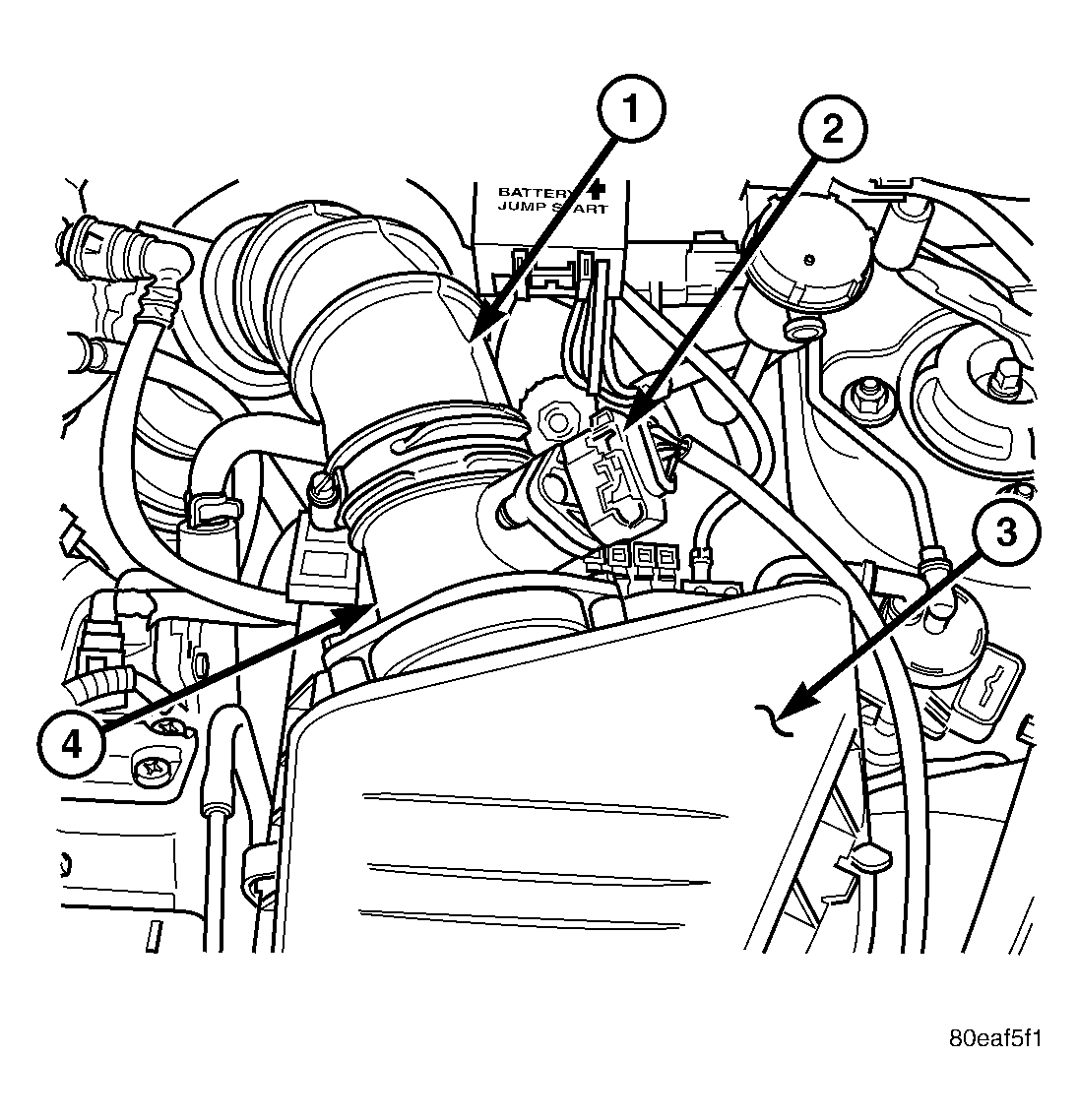

Courtesy of CHRYSLER LLC
| 1 - AIR CLEANER TO TURBOCHARGER HOSE |
| 2 - MAF SENSOR ELECTRICAL CONNECTOR |
| 3 - AIR CLEANER HOUSING |
| 4 - MAF SENSOR |
- Disconnect negative battery cable.
- Disconnect mass air flow (MAF) sensor (4) electrical connector. See Fig 1.
- Disconnect air cleaner to turbocharger hose (1). See Fig 1.
- Remove MAF (4) to air cleaner housing (3) retaining bolts and remove sensor. See Fig 1.
