Fuel Injector
WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

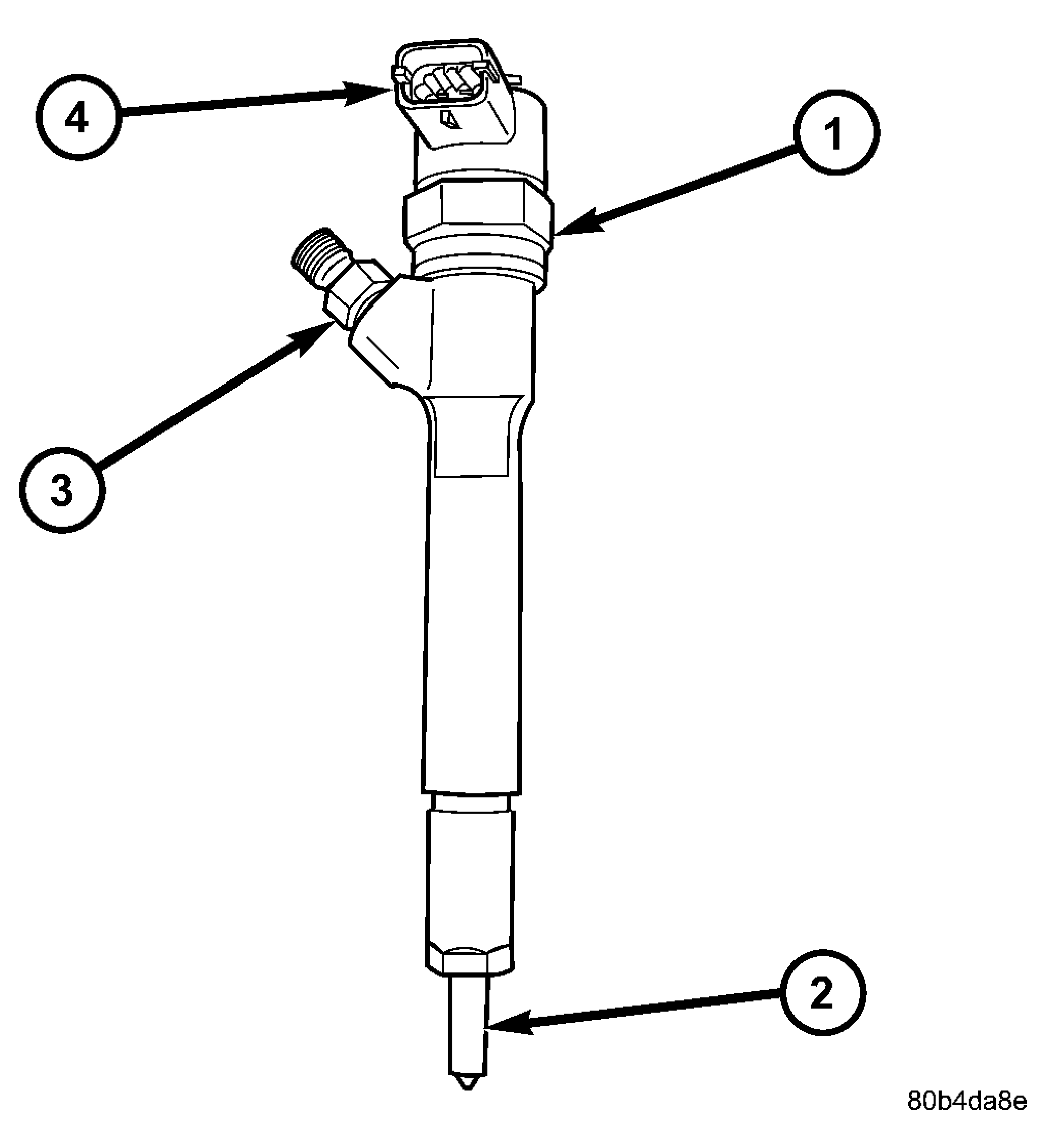

There are individual fuel injectors for all four cylinders. These fuel injectors are used to spray fuel into the combustion chamber. See Fig 1.
| 1 - FUEL INJECTOR |
| 2 - NOZZLE |
| 3 - FUEL INLET FITTING |
| 4 - ELECTRICAL CONNECTION |
