Fuel Tank

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

The fuel tank is made from High Density Polyethylene (HDPE) material with 2 permanently mounted vent valves and a replaceable fuel tank vent filter. Its main functions are for fuel storage and placement of the fuel pump module. See Fig 1.

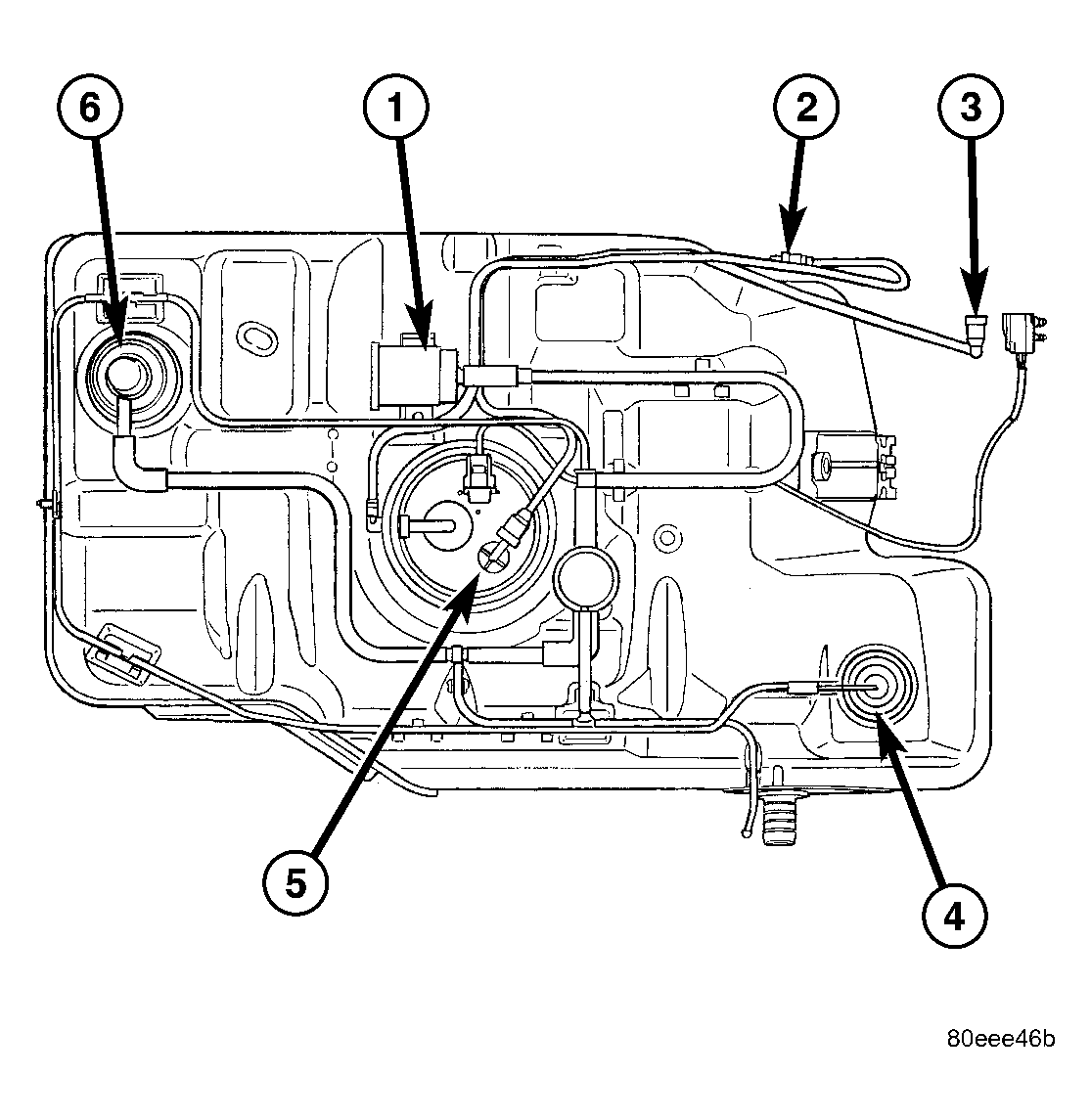

Fig 1: Fuel Tank

Courtesy of CHRYSLER LLC

1 - FUEL TANK VENT FILTER

2 - FUEL SUPPLY LINE

3 - FUEL RETURN LINE

4 - FUEL TANK VENT VALVE

5 - FUEL PUMP MODULE

6 - FUEL TANK FILL VENT VALVE
