Motor Will Not Operate All Switch Positions

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check for Totally Integrated Power Module (TIPM) Diagnostic Trouble Codes (DTC's). If present refer to the appropriate diagnostic information.

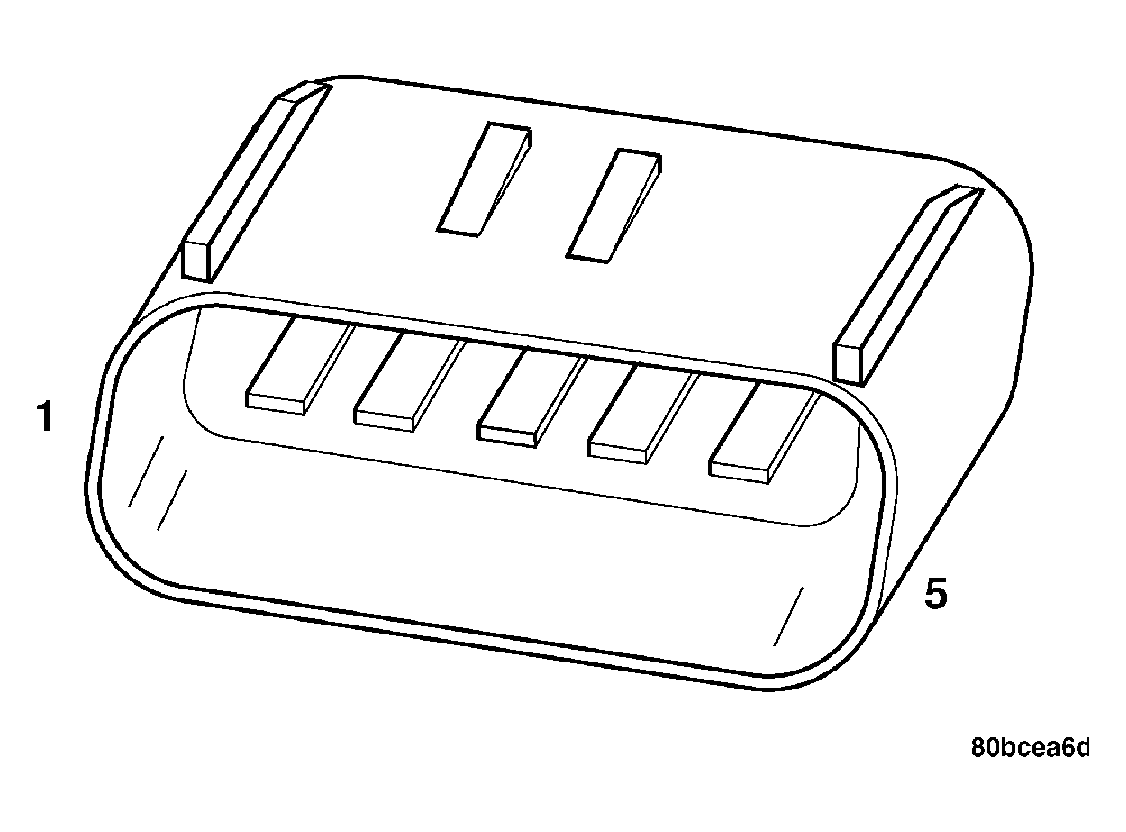

    Fig 1: Windshield Wiper Motor Connector
    GC0020029Courtesy of CHRYSLER LLC
  2. Disconnect motor harness connector.
  3. Check motor low speed. Using two jumper wires, connect one jumper wire between the battery positive terminal and terminal 5 of the motor connector. Connect the other jumper wire to the battery negative terminal and terminal 4 of the motor. Check motor high speed, connect the positive jumper wire to terminal 3 of the motor connector. Connect the negative jumper wire to terminal 4 of the motor.
    • If motor does not run in high or low speed go to step  4.
    • If motor does run, go to step  5.
  4. Using an ohmmeter, check for good ground at terminal 4 of the motor. If OK, replace motor. If not repair the ground circuit as necessary.
  5. With the scan tool, verify LIN and CAN bus data is present when right multi-function switch is activated.
