Wiper Arm Alignment - RHD

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Removing/Installing Front Wiper Arm
GC0021955Courtesy of CHRYSLER LLC
  1. Open hood.
  2. Using a trim stick (special tool #C-4755) or equivalent, gently pry up on the wiper arm nut cap and remove.
  3. Remove wiper arm retaining nut.
  4. Remove the arm from the pivot using a rocking motion while the arm is in an over/centered position.

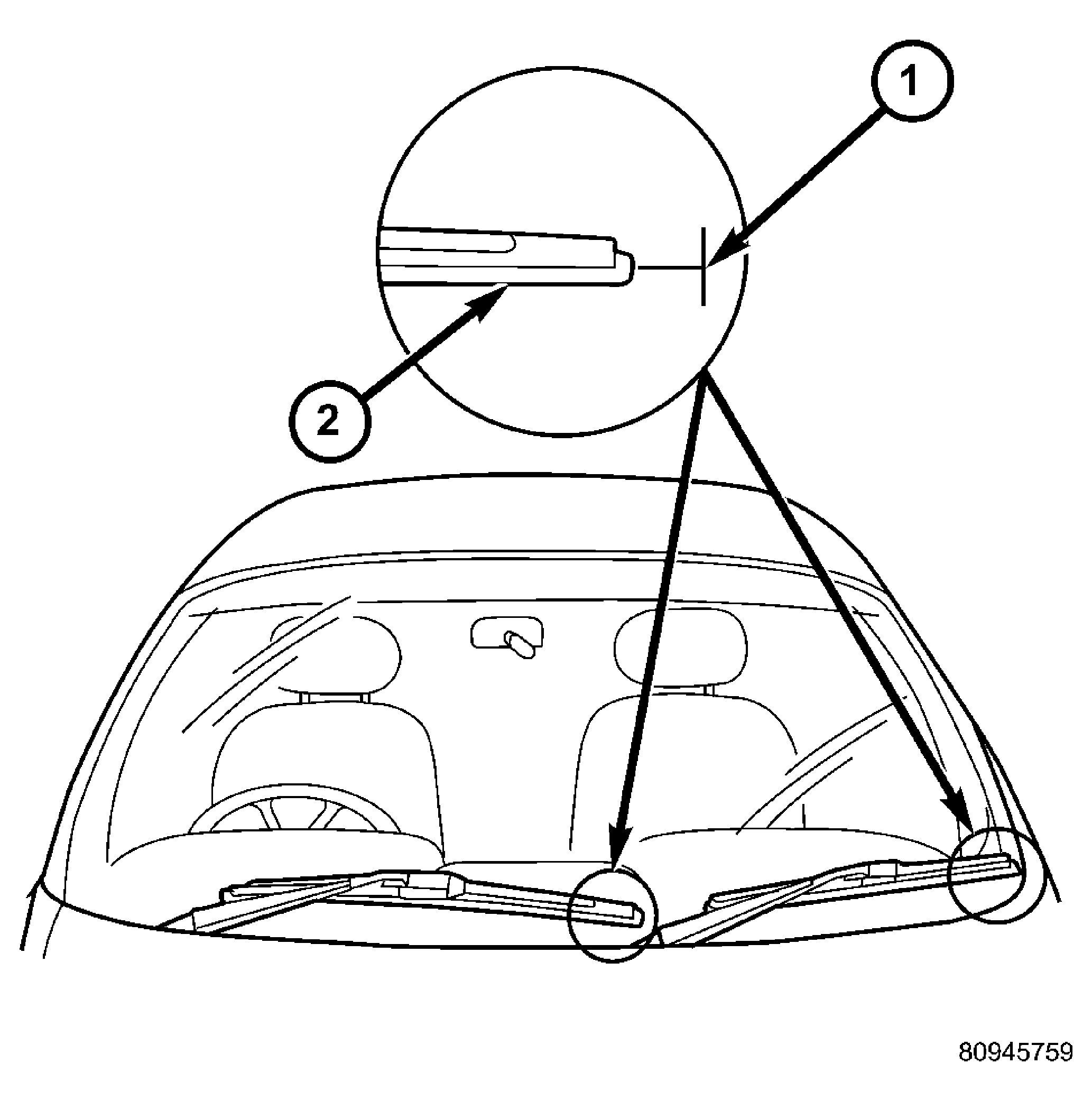

    Fig 2: Wiper Blade/Arm Park Lines - RHD
    GC0021957Courtesy of CHRYSLER LLC
  5. The wiper blade should be parked within the tolerance shown by the tick mark (1). The park line or tick mark, is on the windshield.
    NOTE: In the event that the wiper blade tip excessively strikes the cowl screen due to long term normal wear, reposition the wiper blade heel slightly above the park line. Make sure that the wipers are in the PARK position.
    Fig 3: Removing/Installing Front Wiper Arm
    GC0021955Courtesy of CHRYSLER LLC
  6. Place the arm on the pivot while the arm is in an over/centered position.
  7. Install the wiper arm retaining nut and torque to 21 N.m (190 in. lbs.).
  8. Install the wiper arm nut cap.
  9. Close hood.
  10. Verify vehicle and system operation.
